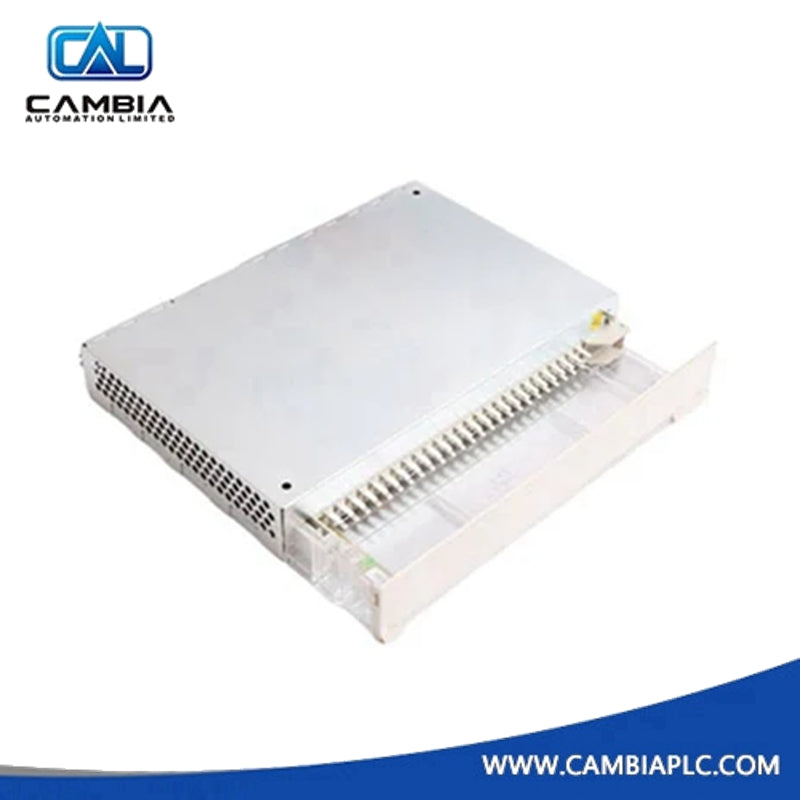

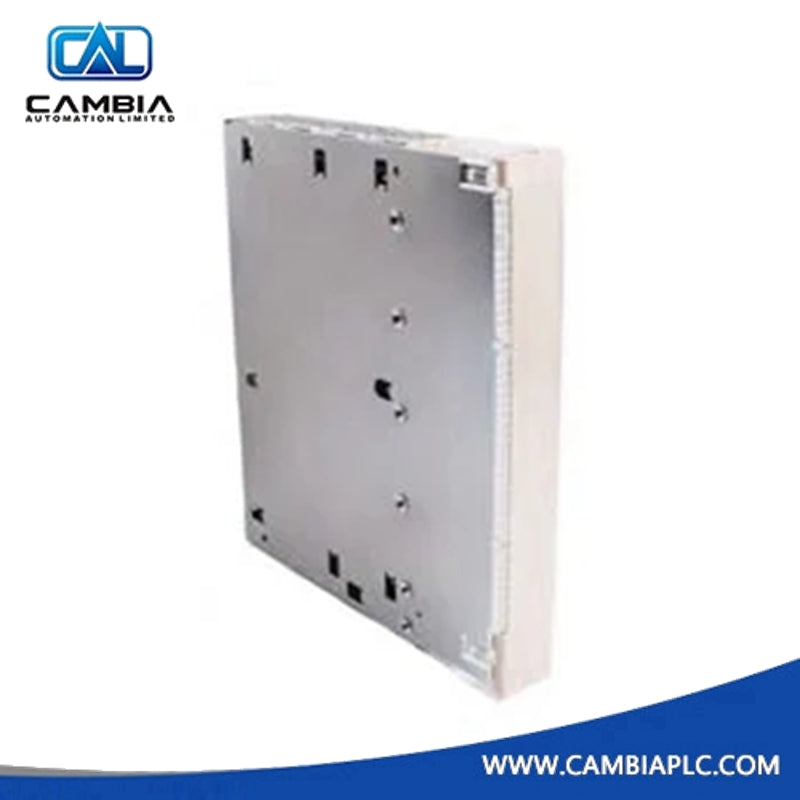

ABB 3BSE000566R1 AX670 Analog Mixed Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BSE000566R1 AX670
Product Type: Analog Mixed Module
Product Origin: Sweden
Payment: T/T
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 3BSE000566R1 AX670 is an Analog Mixed Module designed for use within the S600 I/O system. It is commonly integrated with Advant OCS (Open Control System) and Symphony Plus environments.
Key Technical Specifications
| Feature | Details |
|---|---|
| Product ID | 3BSE000566R1 |
| Type Designation | AX670 |
| I/O Type | Analog Mixed (Input & Output) |
| Number of Channels | 16 channels (typically configurable) |
| Module Series | S600 I/O / Advant Master |
| Dimensions (H × W × D) | 243 × 45 × 225 mm |
| Net Weight | Approx. 1.25 kg |
| Country of Origin | Sweden |
Functional Overview
As a mixed I/O module, the AX670 combines two key functions in a single compact unit:
Analog Inputs (AI)
-
Interfaces with field instruments such as pressure transmitters, flow meters, and temperature sensors
-
Converts analog signals (e.g., 4–20 mA or 0–10 V) into digital values for the controller
Analog Outputs (AO)
-
Transmits control signals from the PLC/DCS
-
Drives final control elements including control valves, actuators, and motor speed controllers
Installation and Configuration Notes
-
System Compatibility:
Primarily used with Advant Controller 400 series and Symphony Plus hardware. -
Addressing:
If the module is not detected, verify that the DIP switch settings on the module or mounting base correspond to the I/O configuration in the control software (e.g., Function Code 132). -
Maintenance:
The AX670 is commonly available as an Exchange (EXC) unit (EXC3BSE000566R1), allowing ABB to provide a refurbished replacement in exchange for the faulty module, minimizing downtime and maintenance costs.
Troubleshooting Common Issues
-
Missing I/O Module Error:
Typically caused by a mismatch between the physical DIP switch address (S1) and the configured software address. -
Status Byte Diagnostics:
Check status bytes 3 through 5 in the control module status.
A value of 03 in byte 3 usually indicates a communication failure with this specific module.
