ABB 3BS069275R1 PP882 Operator Panel

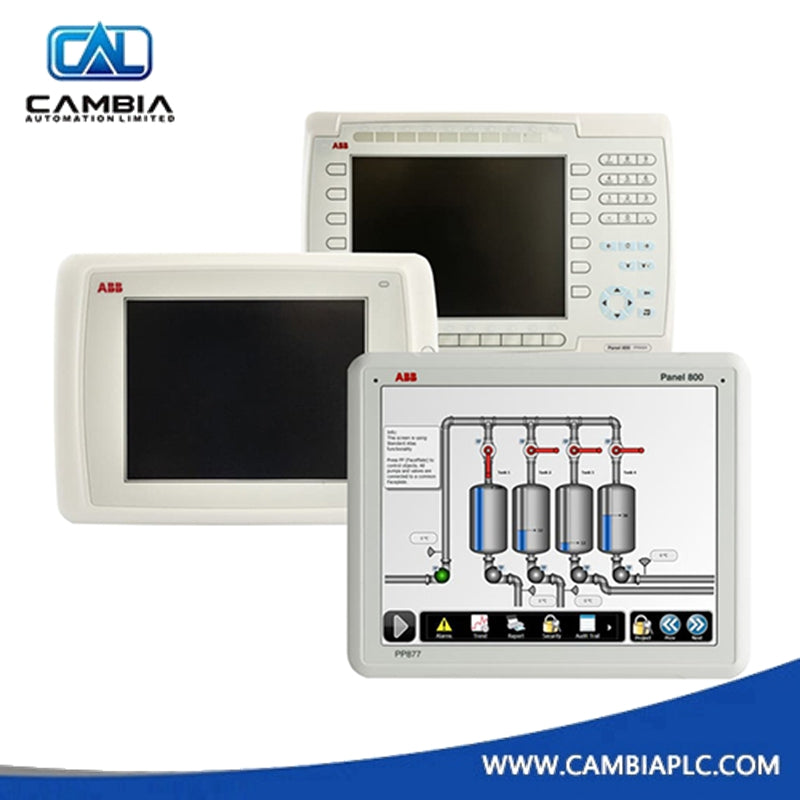

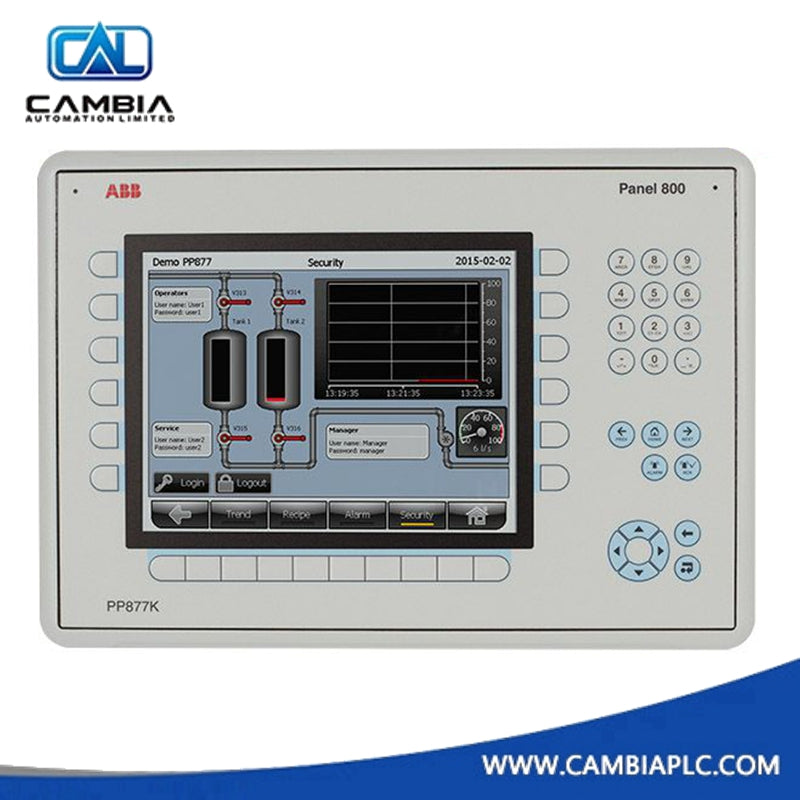

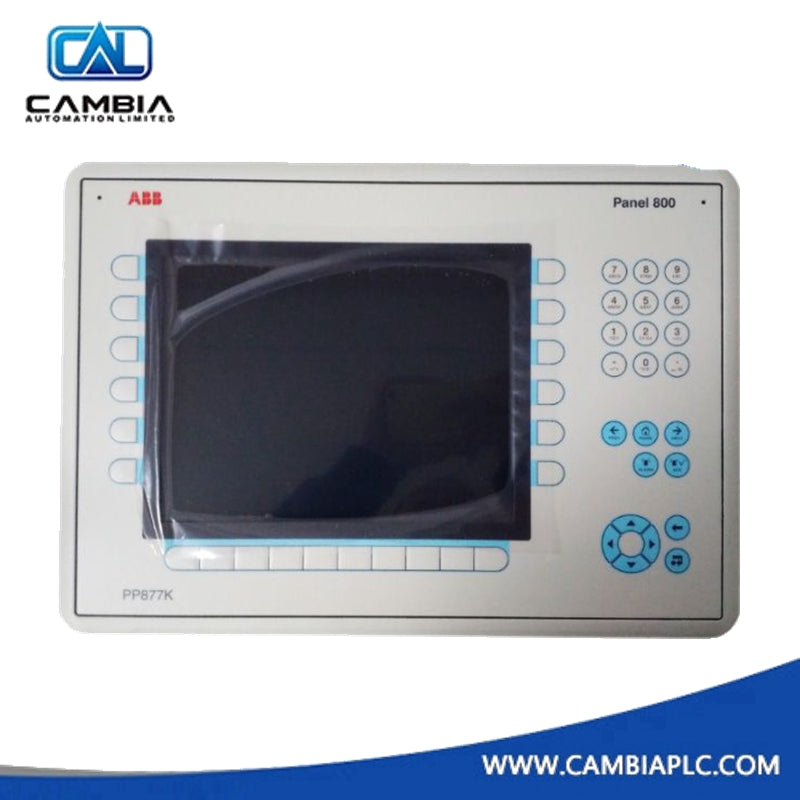

The ABB PP882 (3BSE069275R1) is a high-performance operator panel from the Panel 800 Version 6 series, designed for advanced process and equipment control in industrial environments. With enhanced functionality, processing power, and connectivity, it is suitable for demanding applications that require robust Human-Machine Interface (HMI) solutions.

Key Features

• 12.1" Display: TFT-LCD with 262k colors and LED backlight.

• Display Resolution: 1280 × 800 (16:10 aspect ratio).

• Brightness: 400 cd/m².

• Viewing Angles: 176° horizontal, 176° vertical.

• Touch Screen: Resistive touch, supports up to 1 million finger touch operations.

• Processor: Intel® Atom (1.1 GHz).

• Memory:

• 1 GB DDR2 main memory

• ≥1.4 GB application memory.

• External Storage: 1 × SD card slot (supports up to 2 GB, standard SD format).

• Real-Time Clock: Included.

Communication Interfaces

• Ethernet:

• 1 × 10/100/1000 Mbit/s

• 1 × 100 Mbit/s

• 2 built-in ports

• USB:

• 3 × USB 2.0 (max. 500 mA).

• Serial Ports:

• 2 combined ports (supports RS232, RS422/485).

Physical Specifications

• Mounting Options:

• Panel mount

• VESA 75 × 75.

• Dimensions (W×H×D): 340 mm × 242 mm × 79 mm.

• Cut-out Dimensions (W×H): 324 mm × 226 mm.

• Mounting Depth: 72 mm (including clearance).

• Weight: 2.6 kg.

• Frame Material:

• Powder-coated aluminum

• Front foil: Polyester Autotex EBA180L.

Electrical Specifications

• Power Supply: +24 VDC (18-32 VDC).

• Protection Rating:

• IP65 (front)

• IP20 (rear).

• Power Consumption: 22 W.

Environmental Conditions

• Operating Temperature: -10°C to +50°C.

• Relative Humidity: 5-85% (non-condensing).

• Storage Temperature: -20°C to +70°C.

Certifications

• CE

• UL 508

• DNV
