ABB 3BHL000510P0003 NMBA-01 Modbus Adapter Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BHL000510P0003 NMBA-01
Product Type: Modbus Adapter Module
Product Origin: Sweden
Payment: T/T
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

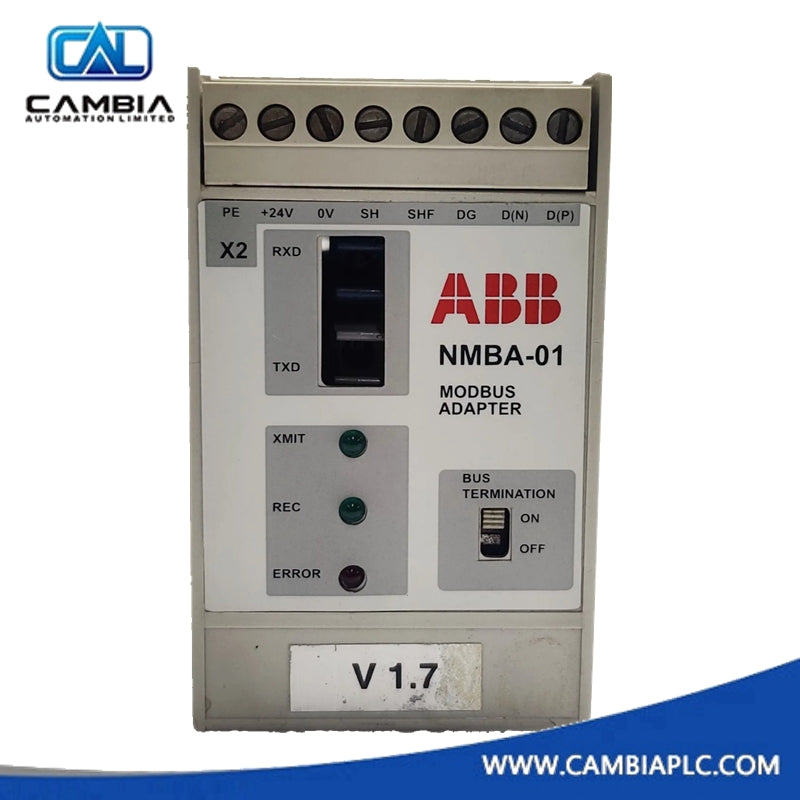

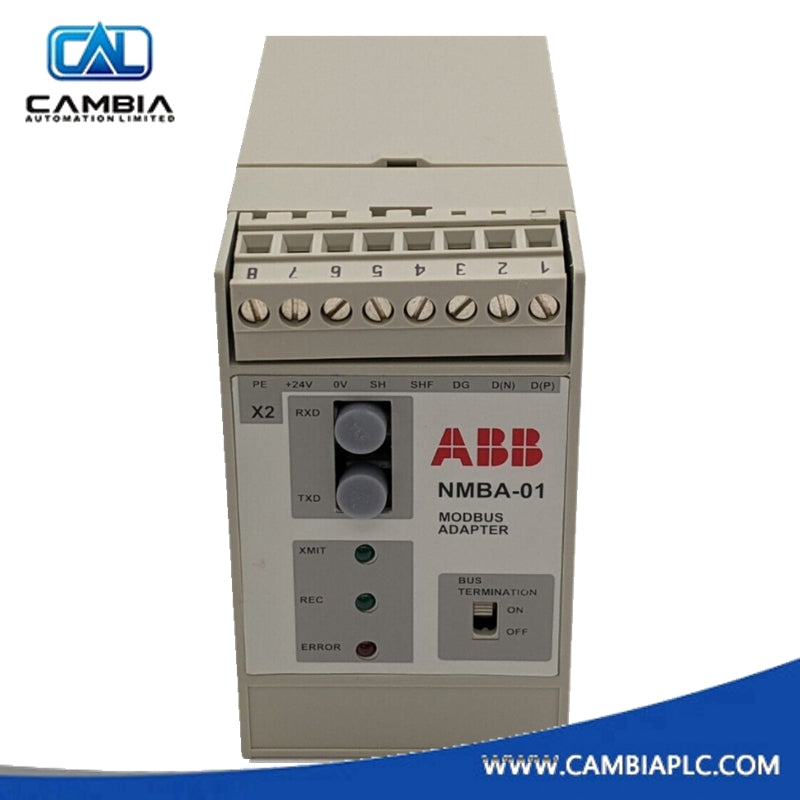

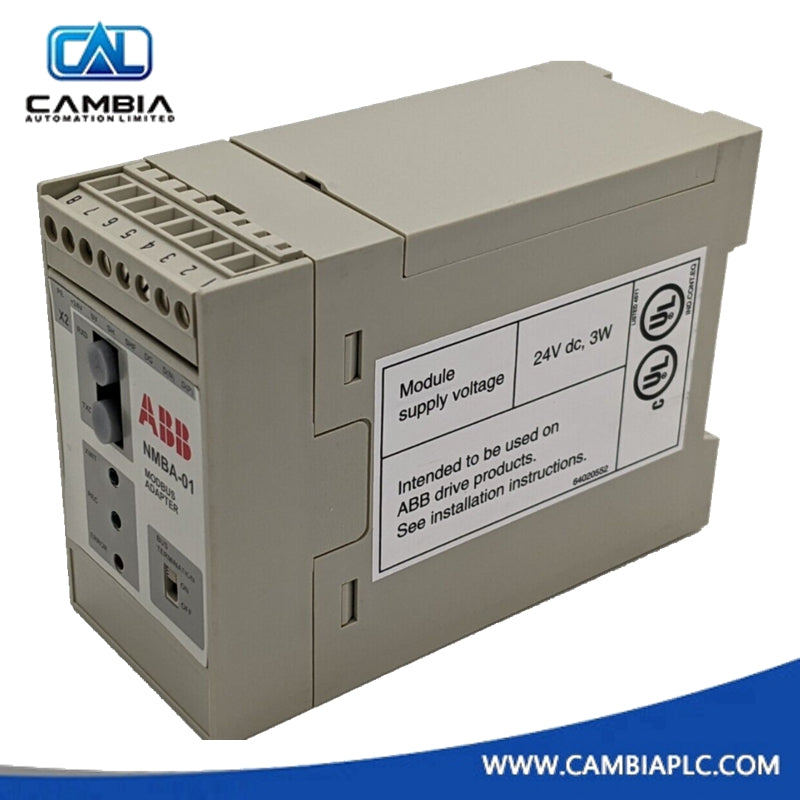

The ABB 3BHL000510P0003 (ABB Type Designation: NMBA-01) is a Modbus Adapter Module used to connect ABB industrial drives to a Modbus RTU serial communication network.
Key Technical Specifications
The NMBA-01 functions as a communication gateway, translating the drive’s internal DDCS (Distributed Drives Communication System) protocol into the standard Modbus RTU protocol.
| Feature | Specification |
|---|---|
| Product ID | 3BHL000510P0003 |
| ABB Type Designation | NMBA-01 |
| Communication Protocol | Modbus RTU (Slave) |
| Physical Interface | RS-485 (Terminal Block X2) |
| Drive Interface | Fiber Optic DDCS Link (V800 / V260 connectors) |
| Supply Voltage | 24 V DC (±10%) |
| Power Consumption | Max. 3 W |
| Mounting Method | DIN Rail (Standard 35 mm) |
Compatibility
The NMBA-01 is specifically designed for ABB’s legacy high-performance drive platforms and is commonly used in the following systems:
AC Drives
-
ACS 300
-
ACS 400
-
ACS 600
-
SingleDrive
-
MultiDrive
-
MotionControl
-
CraneDrive
DC Drives
-
DCS 400
-
DCS 500
-
DCS 600
Controllers
-
Advant Controller systems interfacing with the above drive families
Core Capabilities
Once installed, the NMBA-01 enables a master PLC or SCADA system to perform the following functions:
-
Drive Control:
Start/Stop commands and Run Enable control -
Reference Signals:
Transmission of speed or torque setpoints -
Monitoring:
Access to real-time status words, actual speed, current, and torque values -
Parameter Management:
Remote reading and modification of drive parameters -
Diagnostics:
Reading and resetting of drive fault messages
Diagnostic LEDs
The module includes front-panel LED indicators to support troubleshooting and system diagnostics:
-
+24V: Module power present
-
TXD / RXD: Active RS-485 Modbus communication
-
XMIT / REC: Fiber optic communication with the drive
-
ERROR: Communication failure or internal module fault
