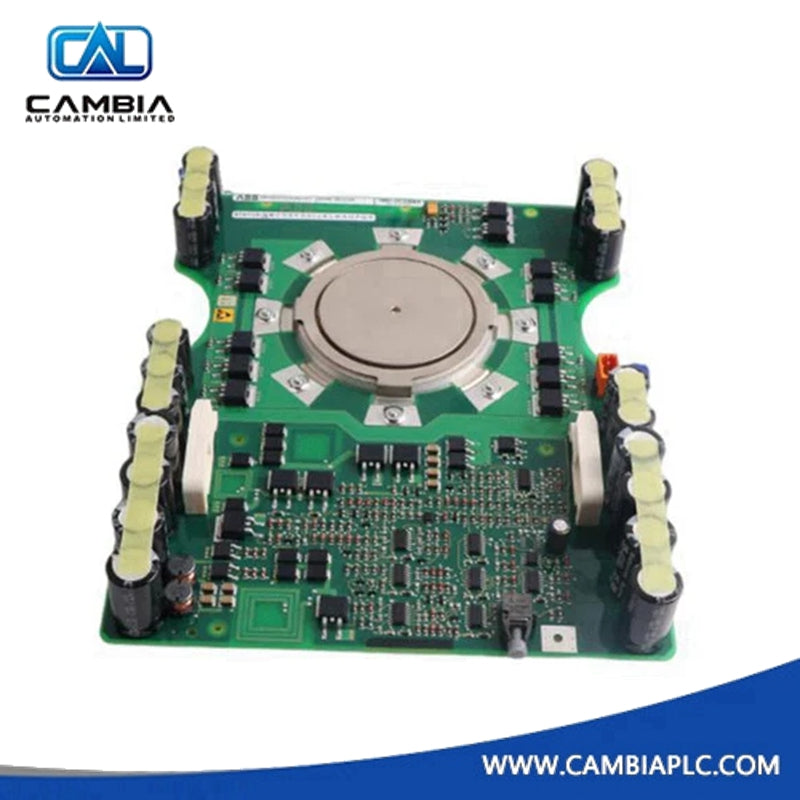

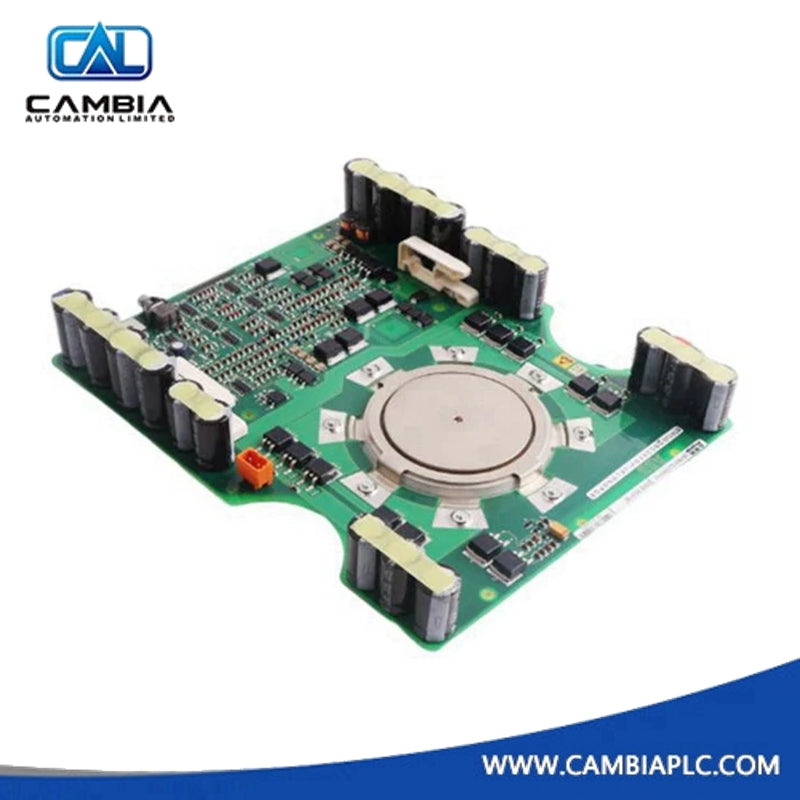

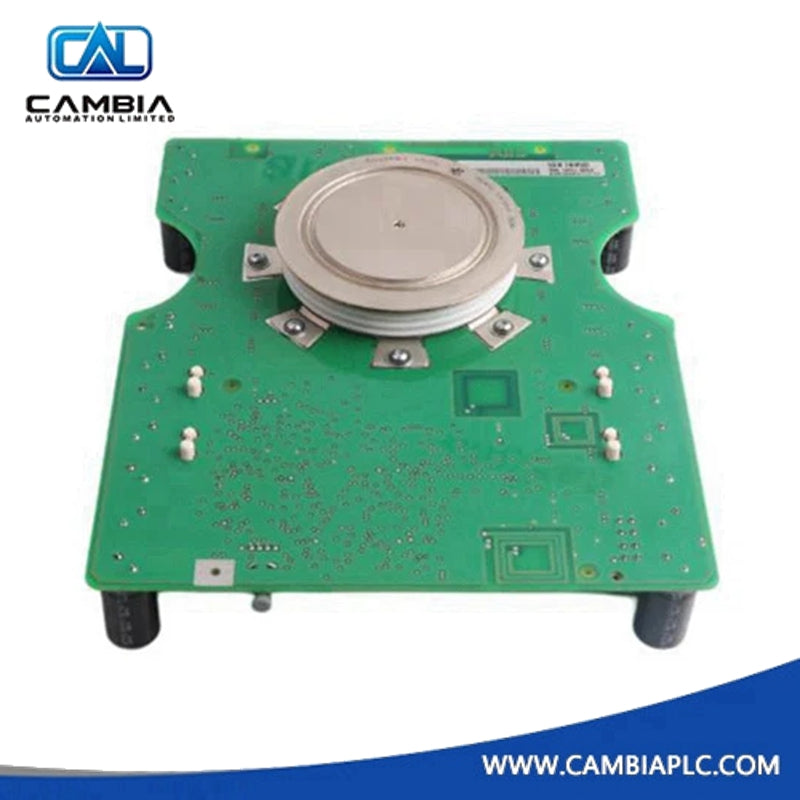

ABB 3BHL000385P0101 5SHX0845F001 IGBT Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BHL000385P0101 5SHX0845F001
Product Type: IGBT Module
Product Origin: Sweden
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Manufacturer: ABB
Product Number: 3BHL000385P0101 / 5SHX0845F0001
Product Type: IGCT Module (Insulated Gate Commutated Thyristor)
Country of Origin: Switzerland
Weight: 3,000 g (3 kg)
Product Overview
The ABB 3BHL000385P0101 / 5SHX0845F0001 IGCT Module is a high-performance power semiconductor designed for high-voltage, megawatt-level applications. Engineered for demanding industrial environments, this module combines a robust mechanical design with integrated control features to ensure reliable operation, high efficiency, and long service life.
Technical Specifications
Product Type:
-
IGCT (Insulated Gate Commutated Thyristor) Module
Manufacturer:
-
ABB (Manufactured in Sweden)
Electrical Characteristics:
-
Operating Voltage: 5 kV
-
Continuous Current: Up to 1150 A
Mechanical Specifications:
-
Dimensions: 12.8 × 11.5 × 6.5 cm
-
Weight: 3 kg
-
Compact Design: 51 mm width for space-efficient installation
Gate Drive:
-
Dedicated gate drive circuit for simplified system integration
Protection Features:
-
Comprehensive protection against faults and overload conditions
Applications:
-
Industrial power control systems
-
High-efficiency switching applications
