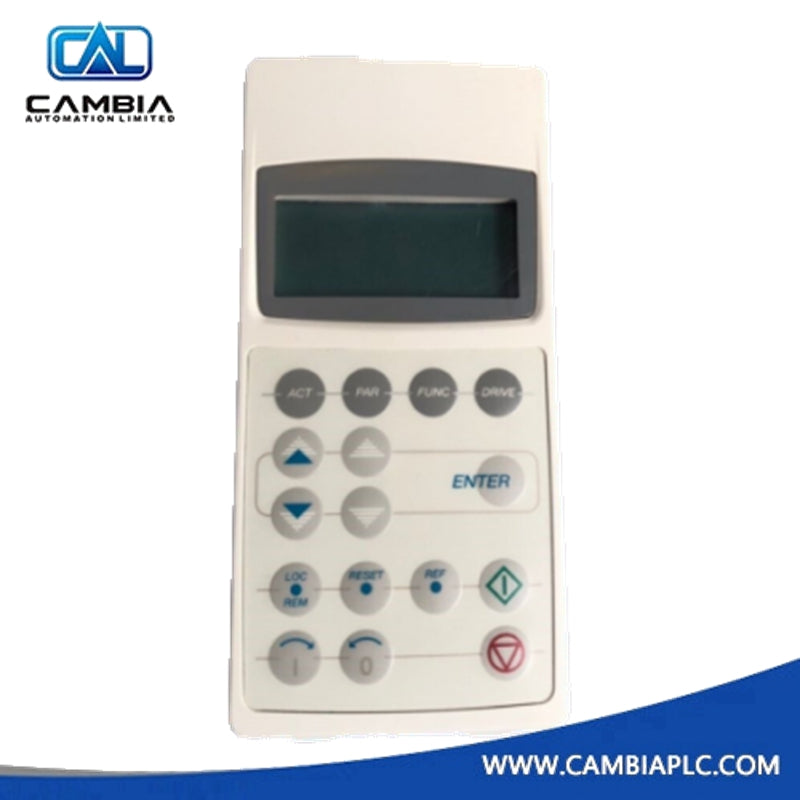

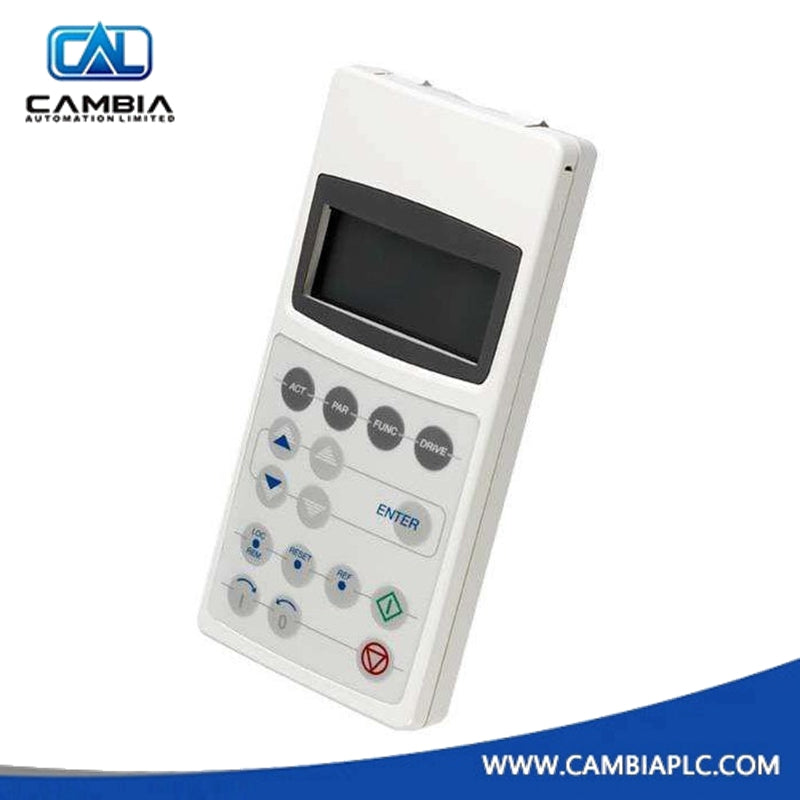

ABB 3BHB015055R0001 CDP312R Control Panel
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BHB015055R0001 CDP312R
Product Type: Control Panel
Product Origin: Sweden
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB CDP-312R (Product ID: 3ABD64378660) serves as the primary operational gateway for the classic ACS600 series of variable speed drives. This robust control panel provides engineers with a localized interface to manage complex motor parameters and monitor real-time system health. Consequently, the unit simplifies the commissioning process by offering clear feedback and an intuitive keypad layout for rapid data entry. Its slim profile and lightweight 0.5 kg design ensure it integrates seamlessly into the drive's front face or a cabinet door. Therefore, this panel remains a vital component for facilities seeking to maintain the high performance and longevity of their ACS600 infrastructure.
Technical Specifications
| Parameter | Specification Details |
| Brand | ABB |
| Model Alias | CDP-312R |
| Product ID | 3ABD64378660 |
| Application Range | ACS600 Option Frame Sizes |
| Net Weight | 0.5 kg |
| Dimensions (H x W x D) | 170 mm x 80 mm x 21 mm |
| Customs Tariff Number | 85049099 |
| Product Type | Digital Operator Interface / Control Panel |
Core Functional Highlights
-
Precision Parameter Control: Users can modify critical motor control variables instantly to match the specific requirements of the industrial process.
-
Diagnostic Visibility: The alphanumeric display provides detailed fault codes and alarm descriptions, which significantly reduces the mean time to repair.
-
Ergonomic Keypad Design: Tactile buttons ensure reliable operation even when technicians wear industrial gloves, preventing input errors during critical adjustments.
-
Local/Remote Switching: Operators can easily toggle between local control for maintenance and remote control for automated PLC-driven factory operations.
