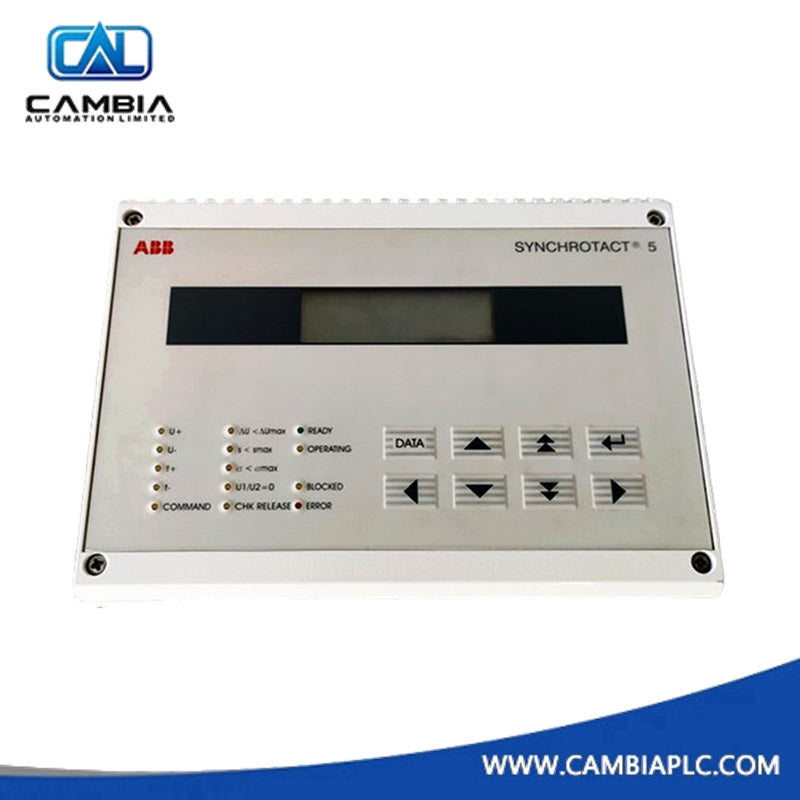

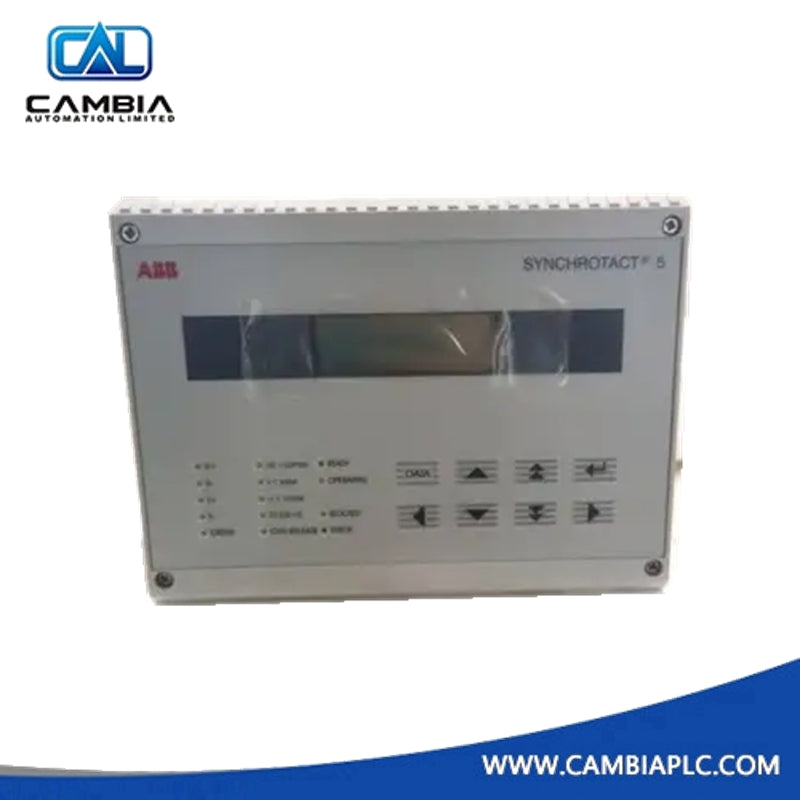

ABB 3BHB006715R0217 Automatic Synchronizing Unit

In stock, ready to ship

  • Manufacturer: ABB

  • Product No.: 3BHB006715R0217

  • Product Type: Automatic Synchronizing Unit

  • Product Origin: Sweden

  • Payment: T/T

  • Weight: 760g

  • Shipping port: Xiamen

  • Warranty: 12 months

ABB 3BHB006715R0217 Automatic Synchronizing Unit

The ABB 3BHB006715R0217 Automatic Synchronizing Unit is a high-performance solution designed to manage the synchronization of generators in power systems. Built to meet the stringent demands of industrial applications, this synchronizing unit ensures seamless integration of backup generators with the grid or other power sources. It helps prevent phase mismatches, ensuring that your power system operates safely and efficiently, avoiding potential damage to critical equipment.

Key Features & Benefits

  • Accurate Synchronization: Ensures that generators are synchronized accurately with power systems, providing smooth transitions and reducing the risk of operational failures.

  • Wide Input Range: Supports a broad input range for voltage and frequency, making it adaptable to a wide variety of systems and geographical requirements.

  • Fast Paralleling: Offers quick synchronization with adjustable paralleling time (0–1 second), which helps minimize downtime during critical power transitions.

  • Environmentally Robust: With an ambient temperature tolerance from +5°C to +70°C, this unit is designed to perform reliably in a wide range of industrial conditions.

  • Ease of Use: The automatic synchronization process simplifies generator integration, reducing the need for manual interventions and improving overall system efficiency.

Technical Specifications

Electrical Characteristics

  • Auxiliary Voltage AC/DC: 24 - 250 V DC / 100 - 230 V AC

  • Input Signals:

    • Measuring Inputs (U1, U2): Nominal voltage range of 50 to 130 VAC

    • Permissible Voltage Range: 0 to 1.3 × Un

    • Nominal Frequency: 16 ²/³, 50, 60 Hz

    • Frequency Input: 10 - 100 Hz

Measuring Range

  • Voltage (U1, U2): 0 - 1.3 V

  • Angle Matching (α): –179° to 180°

  • Slip (s): 0 - 50 %

  • Acceleration (ds/dt): 0 - 10 %

  • Paralleling Time (t ON): 0 - 1 second

Environmental Characteristics

  • Ambient Temperature: +5°C to +70°C

  • Protection Rating: Designed for reliable operation in various environments, ensuring protection against dust and water ingress.

Compliance & Certifications

  • Customs Tariff Number: 85437000

  • WEEE Category: Not in WEEE Scope

  • Made to Order: No

  • Minimum Order Quantity: 1 piece
