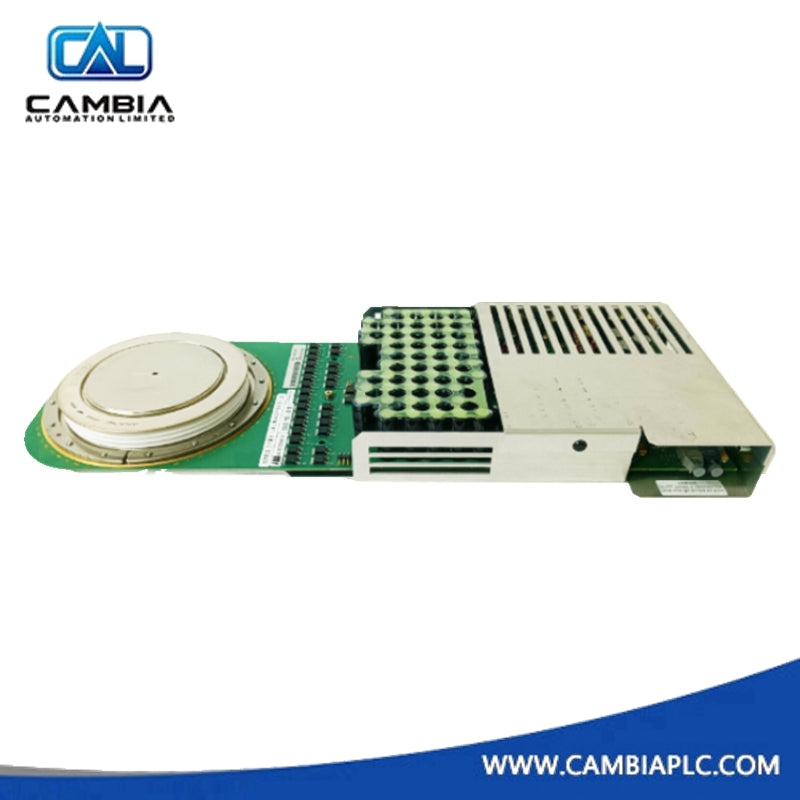

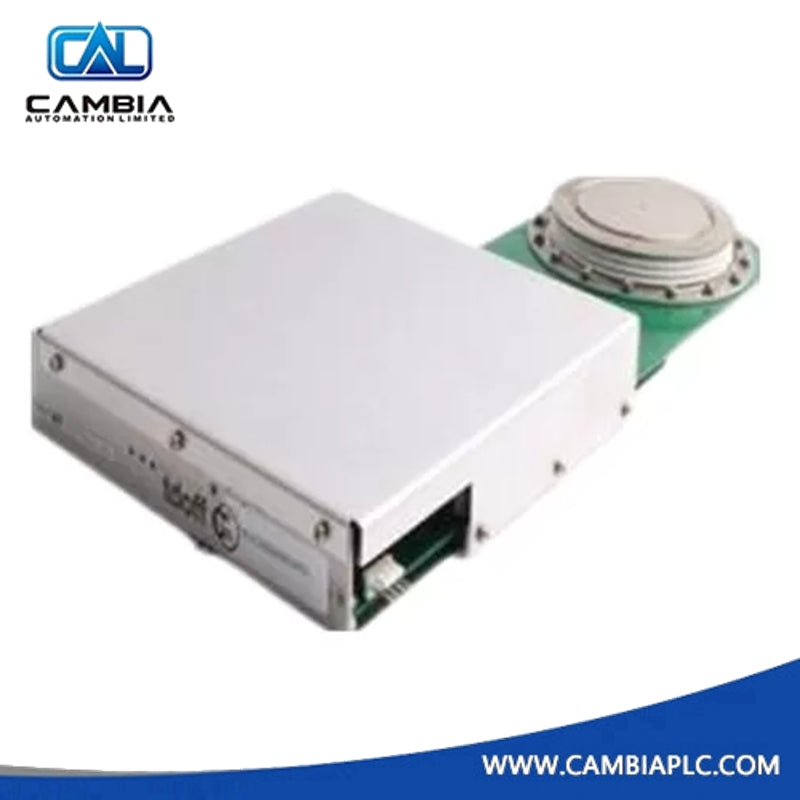

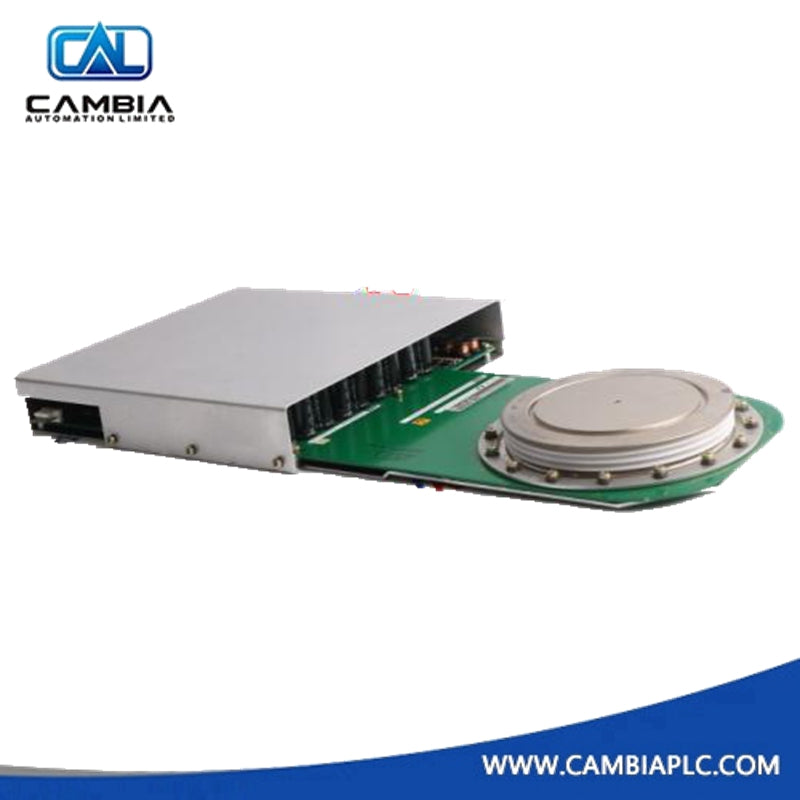

ABB 3BHB004693R0001 IGCT Module

The ABB 3BHB004693R0001 IGCT (Integrated Gate-Commutated Thyristor) Module is an advanced power electronic component used in high-efficiency industrial applications. Designed for demanding power control systems, the IGCT module ensures superior performance, reliability, and operational flexibility in harsh environments. This module is a key component in power electronics for industries such as energy, transportation, and manufacturing, where high power handling and fast switching are critical.

Functional Highlights

• High Efficiency: The IGCT module offers exceptional efficiency in power conversion and control, significantly reducing energy losses.

• Fast Switching: With rapid switching capabilities, it supports fast dynamic response in high-performance industrial control applications.

• Robust Construction: Built to withstand extreme conditions, it ensures reliable operation in challenging environments, including high temperatures and electrical stress.

• Superior Protection Features: Includes built-in protection against overvoltage, overcurrent, and thermal overload, enhancing system longevity and safety.

• Scalable Design: The module is designed for scalability, offering flexibility to integrate into various system sizes and power configurations.

Technical Data

• Model Number: 3BHB004693R0001

• Type: IGCT Module

• Voltage Rating: 2.5 kV

• Current Rating: 5000 A

• Switching Frequency: Up to 2 kHz

• Power Rating: 5 MW

• Thermal Resistance: 0.05 K/W

• Mounting Type: Press-pack module

• Coolant Type: Forced air or water cooling

• Insulation Type: Isolated

• Operating Temperature Range: -40°C to +125°C

• Weight: 3.5 kg

• Protection Features: Overcurrent, Overvoltage, Thermal Protection

• Compliance: UL, CE, RoHS compliant

FAQ

1. What is the voltage and current rating of the ABB 3BHB004693R0001 IGCT Module?

• The voltage rating is 2.5 kV, and the current rating is 5000 A, making it suitable for high-power applications.

2. What is the switching frequency of the IGCT module?

• The module supports switching frequencies of up to 2 kHz, enabling rapid response in dynamic control systems.

3. Can the ABB 3BHB004693R0001 be used in extreme temperatures?

• Yes, the module operates within a temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments.
