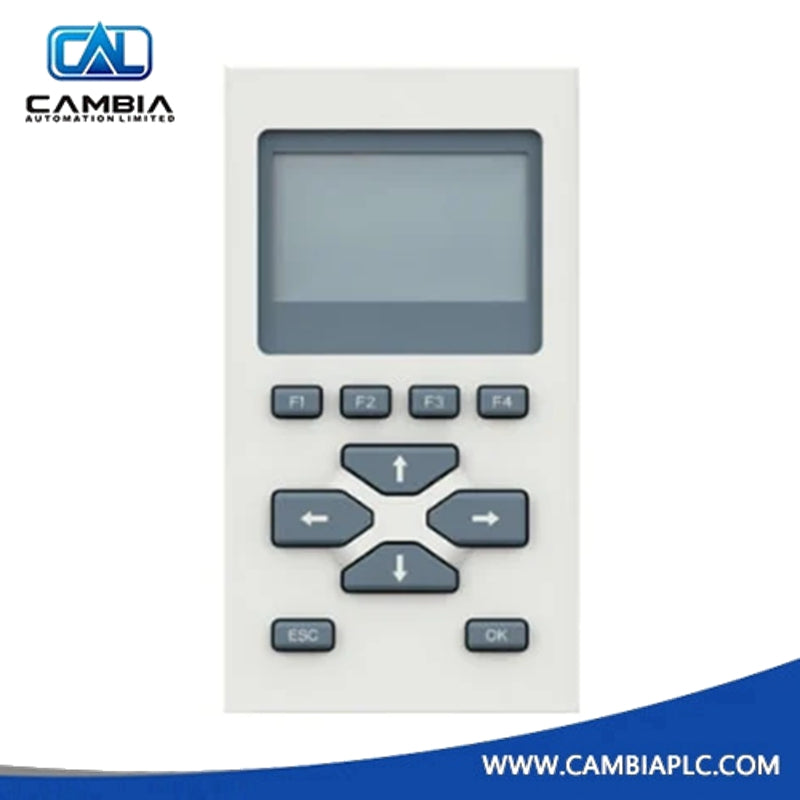

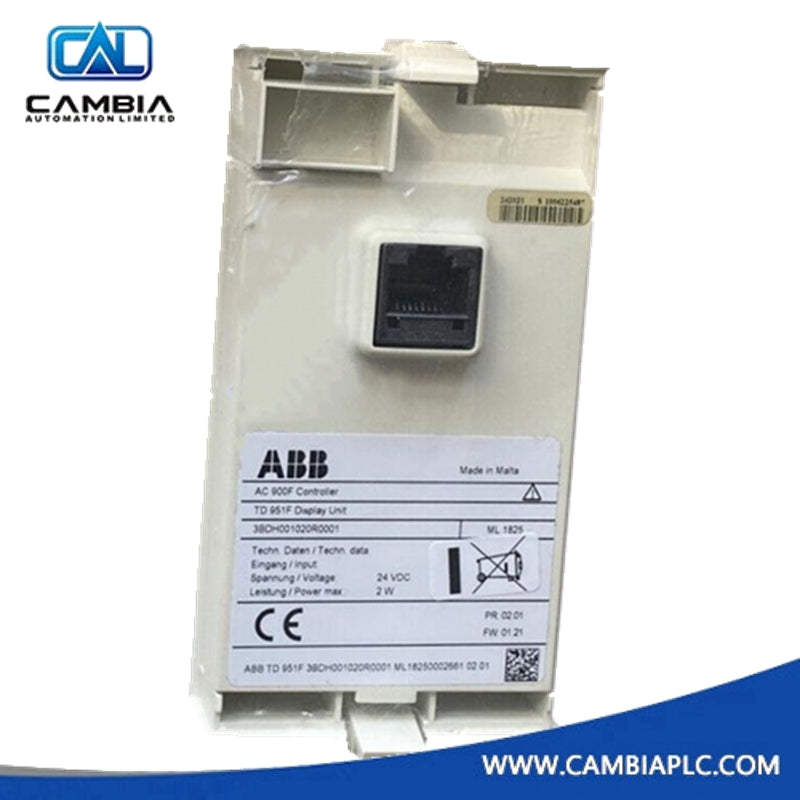

ABB 3BDH001020R0001 TD951F Display Unit

The ABB TD 951F Display Unit is a high-quality accessory designed specifically for the AC 900F Controller. Engineered for industrial automation environments, this display unit offers a compact and efficient interface for monitoring and controlling systems. With its clear 1.9-inch screen, the TD 951F enables quick and easy interaction with the AC 900F, providing critical information and status updates in real-time. Whether for use in manufacturing, process control, or automation systems, this display unit offers seamless integration and reliable performance.

Functional Highlights:

• Compact Design: The TD 951F features a slim profile and a compact size, with a depth of just 22 mm, making it ideal for tight spaces or applications where space is limited.

• Clear and Crisp Display: Equipped with a 1.9-inch screen, this display unit provides clear visibility of key data and system statuses, ensuring that operators can quickly monitor the system.

• User-Friendly Interface: Designed for easy operation, the TD 951F offers intuitive navigation, allowing users to interact effortlessly with the connected AC 900F Controller.

• Reliable Performance: Built with robust materials and high-quality components, the TD 951F is engineered for long-lasting reliability in industrial settings, ensuring optimal performance over time.

• Energy-Efficient: The display unit consumes minimal power, helping to keep operational costs low while maintaining high functionality.

Technical Specifications:

• Product ID: 3BDH001020R0001

• ABB Type Designation: TD 951F

• Catalog Description: TD 951F Display Unit

• Product Type: Control System Accessory

• Screen Size: 1.9 inches

• Dimensions:

• Depth/Length: 22 mm

• Height: 110 mm

• Width: 58 mm

• Weight: 0.09 kg

• Environmental Compliance:

• WEEE Category: Category 5 (Small Equipment with no external dimension exceeding 50 cm)

• SCIP Status: No SVHC present in the product

Typical Applications:

The ABB TD 951F Display Unit is designed for use in a range of industrial automation applications, including:

• Manufacturing Automation: For monitoring and controlling production lines, assembly systems, and robotic processes.

• Process Control: Ideal for industries requiring real-time system monitoring, such as food processing, pharmaceuticals, and chemical plants.

• Building Automation: Perfect for controlling building systems such as lighting, HVAC, and security.

• Energy Management: Used in energy monitoring and distribution systems to display real-time data and performance metrics.

Support & Maintenance:

ABB provides full support for the TD 951F Display Unit, ensuring that it continues to function optimally over its lifecycle. Regular maintenance and updates are recommended to maintain seamless integration with the AC 900F Controller. ABB’s technical support team is available for troubleshooting, system integration, and any questions regarding the unit's operation.
