ABB 3BDH000734R1 Open Loop Control

In stock, ready to ship

  • Manufacturer: ABB

  • Product No.: 3BDH000734R1

  • Product Type: Open Loop Control

  • Product Origin: USA

  • Payment: T/T

  • Weight: 760g

  • Shipping port: Xiamen

  • Warranty: 12 months

ABB 3BDH000734R1 Open Loop Control

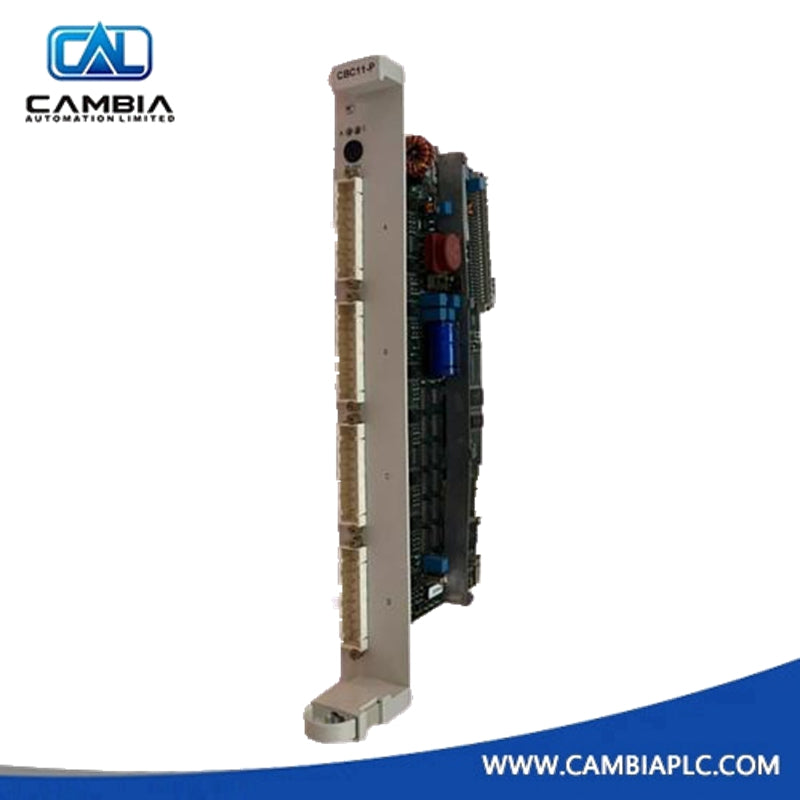

The ABB 3BDH000734R1 CBC 11-P Open Loop Control Module is designed for industrial automation systems where precise control of outputs and reliable signal processing are required. This module features a versatile design, offering 7 or 14 input/output channels with galvanic isolation per group, ensuring system stability and protection against electrical interference. The CBC 11-P supports a range of industrial applications, including motor drives, solenoid actuators, and coupling relay-control for enhanced flexibility. Additionally, the module includes a transmitter power supply, ensuring continuous operation of connected devices. Its compact and reliable design makes it ideal for control systems in a wide variety of industries.

Functional Highlights:

  • Multiple Channel Options: Choose between 7 or 14 input/output channels to meet the specific needs of your application.

  • Galvanic Isolation: Offers galvanic isolation per group, ensuring robust protection and minimizing signal interference.

  • Relay Control: Supports coupling relay-control for enhanced system integration and performance.

  • Power Supply for Transmitters: Provides reliable transmitter power supply, ensuring stable operation for connected devices.

  • Motor Drive and Actuator Control: Perfect for controlling motor drives and solenoid actuators, making it ideal for automation and control applications.

Technical Specifications:

  • Product ID: 3BDH000734R1

  • ABB Type Designation: CBC 11-P

  • Catalog Description: CBC 11-P Open Loop Control Module

  • Number of Input Channels: 48

  • Number of Output Channels: 36

  • Channel Type: Digital Input/Output (DX)

  • Galvanic Isolation: Per group (for each channel)

  • Control Type: Coupling relay-control

  • Transmitter Power Supply: Yes

  • Motor Drive Control: Yes

  • Solenoid Actuator Control: Yes

  • Required Accessories: 4 pcs of CI 100/101, Cable Clamp

  • Dimensions:

    • Depth/Length: 204 mm

    • Height: 340 mm

    • Width: 45 mm

  • Weight: 0.69 kg

  • Environmental Compliance: RoHS Compliant (EU Directive 2011/65/EU)

  • WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)

  • Batteries: 0

  • SCIP: c524f9d5-f28d-4787-a287-4c600fe240d2 (Germany)

Typical Applications:

The CBC 11-P Open Loop Control Module is designed for a wide variety of applications in industrial automation, where control, monitoring, and signal processing are key requirements. It is particularly suitable for:

  • Motor and Actuator Control: The module is ideal for controlling motor drives and solenoid actuators in automated systems, ensuring precise and reliable performance.

  • Process Control Systems: Used in systems requiring accurate open-loop control, such as chemical processing, assembly lines, and conveyor systems.

  • Relay-Control Applications: Perfect for coupling relay-control, enabling efficient switching and signaling between devices and systems.

  • Industrial Automation: Suitable for a wide range of industrial control applications, including machinery, equipment, and building automation systems.
