ABB 3BDH000733R1 Binary Output Module

In stock, ready to ship

  • Manufacturer: ABB

  • Product No.: 3BDH000733R1

  • Product Type: Binary Output Module

  • Product Origin: USA

  • Payment: T/T

  • Weight: 760g

  • Shipping port: Xiamen

  • Warranty: 12 months

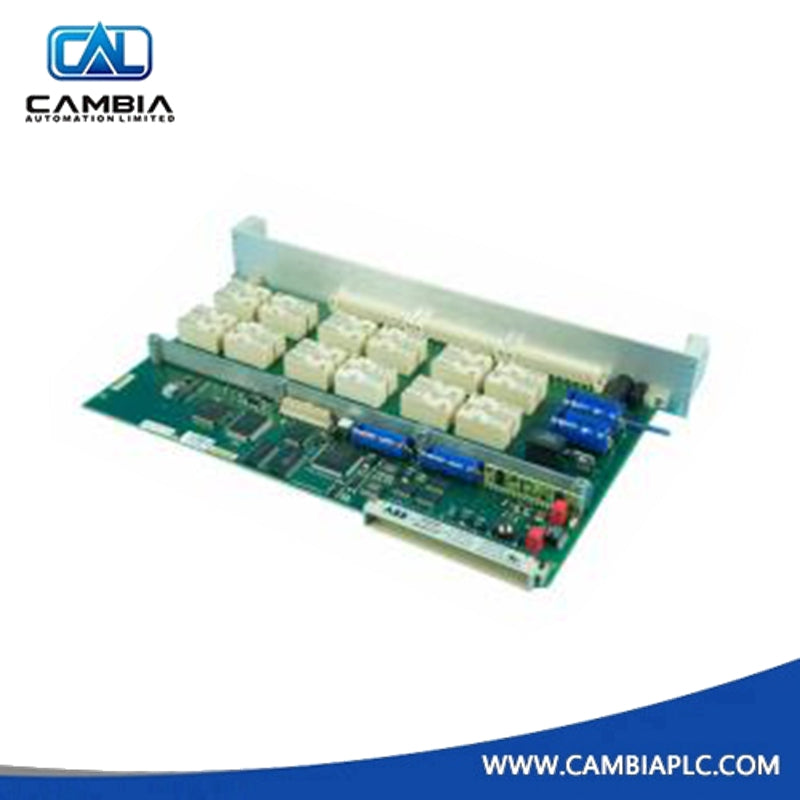

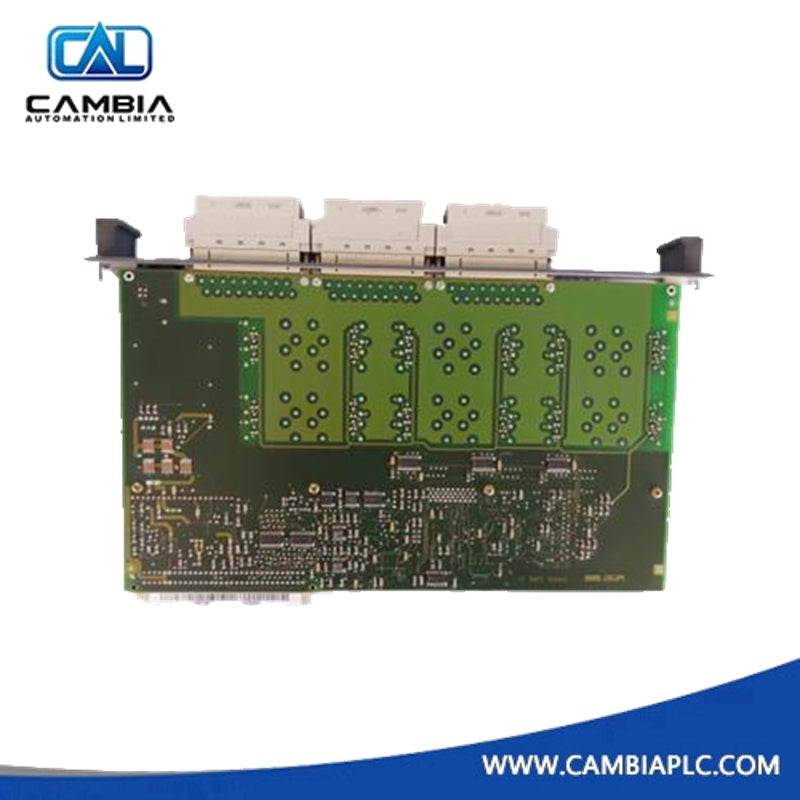

ABB 3BDH000733R1 Binary Output Module

The ABB 3BDH000733R1 CBO 10-P Binary Output Module is a high-performance solution designed for industrial automation systems requiring efficient and reliable binary output handling. Featuring 24 output channels, this module supports a wide range of voltages, from 10V to 60V AC/DC, with a 1 A output per channel. The potential-free contacts ensure that the module can be integrated into a variety of control systems without the risk of electrical interference. The CBO 10-P also provides a transmitter power supply and supports external fusing for added safety and reliability in demanding environments.

Functional Highlights:

  • 24 Output Channels: The module features 24 binary outputs, perfect for systems that require multiple output signals for control and monitoring.

  • Wide Voltage Range: It supports 10V to 60V AC/DC, making it versatile for various industrial applications.

  • Potential-Free Contacts: Offers potential-free contacts, enabling seamless integration into different control and automation systems without interference.

  • Transmitter Power Supply: Supplies reliable power to connected transmitters, ensuring continuous operation of your system.

  • External Fusing Support: Includes support for external fusing, offering protection against overcurrent situations for added safety.

  • Compact Design: Despite offering 24 outputs, the module maintains a compact form factor, making it suitable for space-constrained installations.

Technical Specifications:

  • Product ID: 3BDH000733R1

  • ABB Type Designation: CBO 10-P

  • Catalog Description: CBO 10-P Binary Output Module

  • Number of Output Channels: 24

  • Channel Type: Digital Output (DO)

  • Output Voltage Range: 10V to 60V AC/DC

  • Output Current per Channel: 1 A

  • Contact Type: Potential-free contacts

  • Power Supply for Transmitters: Yes

  • External Fusing Support: Yes

  • Required Accessories: 3 pcs of CI 100/101, Cable Clamp

  • Dimensions:

    • Depth/Length: 202 mm

    • Height: 340 mm

    • Width: 45 mm

  • Weight: 0.82 kg

  • Environmental Compliance: RoHS Compliant (EU Directive 2011/65/EU and Amendment 2015/863)

  • WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)

  • Batteries: 0

  • SCIP: 3c21e23c-fa86-49cb-a998-c3f9e983a87e (Germany)
