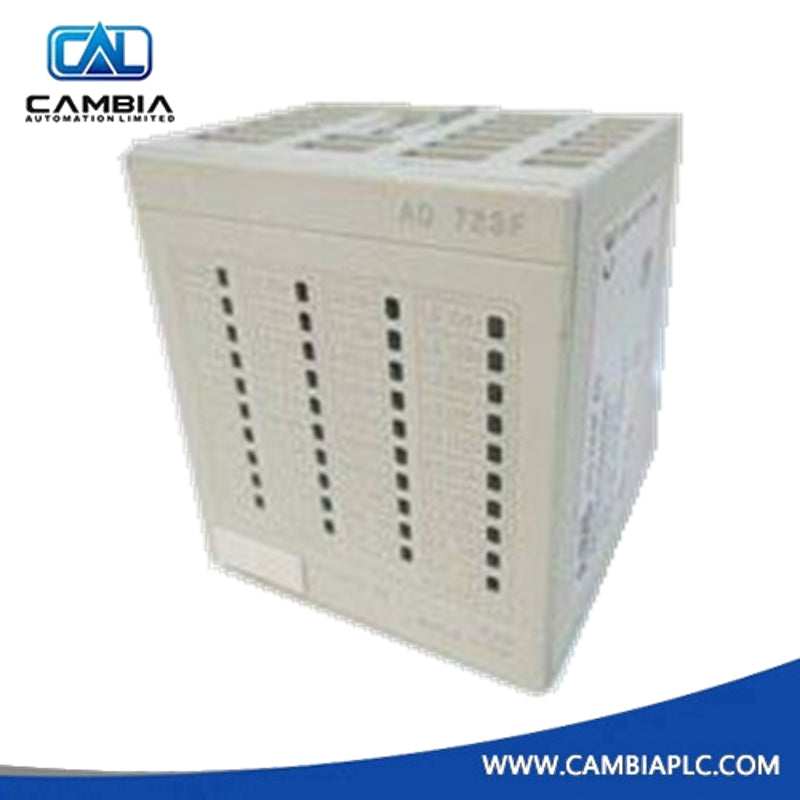

ABB 3BDH000384R0001 AO723F Analog Output Module

The ABB 3BDH000384R0001 AO 723F Analog Output Module is a versatile and high-performance module designed for industrial automation systems. With 16 output channels, this module provides precise control over analog output signals, making it ideal for applications where accurate voltage or current control is required. The AO 723F can be used in PROFIBUS remote I/O systems as well as with direct I/O on AC 700F and AC 900F controllers.

Functional Highlights / Key Benefits

• 16 Output Channels: The AO 723F features 16 channels in total, with 8 channels configurable as voltage or current output and 8 channels configurable as voltage output only.

• Versatile Output Configurations: Each channel can be configured to deliver either a voltage output in the range of -10 to +10 V or a current output (0-20 mA or 4-20 mA), depending on application needs.

• High Resolution: The module provides 12-bit resolution with a signed output, ensuring precise control and high accuracy for your automation systems.

• Optimized for PROFIBUS: The AO 723F is specifically designed for use with PROFIBUS Slave systems, ensuring seamless integration into existing PROFIBUS-based networks for industrial communication.

• Direct I/O Support: It can also be used with AC 700F and AC 900F controllers, offering flexibility in system design and integration.

• Compact Design: The module is designed to be compact yet efficient, with a size of only 67.5 mm width, 76 mm height, and 54 mm depth, making it ideal for space-constrained environments.

Technical Specifications

• Product Type: Analog Output Module

• Model: AO 723F

• Part Number: 3BDH000384R0001

• Number of Output Channels: 16

• Configurable Channels: 8 channels (voltage or current)

• Voltage Output Range: -10 to +10 V

• Current Output Range: 0-20 mA or 4-20 mA

• Resolution: 12-bit with signed output

• Power Supply: 24 V DC

• Environmental Conditions:

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -20°C to +75°C

• Vibration: 1 g, 2 Hz to 150 Hz

• Protection Class: IP20

• Compliance:

• RoHS: Yes (Directive 2011/65/EU)

• WEEE: Yes (Directive 2012/19/EU)

• Dimensions:

• Width: 67.5 mm

• Height: 76 mm

• Depth: 54 mm

• Weight: 0.15 kg

• Batteries: None

• Interfaces:

• PROFIBUS Slave

• Direct I/O for AC 700F/AC 900F

FAQ

1. How many output channels does the ABB AO 723F have?

• The AO 723F has 16 output channels in total, with 8 channels configurable as either voltage or current outputs and the remaining 8 channels dedicated to voltage output.

2. What is the voltage and current output range for the AO 723F?

• The module offers a voltage output range of -10 to +10 V and a current output range of 0-20 mA or 4-20 mA.

3. Is the AO 723F compatible with PROFIBUS?

• Yes, the AO 723F is specifically designed for use as a PROFIBUS Slave, enabling seamless integration into PROFIBUS-based automation systems.
