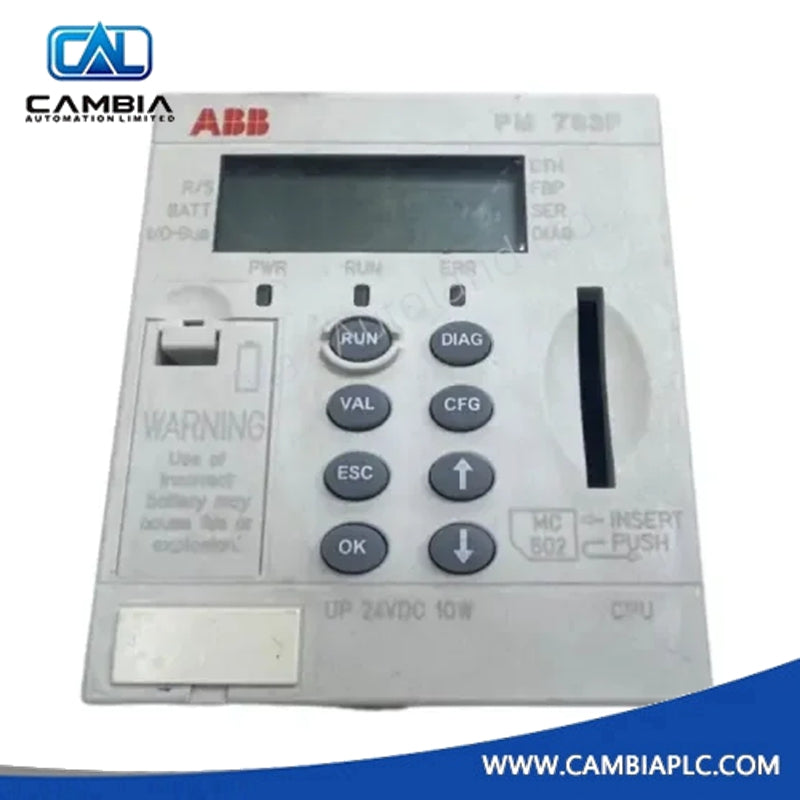

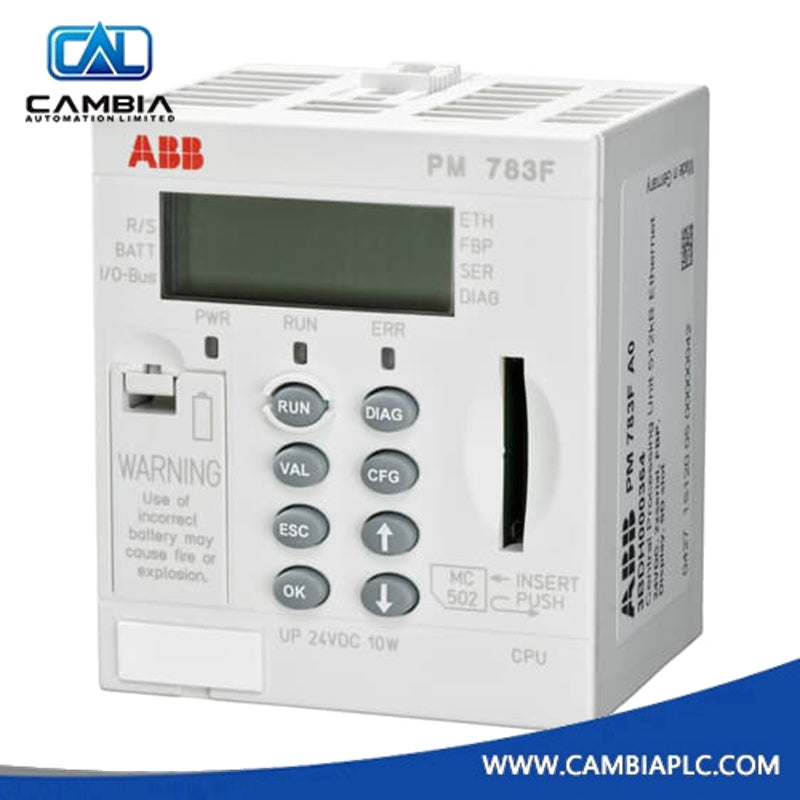

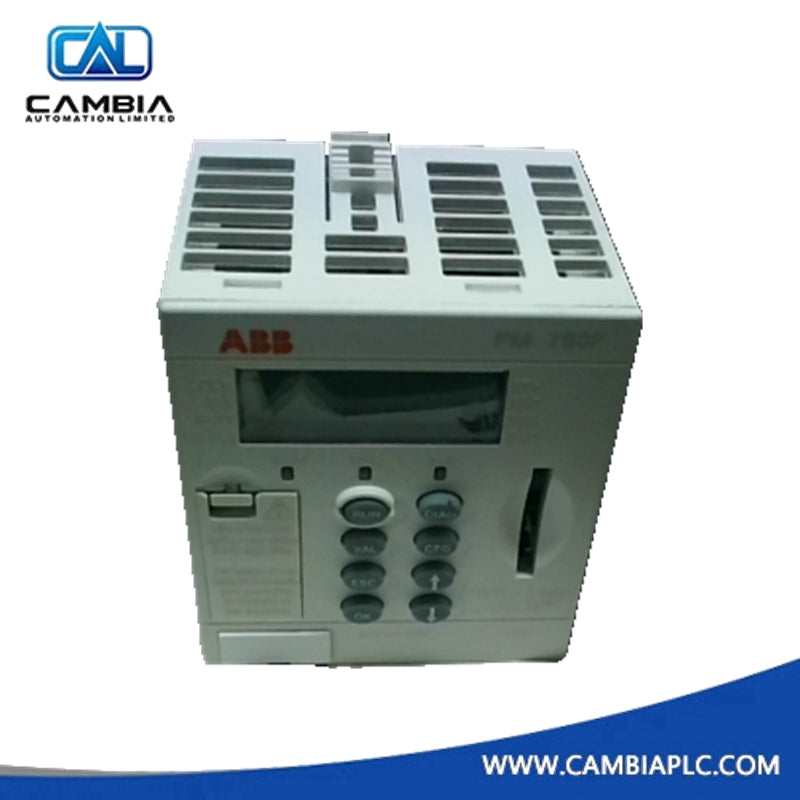

ABB 3BDH000364R0005 PM783F CPU Module

The ABB 3BDH000364R0005 PM783F CPU Module is a high-performance processor module designed for advanced industrial automation systems. Originating from Sweden, this robust module offers powerful computing capabilities with a clock frequency of 96 MHz and is equipped with 10 MB of memory, making it an ideal solution for demanding industrial applications. The PM783F is built to enhance machine control, ensuring smooth, reliable operations in a variety of automation environments.

Functional Highlights / Key Benefits

• High-performance Processor: Powered by the PowerQUICC processor, the PM783F delivers fast and reliable performance for industrial control systems.

• Memory and Processing Power: 10 MB of memory with 2 MB of RAM available for application ensures fast data processing and smooth control of operations.

• Versatile Communication Interfaces: Features Ethernet (100/10 Mbit/s) and two RS-232C interfaces (general-purpose and service tool port) for seamless integration with other systems.

• Compact and Efficient: Despite its high performance, the PM783F CPU module is compact, with a size of only 67.5 mm width, 76 mm height, and 54 mm depth.

• Low Power Consumption: The module operates with a power supply of 24 V DC, consuming a typical 24 W (max), making it an energy-efficient solution for industrial automation.

• Built-in Backup Battery: The module includes a lithium battery (TA 521F) for backup, ensuring data retention even during power interruptions.

Technical Specifications

• Product Type: CPU Module

• Model: PM783F

• Part Number: 3BDH000364R0005

• Processor Type: PowerQUICC

• Clock Frequency: 96 MHz

• Memory:

• Total: 10 MB

• RAM for Application: 2 MB

• Power Supply: 24 V DC

• Power Consumption:

• Typical: 24 W

• Max: 24 W

• Power Dissipation: 10 W

• Backup Battery: Lithium battery (TA 521F)

• Ethernet Interface:

• 1 x Ethernet (100/10 Mbit/s, RJ-45, IEEE 802.3)

• RS-232C Interfaces:

• 1 x general-purpose port

• 1 x service tool port

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -20°C to +75°C

• Vibration: 1 g, 2 Hz to 150 Hz

• Protection Class: IP20

• Weight: 0.4 kg

• Dimensions:

• Width: 67.5 mm

• Height: 76 mm

• Depth: 54 mm

• Environmental Compliance:

• RoHS: Yes

• CE Mark: Yes

• WEEE: Yes

• IEC 61131-2, UL 61010-1, UL 61010-2-201

• Hazardous Location: cULus Class 1 Div 2

• Corrosion Protection: G3 compliant (ISA 71.04)

Typical Applications / System Integration / Use Cases

The ABB 3BDH000364R0005 PM783F CPU Module is well-suited for a variety of industrial applications where high performance and reliability are essential. Some common use cases include:

• Machine Control: Ideal for controlling industrial machines and automated processes, ensuring smooth and accurate operation.

• Process Automation: Used in industries such as manufacturing, oil & gas, and food processing to control complex industrial processes.

• Factory Automation: Supports control in automated production lines, improving efficiency and reducing human error.

• Embedded Systems: With its compact design, it can be embedded into various industrial control systems, allowing for scalable and flexible automation solutions.

• System Integration: The PM783F integrates easily with other ABB products, forming part of a comprehensive automation solution.
