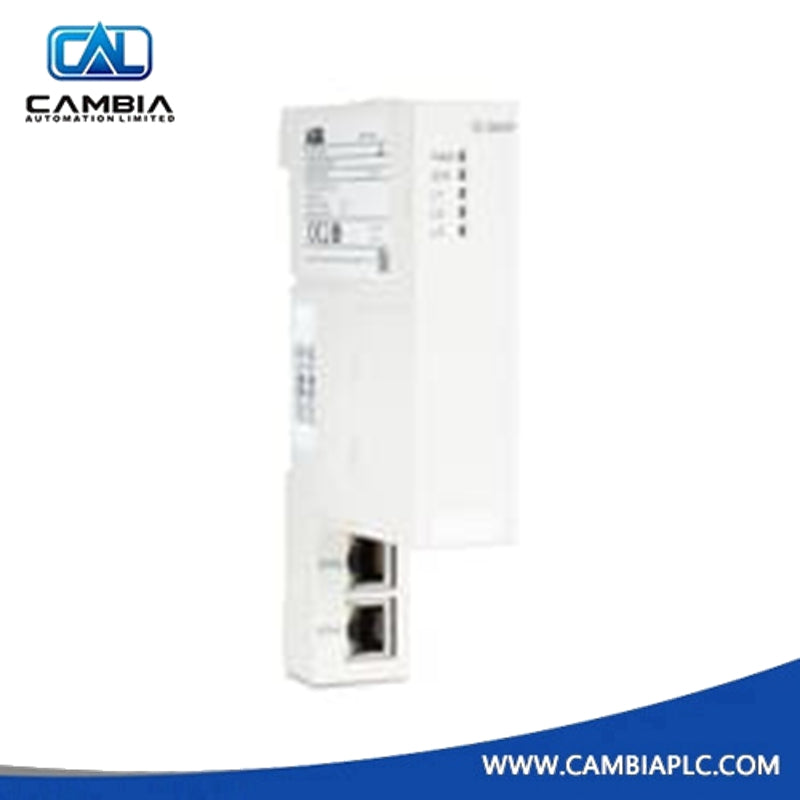

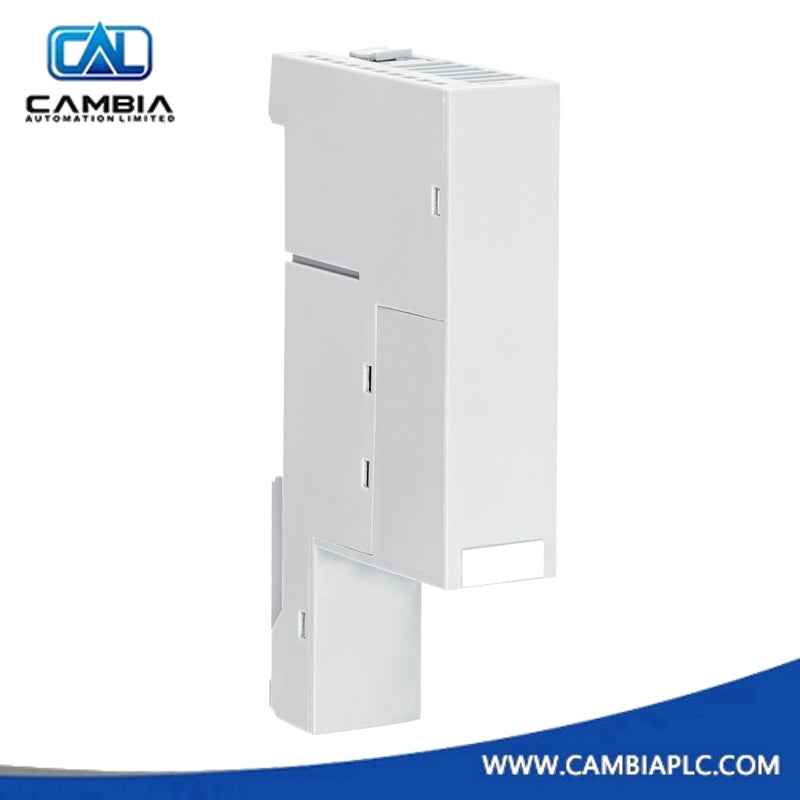

ABB 3BDH00011R1 Power Supply Module

The ABB 3BDH00011R1 Power Supply Module is a reliable and high-performance component designed to support industrial automation systems. This power supply module ensures stable and continuous power for various ABB controllers and modules, providing the necessary energy for smooth system operation. It is ideal for applications that require a dependable power source in harsh industrial environments.

Functional Highlights / Key Benefits

• Reliable Power Supply: The 3BDH00011R1 module delivers stable power, ensuring consistent operation for ABB controllers and automation systems.

• Efficient Design: This power supply module is engineered for high efficiency, minimizing energy consumption while maintaining optimal performance.

• Compact and Durable: Designed to endure in challenging environments, the module’s compact form factor and rugged construction make it a reliable choice for industrial applications.

• Minimal Maintenance: With a focus on low maintenance and longevity, the module reduces the need for frequent replacements and service interruptions.

• Flexible Integration: The power supply module easily integrates with a wide range of ABB systems, enhancing system scalability and flexibility.

Technical Specifications

• Product Type: Power Supply Module

• Model: 3BDH00011R1

• Power Output: 24 VDC

• Input Voltage Range: 85-264 VAC

• Operating Temperature: -10°C to +60°C

• Dimensions:

• Length: 150 mm

• Width: 85 mm

• Height: 120 mm

• Weight: 0.8 kg

• Efficiency: > 90%

• Cooling: Natural convection

• Compliance: CE certified

• RoHS Compliance: Yes

• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)

FAQ

1. What is the output voltage of the ABB 3BDH00011R1 Power Supply Module?

• The 3BDH00011R1 provides a stable 24 VDC output.

2. What input voltage range does the module support?

• The power supply module supports an input voltage range of 85-264 VAC.

3. Is the ABB 3BDH00011R1 Power Supply RoHS compliant?

• Yes, the ABB 3BDH00011R1 Power Supply module is RoHS compliant.
