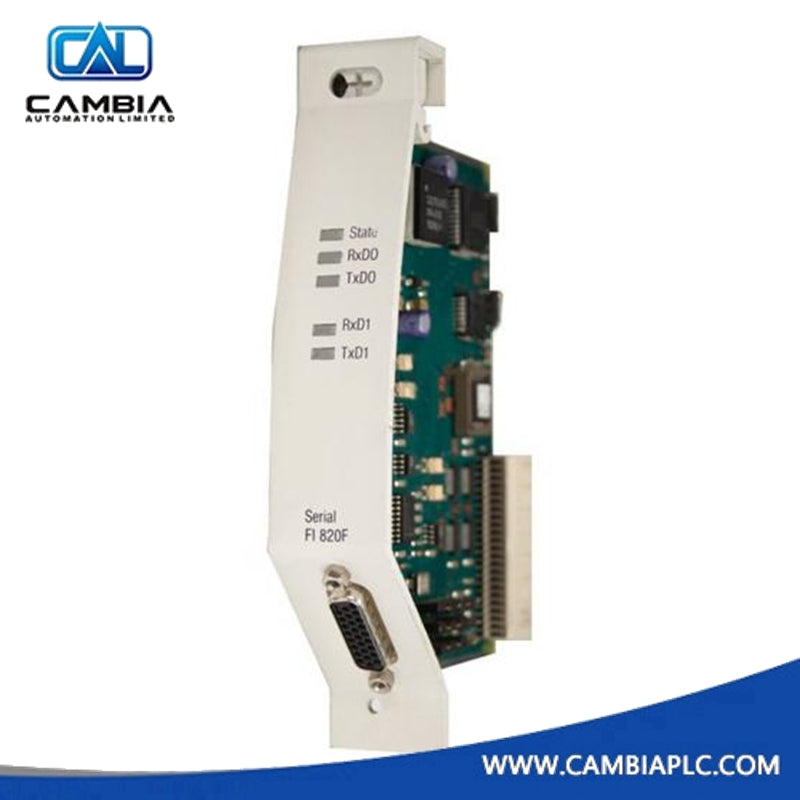

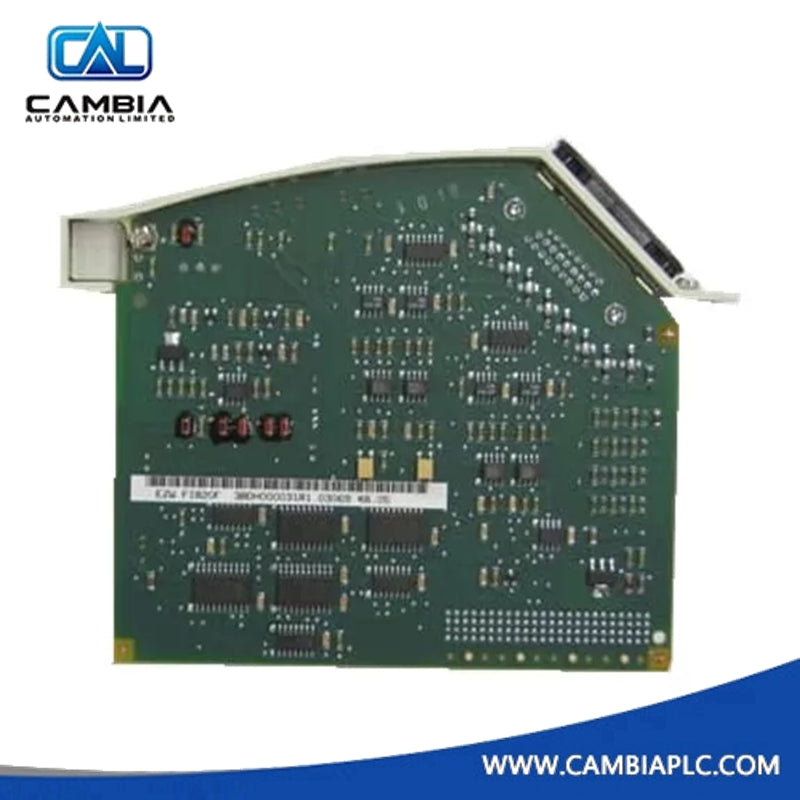

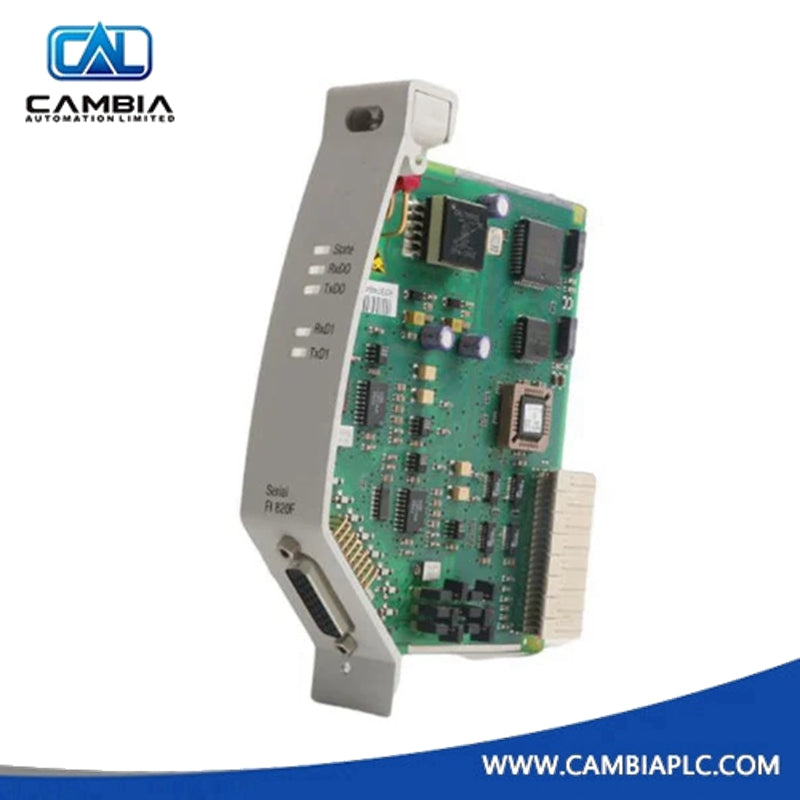

ABB 3BDH000031R1 Fieldbus Module

The FI 820F Fieldbus Module Serial from ABB is a high-performance communication module designed to integrate seamlessly into industrial automation systems. Offering dual-channel serial communication capabilities, this module is intended for use with ABB’s PM 802F and PM 803F controllers. The FI 820F enhances the flexibility and scalability of your automation network, enabling reliable data transfer across various industrial devices.

Functional Highlights / Key Benefits

• Dual-Channel Serial Communication: The FI 820F supports dual-channel serial communication, enabling simultaneous data exchange for enhanced performance.

• Seamless System Integration: Specifically designed to work with ABB PM 802F and PM 803F controllers, ensuring smooth integration and easy configuration.

• Compact and Reliable: The module’s compact size (only 125 mm in length) and robust construction make it a reliable choice for demanding industrial environments.

• Low Maintenance: No batteries required, minimizing ongoing maintenance and reducing operational downtime.

• Compliance: Although not RoHS compliant, the module adheres to WEEE category 5 regulations, ensuring eco-friendly disposal.

Technical Specifications

• Product Type: Communication Module

• Dimensions:

• Length: 125 mm

• Height: 155 mm

• Width: 28 mm

• Net Weight: 0.145 kg

• Communication Type: Dual Channel Serial

• Software Compatibility: Compatible with ABB PM 802F and PM 803F controllers

• RoHS Compliance: Not RoHS Compliant

• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)

• Battery: No battery included

• SCIP: No SVHC present (Malta)

Typical Applications / System Integration / Use Cases

The FI 820F Fieldbus Module Serial is ideal for industrial automation systems that require reliable serial communication for device control and monitoring. Its key applications include:

• Factory Automation: Connect various field devices such as sensors, actuators, and controllers to a centralized system for improved process management and monitoring.

• Process Control: Ensure continuous communication between control systems and equipment used in chemical, energy, or manufacturing industries.

• Upgrade Existing Systems: Perfect for upgrading older systems or expanding the capabilities of existing ABB PM 802F or PM 803F controllers with enhanced communication features.

• Machine Networking: Facilitate data exchange between machines in automated production lines, improving efficiency and data accuracy.
