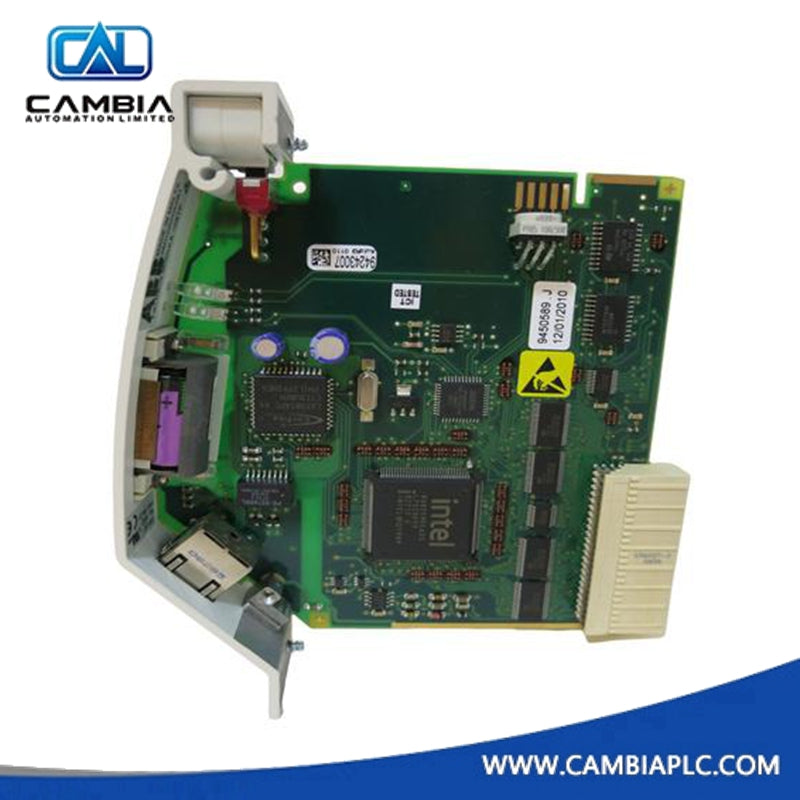

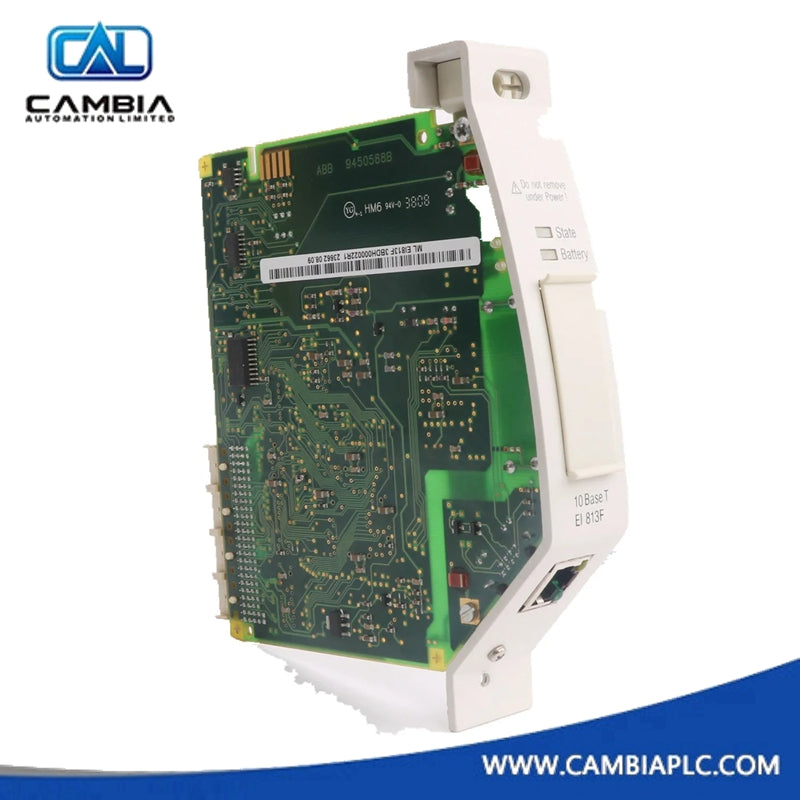

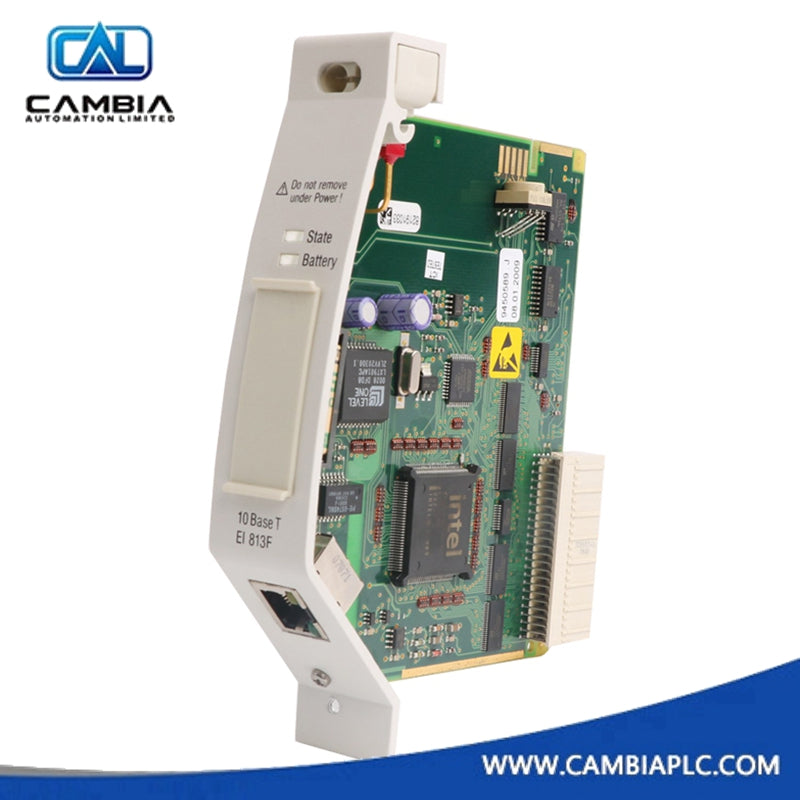

ABB 3BDH000022R1 Ethernet Module

The EI 813F Ethernet Module 10BaseT from ABB is a robust and reliable communication solution for industrial automation systems. Designed for use with ABB’s PM 802F and PM 803F controllers, this module provides efficient, high-speed Ethernet connectivity over twisted pair cables. Ideal for enhancing the networking capabilities of your automation systems, the EI 813F module offers seamless integration with existing setups, ensuring stable communication and data transfer.

Functional Highlights / Key Benefits

• Seamless Integration: The EI 813F module is designed to work flawlessly with PM 802F and PM 803F controllers, simplifying system expansion and upgrades.

• Efficient Ethernet Communication: With 10BaseT (twisted pair) Ethernet support, this module enables fast and stable data communication for industrial applications.

• Reliability: Built for demanding industrial environments, the module guarantees durable and consistent performance.

• Low Maintenance: The absence of a battery ensures minimal maintenance needs, providing long-term reliability with less downtime.

• Compliance: While not RoHS compliant, the EI 813F is fully WEEE category 5 compliant, ensuring its eco-friendly disposal in accordance with regulations.

Technical Specifications

• Product Type: Communication Module

• Product Dimensions:

• Length: 125 mm

• Height: 155 mm

• Width: 28 mm

• Net Weight: 0.15 kg

• Communication Type: 10BaseT Ethernet (Twisted Pair)

• Software Compatibility: V7.1SP2a or higher

• RoHS Compliance: Not RoHS Compliant

• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)

• Battery: No battery included

• SCIP: No SVHC present (Malta)

Typical Applications / System Integration / Use Cases

The EI 813F Ethernet Module is ideal for industrial environments where stable Ethernet communication is required. Some common use cases include:

• Factory Automation: Seamlessly connect industrial devices to control systems for real-time data transfer and monitoring.

• Process Control Systems: Improve communication in systems that manage production lines or chemical processes.

• Remote Monitoring: Enable easy remote diagnostics and monitoring of equipment and systems via Ethernet.

• Upgrade Existing Systems: Enhance the communication capabilities of existing ABB systems like PM 802F or PM 803F with this module.
