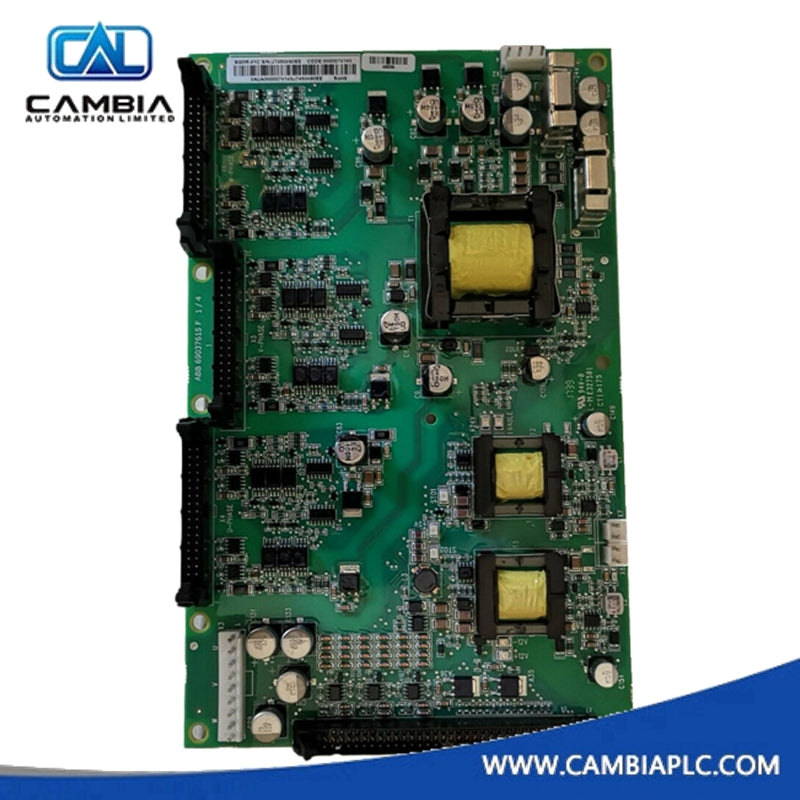

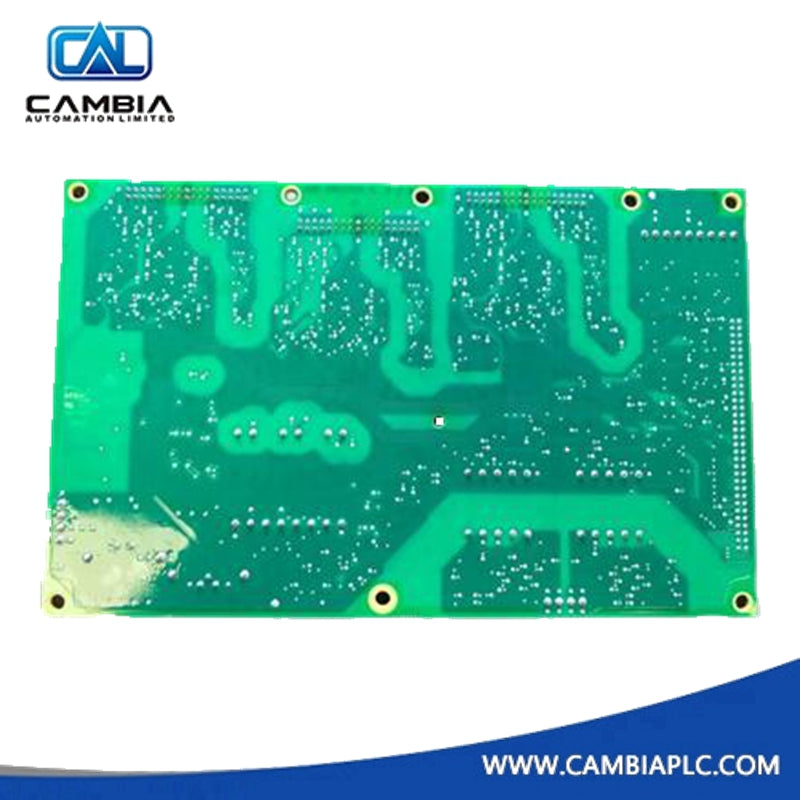

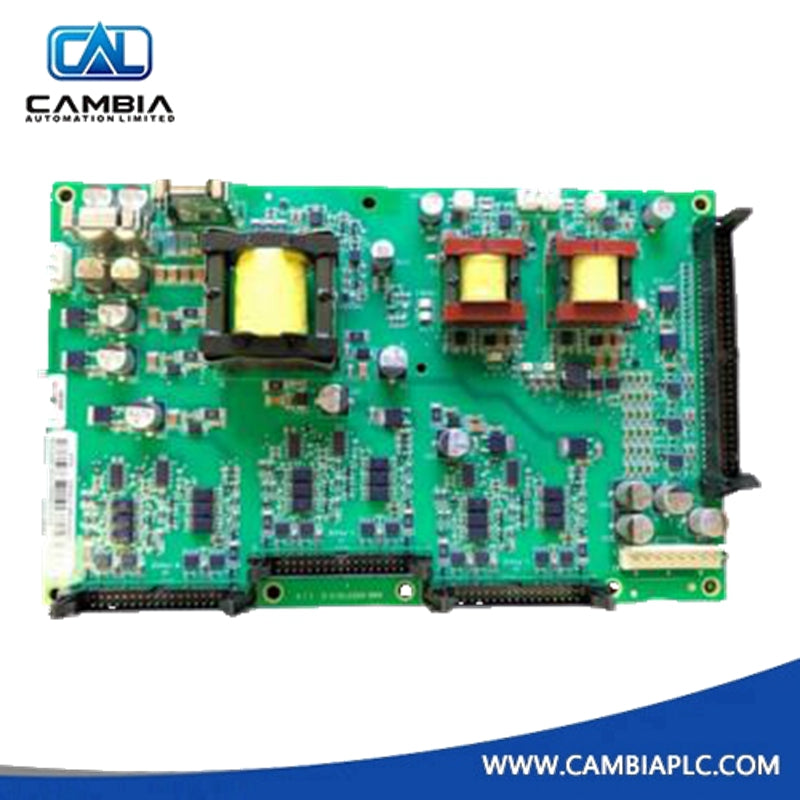

ABB 3AUA0000074145 Gate Driver Board

The ABB 3AUA0000074145 Gate Driver Board is a highly efficient and reliable solution for controlling power switches in industrial automation applications. This advanced module is designed to drive high-power semiconductor devices, such as IGBTs (Insulated Gate Bipolar Transistors) and MOSFETs, providing smooth and accurate control. With robust performance and superior protection features, the Gate Driver Board ensures the stable operation of your automation systems, even in demanding environments. Ideal for applications requiring precise switching and high reliability, it optimizes the performance and efficiency of your power conversion systems.

Functional Highlights:

• Precision Control: Offers accurate gate driving for high-power switches, ensuring smooth transitions and minimizing power loss during operation.

• High-Voltage Tolerance: Built to withstand high-voltage environments, providing secure operation in industrial applications with demanding power requirements.

• Thermal Management: Integrated heat protection features maintain stable performance in high-temperature environments, preventing overheating and ensuring long-term reliability.

• Integrated Protection: Includes built-in overcurrent, overvoltage, and short-circuit protection, safeguarding both the gate driver and the connected devices.

• Flexible Compatibility: Compatible with a wide range of IGBTs and MOSFETs, making it suitable for various industrial power systems and configurations.

Key Benefits:

• Enhanced System Efficiency: By delivering precise and reliable gate drive signals, this module enhances the overall efficiency of power systems, reducing energy consumption.

• Improved Operational Safety: The comprehensive protection features minimize the risk of system failure due to voltage or current surges, enhancing operational safety.

• Durability in Harsh Environments: Built with robust components, the Gate Driver Board is engineered to operate in extreme conditions, ensuring a long service life.

• Simplified Integration: Easy to integrate into existing industrial automation setups, reducing installation time and minimizing system downtime.

Technical Data / Specifications:

• Model: 3AUA0000074145

• Input Voltage: 15V ± 10%

• Output Voltage: 15V (max)

• Output Current: 4A (peak)

• Gate Drive Configuration: Single-channel, low-side and high-side

• Gate Drive Type: High-speed, isolated driver

• Operating Temperature Range: -40°C to +125°C

• Protection Features: Overcurrent, overvoltage, short-circuit, and thermal protection

• Power Supply: 15V DC ± 10% (External supply required)

• Interface: Opto-isolated input for noise immunity

• Packaging Type: Industrial-grade PCB

Typical Applications:

• Industrial Power Control: Essential in controlling power switches within industrial automation systems, including motor drives and power inverters.

• Renewable Energy Systems: Perfect for solar inverters, wind turbines, and other renewable energy applications requiring high-efficiency power conversion.

• Electric Vehicles (EV): Supports efficient gate drive for power electronics in electric vehicle charging systems and drive motors.

• UPS Systems: Ensures reliable gate driving for uninterruptible power supplies (UPS), supporting mission-critical operations with minimal downtime.

• Power Electronics Research & Development: A valuable tool for engineers and researchers in designing and testing power systems with precise switching requirements.

Support & Maintenance:
ABB’s 3AUA0000074145 Gate Driver Board comes with comprehensive technical support, including application assistance, installation guidance, and troubleshooting resources. Regular firmware updates and maintenance ensure the module performs at its peak throughout its service life. Additionally, ABB offers a wide range of replacement parts and repair services to maintain long-term operational stability.

FAQ Section:

1. What is the ABB 3AUA0000074145 Gate Driver Board used for?
This Gate Driver Board is used to control power semiconductor devices like IGBTs and MOSFETs in industrial automation systems, ensuring precise and efficient operation.

2. What type of devices are compatible with the ABB Gate Driver Board?
The board is compatible with a variety of IGBTs and MOSFETs, making it suitable for many industrial power applications.

3. How does the ABB 3AUA0000074145 ensure protection?
It includes built-in overcurrent, overvoltage, short-circuit, and thermal protection features to safeguard both the board and the connected devices.
