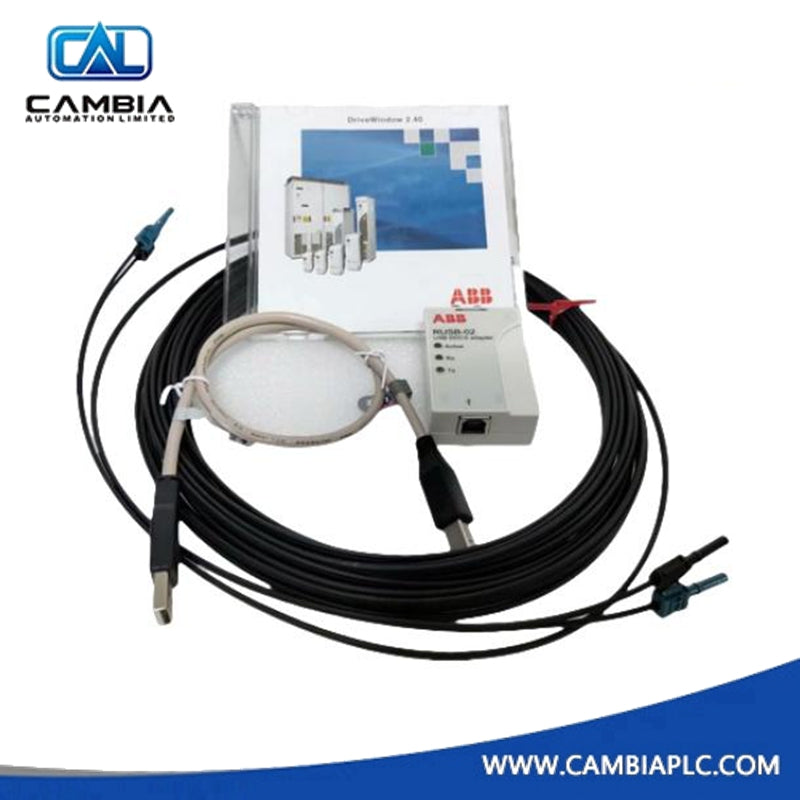

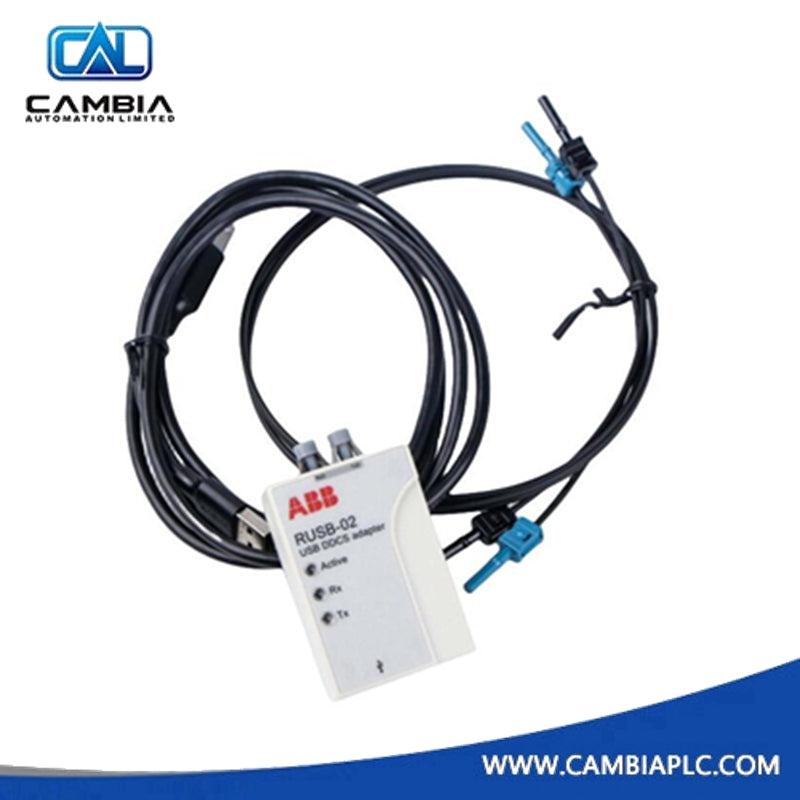

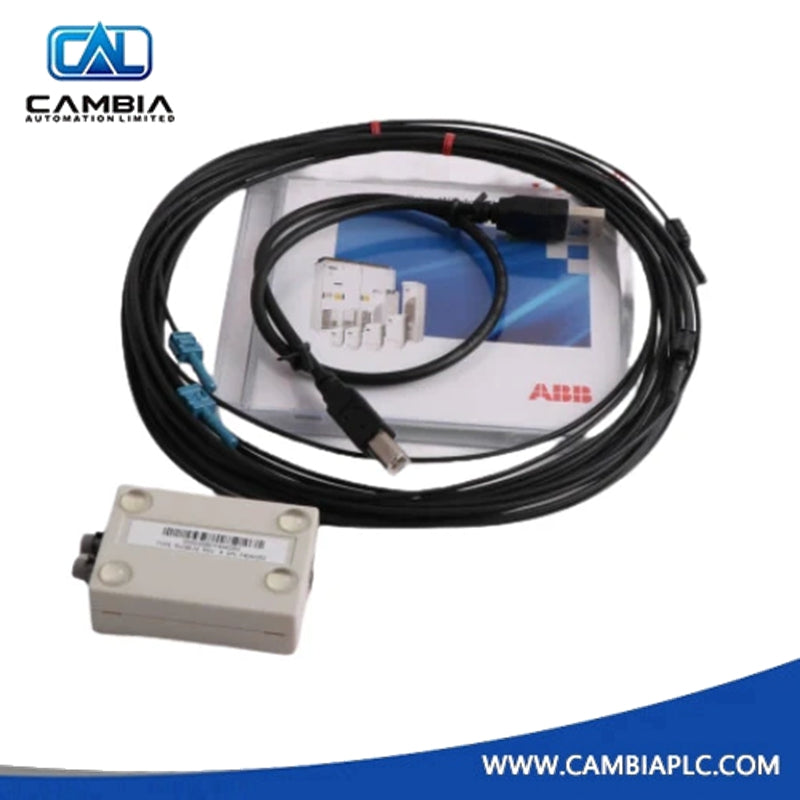

ABB 3AUA0000040000 DriveWindow with USB Hardware

The ABB 3AUA0000040000 DriveWindow with USB Hardware is a powerful and versatile tool designed for seamless drive parameter configuration, monitoring, and diagnostics in industrial automation systems. This user-friendly interface simplifies the integration of ABB drive systems with your computer, providing easy access to real-time data, system performance, and troubleshooting tools. With its USB connection, the DriveWindow allows for quick setup and offers a reliable way to manage drive parameters and monitor equipment health, all from a central location. It is an essential tool for improving operational efficiency and reducing downtime in any industrial setup.

Functional Highlights

• Real-Time Monitoring: Provides real-time system data, allowing operators to monitor key drive parameters, such as motor speed, torque, and fault status.

• Easy Setup: Plug-and-play USB connectivity simplifies installation and eliminates the need for complex software or additional hardware.

• User-Friendly Interface: Features an intuitive graphical interface that allows users to easily configure and manage drive parameters, ensuring faster setup and operation.

• Comprehensive Diagnostics: Offers in-depth diagnostics to identify issues quickly, helping to prevent downtime and maintain optimal system performance.

• Secure Communication: Supports secure and reliable data transfer between the drive system and your PC, enhancing operational safety.

Technical Data / Specifications

• Part Number: 3AUA0000040000

• Connection Interface: USB 2.0

• Operating System Compatibility: Windows 7, 8, 10

• Supported Drives: Compatible with ABB ACS and DCS drive families

• Power Supply: Powered directly via USB connection

• Dimensions (LxWxH): 120 x 60 x 30 mm

• Weight: 0.15 kg

• Temperature Range: -10°C to 50°C

• Storage Temperature: -20°C to 70°C

• Safety Certifications: CE, UL, RoHS

Typical Applications / System Integration

The ABB 3AUA0000040000 DriveWindow with USB Hardware is ideal for industrial applications where drive systems require frequent monitoring and parameter adjustments. Typical use cases include:

• Industrial Automation: Monitoring and managing drive parameters in automated production lines, improving system efficiency and reducing human error.

• HVAC Systems: Configuring and adjusting drive settings for air handling units, pumps, and ventilation fans to optimize energy usage and performance.

• Material Handling Systems: Monitoring motor-driven equipment such as conveyors, hoists, and lifts, ensuring smooth operation and minimizing downtime.

• Pump Control Systems: Diagnosing and adjusting pump drive systems to optimize fluid flow and reduce energy consumption.

With simple USB integration, the DriveWindow ensures that operators and maintenance personnel can easily interface with ABB drive systems, streamlining daily operations and supporting proactive system management.

Support & Maintenance

ABB offers robust support for the 3AUA0000040000 DriveWindow, including access to detailed user manuals, troubleshooting guides, and dedicated technical assistance. Regular updates to the software ensure compatibility with the latest drive systems and improve the functionality of the DriveWindow. Routine checks and proper handling will help maintain the device’s longevity and reliability. Additionally, ABB's global support network ensures that you have access to expert guidance whenever required.

FAQ

Q1: What is the main function of the ABB 3AUA0000040000 DriveWindow?
A1: The DriveWindow allows for easy configuration, monitoring, and diagnostics of ABB drive systems via a USB connection, improving operational efficiency and system management.

Q2: Is the DriveWindow compatible with all ABB drives?
A2: The DriveWindow is compatible with most ABB ACS and DCS drive families, making it an essential tool for monitoring and managing a wide range of ABB drive systems.

Q3: How easy is it to set up the ABB DriveWindow with USB hardware?
A3: The DriveWindow features a plug-and-play USB connection, which simplifies setup and eliminates the need for complex configurations or additional hardware.

Q4: What kind of diagnostic features are included with the DriveWindow?
A4: The DriveWindow provides comprehensive diagnostic tools, allowing users to monitor system health, detect faults, and optimize drive performance, thereby reducing downtime.

Q5: Can I use the ABB DriveWindow on a Mac or Linux system?
A5: The ABB DriveWindow is currently compatible with Windows operating systems (Windows 7, 8, and 10). It does not support Mac or Linux platforms.
