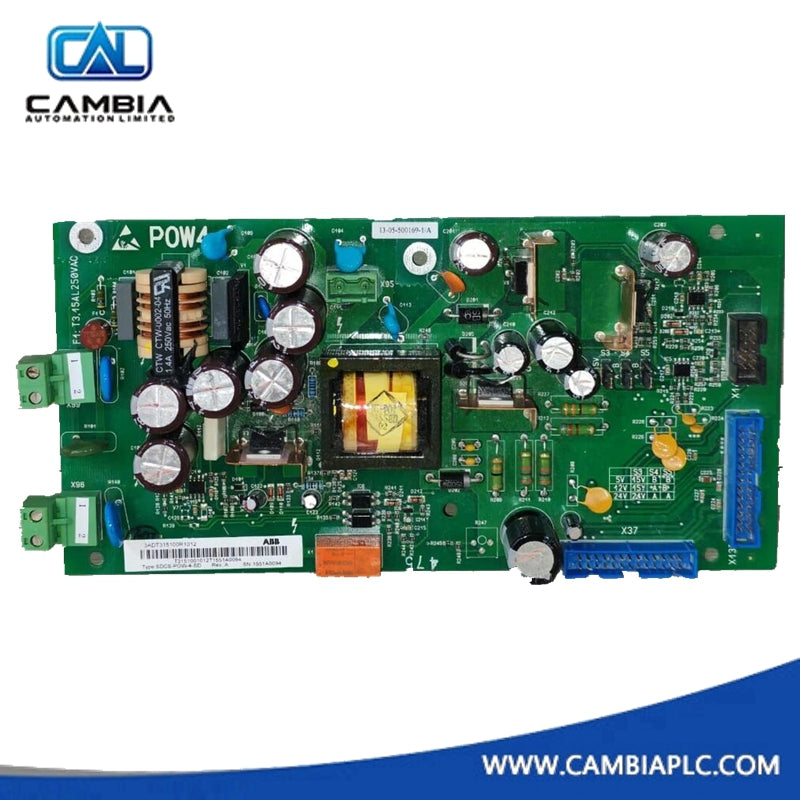

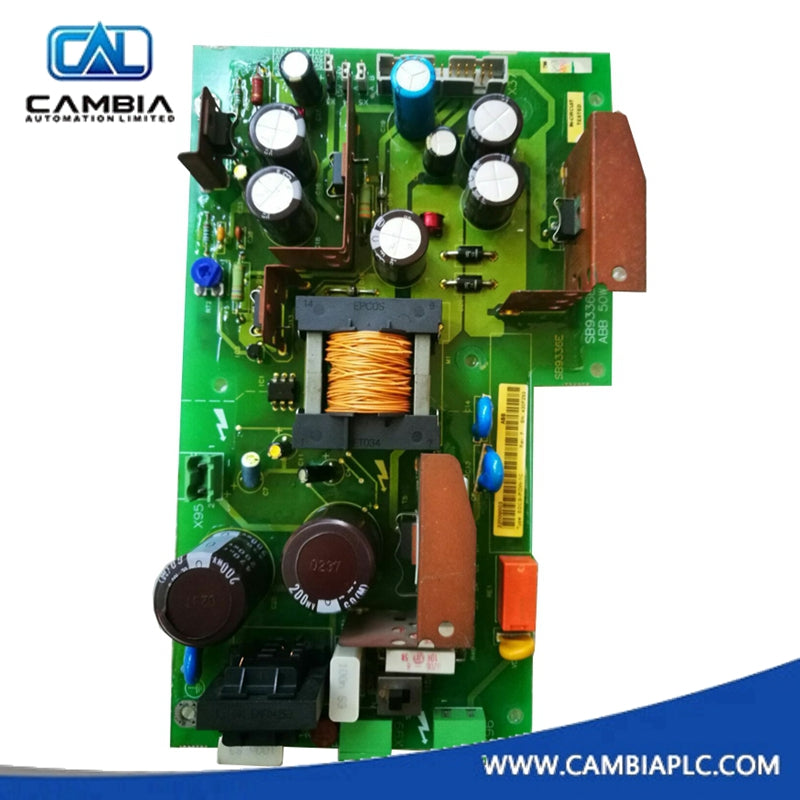

ABB 3ADT315100R1012 Power Supply Board

The ABB 3ADT315100R1012 Power Supply Board is a critical component for industrial automation systems, designed to deliver reliable and efficient power distribution. This power supply board provides stable voltage and current to various system modules, ensuring smooth operation and system integrity. Built to withstand harsh industrial environments, the 3ADT315100R1012 power supply board is ideal for use in automated systems where consistent power delivery is essential.

The board supports a wide range of applications in sectors such as manufacturing, energy management, and automation, providing power for the control units and ensuring proper functioning of the entire system. Its robust construction and efficient energy management make it an essential component in any high-performance industrial system.

Functional Highlights:

• Reliable Power Delivery: The ABB 3ADT315100R1012 ensures stable and continuous power supply to control systems, maintaining optimal performance even in demanding conditions.

• Efficient Voltage Regulation: With built-in voltage regulation, it guarantees that connected components receive the correct voltage, preventing damage to sensitive equipment.

• Durable Design: Engineered to operate in industrial environments, this power supply board is made from high-quality materials to withstand extreme conditions, including temperature fluctuations and electrical noise.

• Easy Integration: The 3ADT315100R1012 is designed for seamless integration with other ABB automation components, ensuring straightforward setup and maintenance.

Technical Specifications:

• Model: 3ADT315100R1012

• Product Type: Power Supply Board

• Input Voltage: 24V DC

• Output Voltage: 5V DC / 12V DC / 24V DC (depending on configuration)

• Output Current: Up to 5A (maximum)

• Operating Temperature: -10°C to +60°C

• Storage Temperature: -20°C to +70°C

• Protection Features: Overcurrent, Overvoltage, and Short-Circuit protection

• Dimensions: 200mm x 120mm x 50mm

• Weight: 600g

• Material: High-quality aluminum housing for optimal heat dissipation

• Mounting: Standard DIN rail mounting

• Certifications: CE, UL, RoHS compliant

Typical Applications:

The ABB 3ADT315100R1012 power supply board is suited for a variety of industrial automation applications, including:

• Industrial Control Systems: Provides stable power to PLCs, HMIs, and other control units in manufacturing automation systems.

• Energy Management: Ideal for power distribution in systems that monitor and control energy usage across industrial operations.

• Robotic Systems: Ensures continuous power to robots and other automated machinery, critical for precision and uptime.

• Conveyor and Material Handling Systems: Delivers reliable power for conveyor systems, ensuring smooth and efficient operations.

• Power Supply for Communication Units: Supports communication modules in large-scale automation setups, providing reliable power for uninterrupted data transfer.

Support & Maintenance:

ABB offers comprehensive support for the 3ADT315100R1012 power supply board, including troubleshooting assistance, documentation, and firmware updates. Regular maintenance ensures the power supply system remains in optimal condition, preventing potential system failures and minimizing downtime. For long-term reliability, it is recommended to use genuine ABB replacement parts and regularly check the board’s performance.

FAQ

1. What is the input voltage for the 3ADT315100R1012 power supply board?

• The 3ADT315100R1012 requires an input voltage of 24V DC to function properly.

2. What output voltages are supported by the power supply board?

• The 3ADT315100R1012 provides output voltages of 5V DC, 12V DC, and 24V DC, depending on the configuration.

3. What protection features are included in this power supply board?

• The board includes overcurrent, overvoltage, and short-circuit protection, ensuring safety for the connected components.

4. How is the 3ADT315100R1012 mounted?

• The 3ADT315100R1012 is designed for DIN rail mounting, allowing for easy integration into existing systems.

5. What is the recommended operating temperature range?

• The recommended operating temperature range for the 3ADT315100R1012 is -10°C to +60°C, suitable for most industrial environments.
