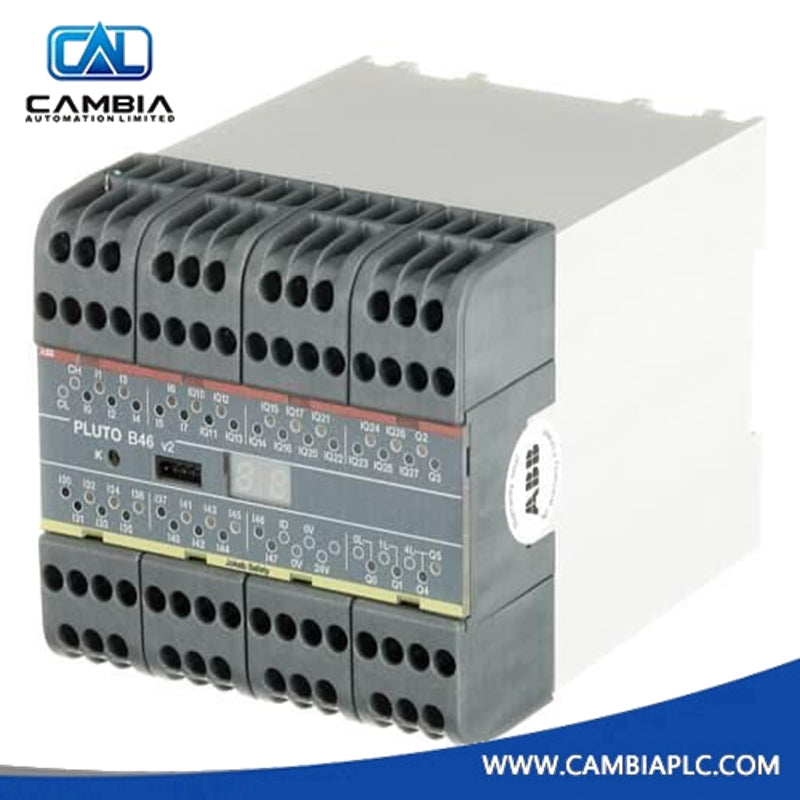

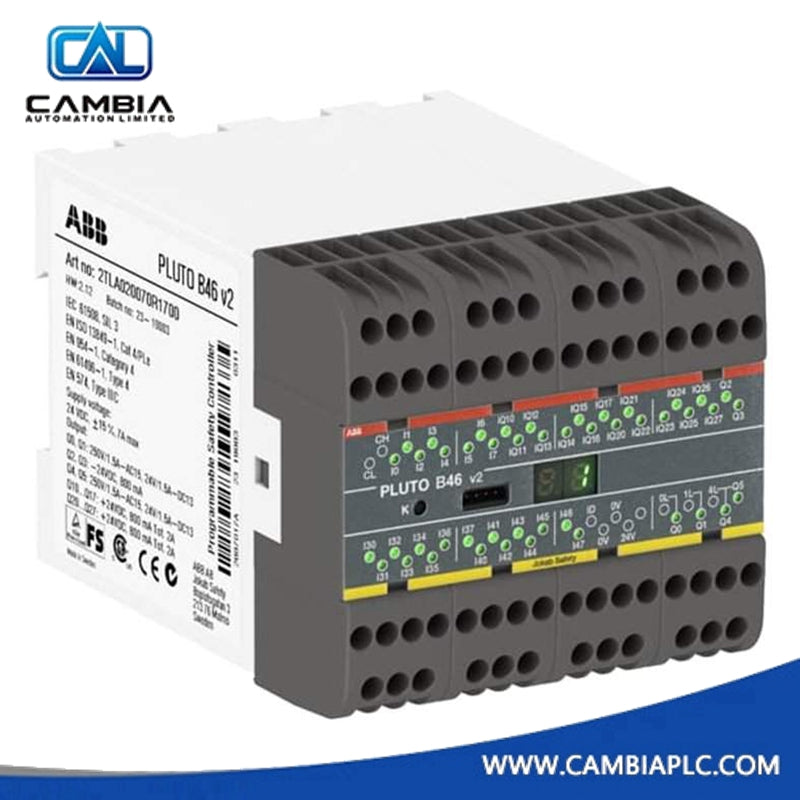

ABB 2TLA020070R1700 Programmable Logic Controller

The ABB 2TLA020070R1700 Programmable Logic Controller (PLC) is a high-performance, industrial-grade control system designed for precision automation and process control. Offering reliability, flexibility, and exceptional efficiency, it is ideal for managing complex industrial tasks across various sectors, including manufacturing, automation, and energy management. This PLC is engineered to provide optimized solutions for both small and large-scale operations, enabling seamless integration into diverse industrial systems.

Functional Highlights / Key Benefits / Main Features

• Advanced Processing Power: The ABB 2TLA020070R1700 features an advanced CPU capable of executing high-speed control commands, ensuring optimal performance for time-sensitive operations.

• Modular Design: Flexible and scalable, the PLC allows for easy customization to fit specific needs. The modular setup enables users to add or remove components depending on the complexity of their operations.

• Comprehensive I/O Support: With a wide range of input and output options, this PLC supports a variety of industrial sensors, actuators, and other devices, ensuring robust control over automation processes.

• Communication Capabilities: Equipped with multiple communication protocols (such as Modbus, Ethernet/IP), this PLC facilitates smooth integration with other systems and networks, ensuring high interoperability.

• Energy Efficient: Designed to optimize energy consumption, the 2TLA020070R1700 supports energy-saving operations that reduce the overall operational cost of the automation system.

• User-friendly Interface: Its intuitive software interface simplifies programming, troubleshooting, and system monitoring, even for users with minimal technical experience.

Technical Data / Specifications / Technical Parameters

• Model Number: 2TLA020070R1700

• Type: Programmable Logic Controller (PLC)

• Power Supply: 24V DC, ±10%

• Input/Output Configuration: 32 Digital Inputs, 16 Digital Outputs, 8 Analog Inputs, 8 Analog Outputs

• CPU Speed: 1 GHz

• Memory: 2 MB RAM, 512 KB Flash

• Communication Ports: 2 x Ethernet ports, 1 x RS232, 1 x RS485

• Protocol Support: Modbus RTU, Modbus TCP, Ethernet/IP, Profibus DP

• Operating Temperature: 0°C to 60°C

• Humidity Range: 10% to 95% (non-condensing)

• Dimensions: 150 mm x 120 mm x 90 mm

• Weight: 1.2 kg

• Mounting Type: DIN Rail

Typical Applications / System Integration / Use Cases

• Manufacturing Automation: Perfect for controlling assembly lines, packaging systems, and robotic arms in industrial environments, ensuring accurate and efficient operations.

• Energy Management: Widely used in energy plants, the PLC ensures precise monitoring and control of energy distribution systems, enhancing system efficiency.

• Water Treatment Plants: Ideal for the automation of water purification processes, chemical dosing, and pump control, reducing human error and improving safety.

• Smart Grids: The ABB 2TLA020070R1700 is suitable for integration into smart grid systems, optimizing power distribution and load management.

• Building Automation: Controls HVAC systems, lighting, and other building services to enhance energy efficiency and occupant comfort.

Support & Maintenance / Reliability & Service

ABB ensures long-term reliability and support for the 2TLA020070R1700 PLC. The product is backed by ABB's global service network, offering installation assistance, troubleshooting, and software updates. Regular maintenance ensures the PLC remains in optimal working condition, reducing downtime and increasing productivity. Additionally, detailed user manuals and dedicated technical support are available to resolve any queries.

FAQ

1. What is the power supply requirement for the ABB 2TLA020070R1700?

• The PLC operates with a 24V DC power supply with a tolerance of ±10%.

2. How do I integrate the ABB 2TLA020070R1700 with other systems?

• The PLC supports multiple communication protocols, including Modbus RTU, Modbus TCP, Ethernet/IP, and Profibus DP, ensuring easy integration into various industrial networks.

3. Can the ABB 2TLA020070R1700 be used in extreme temperatures?

• The PLC is designed to operate within a temperature range of 0°C to 60°C, making it suitable for most industrial environments.

4. What I/O capabilities does the ABB 2TLA020070R1700 have?

• The PLC features 32 digital inputs, 16 digital outputs, 8 analog inputs, and 8 analog outputs, offering versatile control over various devices.

5. Is the ABB 2TLA020070R1700 suitable for small-scale automation?

• Yes, its modular design makes it scalable, so it can be used in both small and large automation systems, offering flexibility as your needs grow.
