ABB

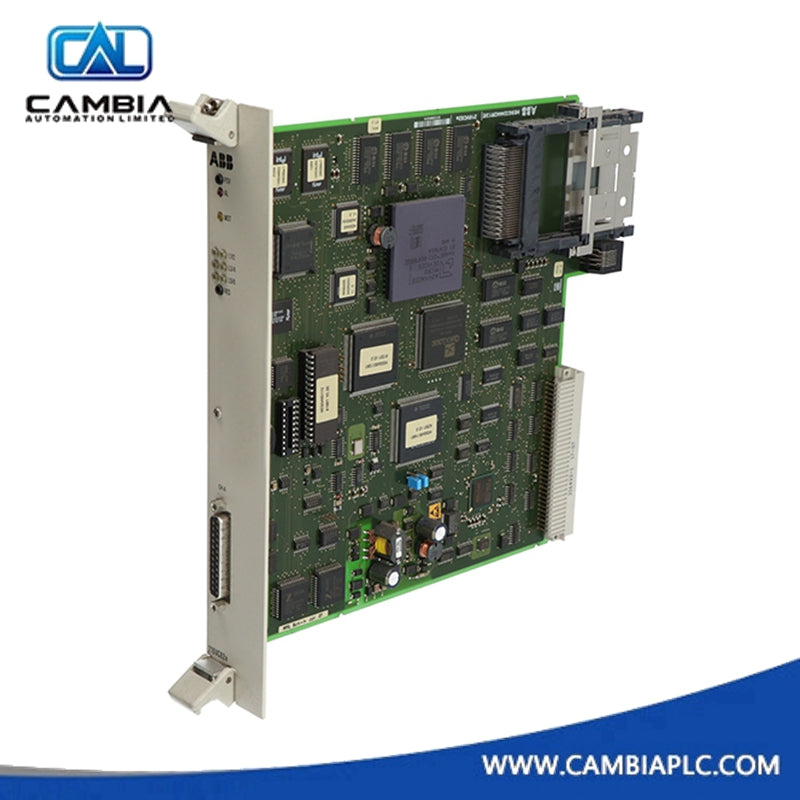

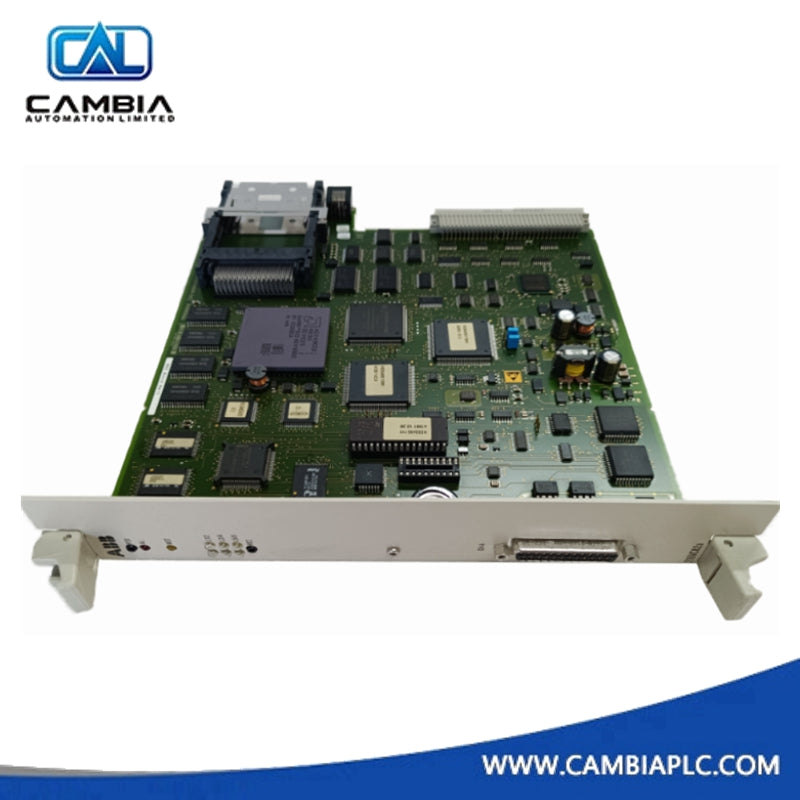

ABB 216VC62a Static Plug-In Processing Unit
In stock, ready to ship
Manufacturer: ABB
Product No.: 216VC62a
Product Type: Processing Unit
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The REG216VC62A (part of the REG216 series) is a static plug-in processing unit designed for digital signal processing in power system protection. It functions as the core unit, handling data processing and enabling communication with other units via a parallel bus.
Key Features:
-
Processor: 32-bit 80486DX-2
-
Software Storage: Flash EPROM (for application software)
-
Operating Data: Stored in RAM
-
Settings Storage: Non-volatile Flash EPROM
-
Communication Interface: Potential-free RS-423 for PC operation
-
Station Control Connection: For message transmission
-
Time Synchronization: For event time-tagging
-
Event Memory: Non-volatile with gold capacitor buffer
-
Space Requirement: Occupies two divisions in a 19", 6U equipment rack
Technical Specifications:
-
Data Bus: Parallel bus B448C, supporting up to 32 master units
-
Bus Standard: Based on IEEE P 896 (future bus)
-
Transmission: Asynchronous data with handshake, 16-bit time-multiplexed addresses and data
-
Power Supply: 24V DC auxiliary supply, with redundant options available
-
Data Integrity: Monitors and checks each data exchange
-
Memory Capacity: 256 events with 1ms time marker resolution
-
Synchronization Accuracy: Less than 10 seconds deviation per day without remote synchronization
