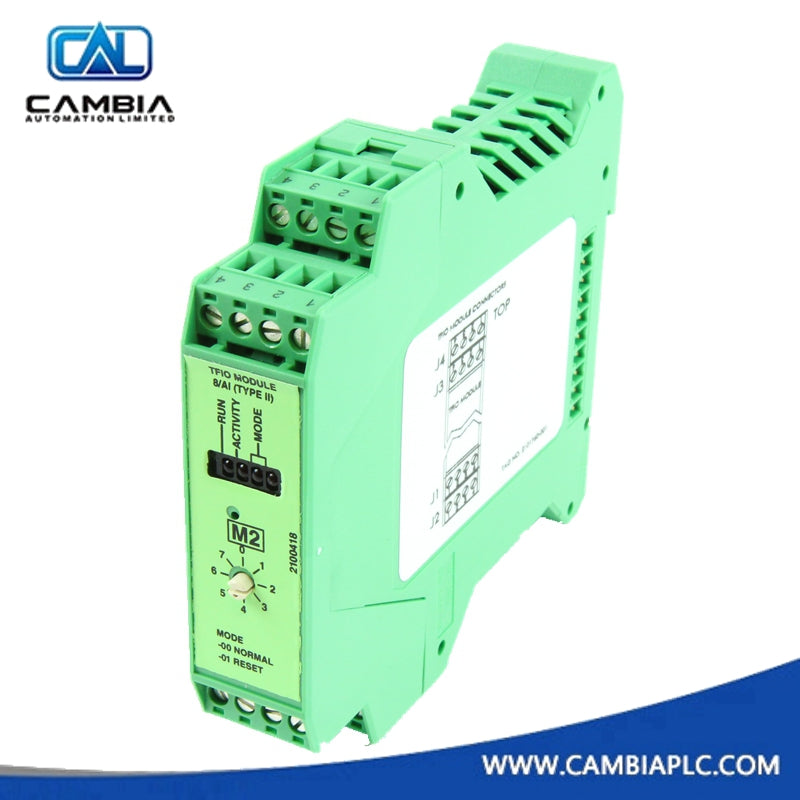

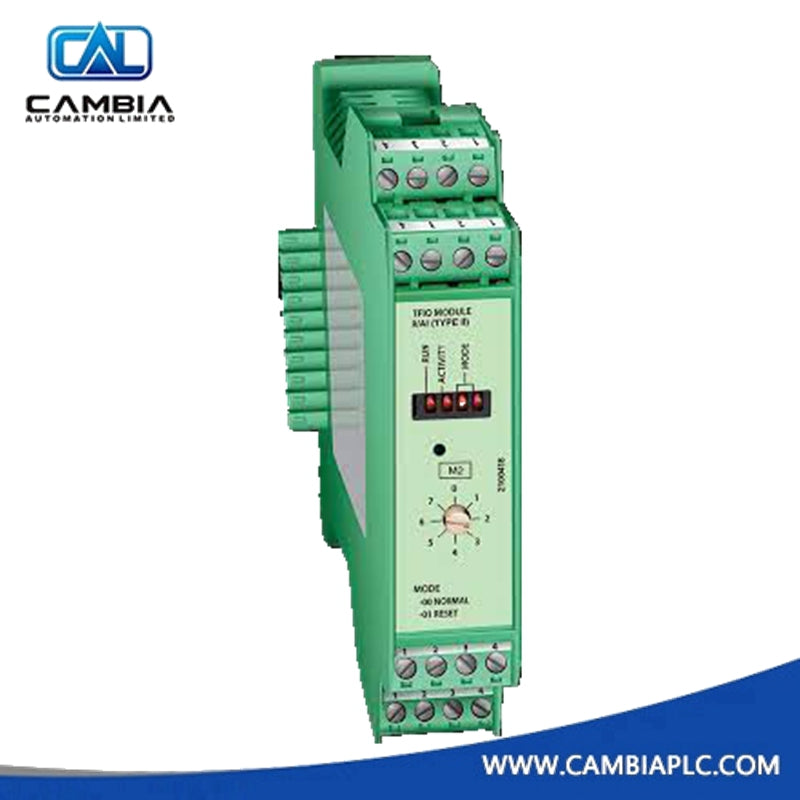

ABB 2100418-003 8-Point Analog Input Module

The ABB 2100418-003 configurable 8-point analog input module delivers precise, stable signal acquisition for demanding industrial automation environments. Designed for flexibility, this module supports multiple analog signal types, enabling accurate data collection from diverse field instruments. Moreover, ABB engineered this module for seamless integration within advanced control systems requiring reliability and measurement consistency.

The 2100418-003 analog input module provides engineers with configurable channels, simplifying system design while improving operational transparency. Therefore, it becomes a reliable foundation for process monitoring, closed-loop control, and data-driven automation strategies.

Functional Highlights & Key Benefits

• The ABB 2100418-003 supports eight individually configurable analog input channels for maximum application flexibility.

• Moreover, high-resolution signal processing ensures accurate measurement results even in electrically noisy industrial environments.

• In addition, flexible configuration reduces hardware variation, simplifying spare parts management and long-term maintenance planning.

• Therefore, engineers can standardize control architectures without compromising measurement accuracy or system performance.

• Its robust industrial design supports continuous operation in harsh production and process automation conditions.

Technical Data & Specifications

• Brand: ABB

• Model: 2100418-003

• Product Type: Configurable 8-point analog input module

• Number of Inputs: 8 analog channels

• Input Signal Types: Configurable voltage and current signals

• Resolution: High-resolution analog-to-digital conversion

• Channel Configuration: Individually configurable per input

• Supply Voltage: 24 V DC

• Electrical Isolation: Designed for reliable signal integrity

• Mounting Method: System rack or panel-mounted configuration

• System Compatibility: ABB industrial control and automation platforms

• Operating Environment: Suitable for standard industrial temperature ranges

Typical Applications & System Integration

The ABB 2100418-003 analog input module is widely used in process automation, manufacturing, and energy management systems. For instance, it reliably captures signals from pressure transmitters, flow meters, temperature sensors, and level instruments. Moreover, its configurability supports both retrofit projects and new system designs with minimal engineering effort.

In addition, this module integrates seamlessly into ABB control architectures, supporting scalable and distributed automation solutions. Therefore, it suits centralized control cabinets as well as modular, machine-level automation systems.

Support & Reliability

ABB supports the 2100418-003 with comprehensive technical documentation and long-term product lifecycle management. Consequently, system integrators benefit from predictable maintenance planning and reduced operational risk. The module’s industrial-grade construction ensures dependable performance, even under continuous operation and challenging environmental conditions.

FAQ

What is the main function of the ABB 2100418-003 analog input module?
It collects and converts multiple analog field signals into accurate digital data for control systems.

How many analog inputs does the 2100418-003 module provide?
The module provides eight individually configurable analog input channels.

Which signal types can this analog input module handle?
It supports configurable voltage and current input signals for various industrial sensors.

Is the ABB 2100418-003 suitable for process automation applications?
Yes, it is ideal for process control systems requiring stable, high-accuracy analog measurements.

Does this module integrate with ABB control platforms easily?
Yes, it is designed for seamless integration within ABB industrial automation architectures.
