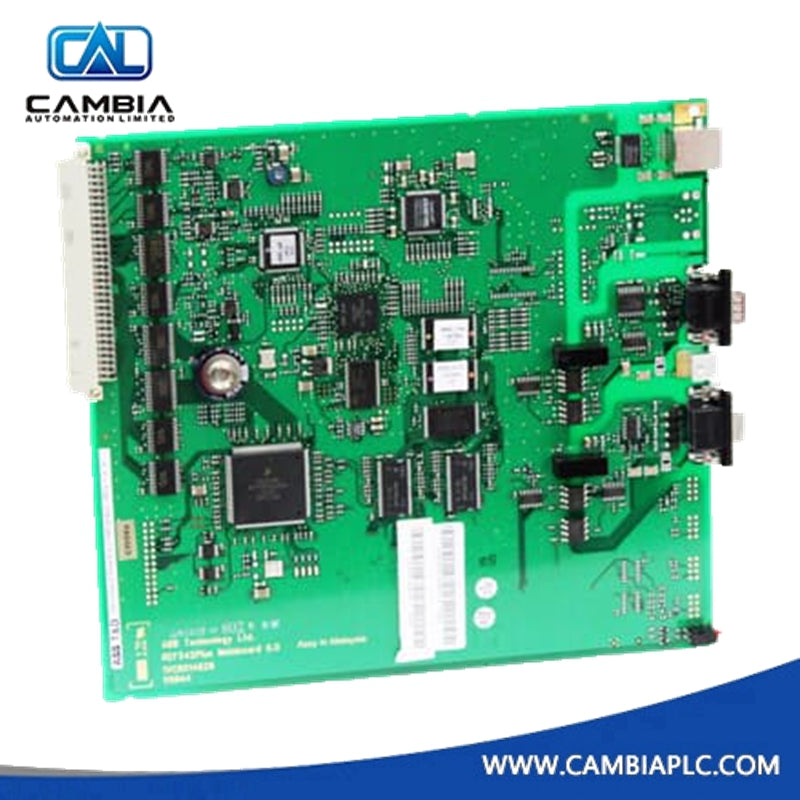

ABB 1VCF750132807 BIO3 Module for REF542plus Systems

1. Product Overview

The ABB 1VCF750132807 BIO3 module delivers dependable performance for feeder protection and control in modern medium-voltage digital substations. It integrates seamlessly with the ABB REF542plus platform, enabling stable system behavior in demanding utility and industrial environments. Moreover, its compact footprint and rugged construction provide long-term operational reliability while minimizing installation complexity.

2. Key Features and Functional Highlights

• The module supports 176–264 VDC operation, ensuring stable performance across wide voltage variations.

• Its Level 1 certification demonstrates consistent reliability within critical protection applications.

• Moreover, the robust housing and compact dimensions simplify panel layout and enhance service accessibility.

• The module is designed specifically for REF542plus feeder protection systems, enabling precise control functions.

• Therefore, engineers can achieve high-quality operation with minimal configuration effort.

3. Technical Specifications

General Information

• Manufacturer: ABB

• Part Number: 1VCF750132807

• Product Type: BIO3 Module

• System Compatibility: ABB REF542plus

• Application: Feeder protection and control systems

• Certification Level: Level 1

• Country of Origin: Malaysia / Sweden

• Condition: In stock

Electrical Parameters

• Voltage Range: 176–264 VDC

• Nominal Voltage: 143 VDC

Mechanical & Environmental

• Dimensions: 22.5 × 75 × 110 mm

• Weight: 0.46 kg

• Operating Environment: Medium-voltage digital substations

• Customs Tariff Number: 85389091

• Minimum Order Quantity: 1 piece

4. Typical Applications and Integration Scenarios

The ABB 1VCF750132807 is widely used in digital substations where reliable DC-powered modules support critical protection logic. In addition, utilities deploy the module in feeder automation systems to achieve stable operational performance under challenging grid conditions. For instance, the module’s wide voltage tolerance ensures consistent behavior during transient disturbances and fluctuating station loads.

5. Support, Maintenance, and Reliability

Service teams value the module’s predictable performance and minimal maintenance requirements, which help streamline long-term substation asset management. Moreover, its rugged design withstands electrical stress commonly encountered in high-demand environments. Therefore, operators can rely on the module to maintain consistent system availability over extended service periods.

6. FAQ

Q1: Is the ABB 1VCF750132807 compatible with REF542plus systems?
Yes, the module is designed specifically for ABB REF542plus feeder protection applications.

Q2: What voltage range does the module support?
The module operates reliably between 176–264 VDC, with a 143 VDC nominal rating.

Q3: Where is the product manufactured?
The module is manufactured in Malaysia, with system origin listed as Sweden.

Q4: What environment is this module intended for?
It is engineered for medium-voltage digital substations, supporting both utility and industrial installations.

Q5: Is the module available for immediate shipping?
Yes, the ABB 1VCF750132807 is currently in stock, subject to order quantity and logistics arrangements.
