1. Product Overview

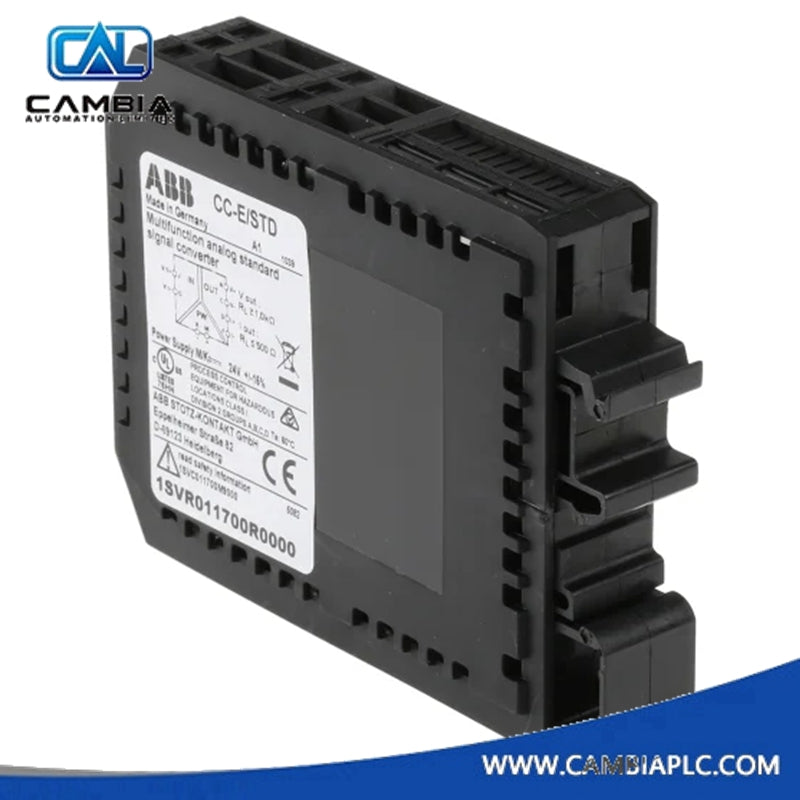

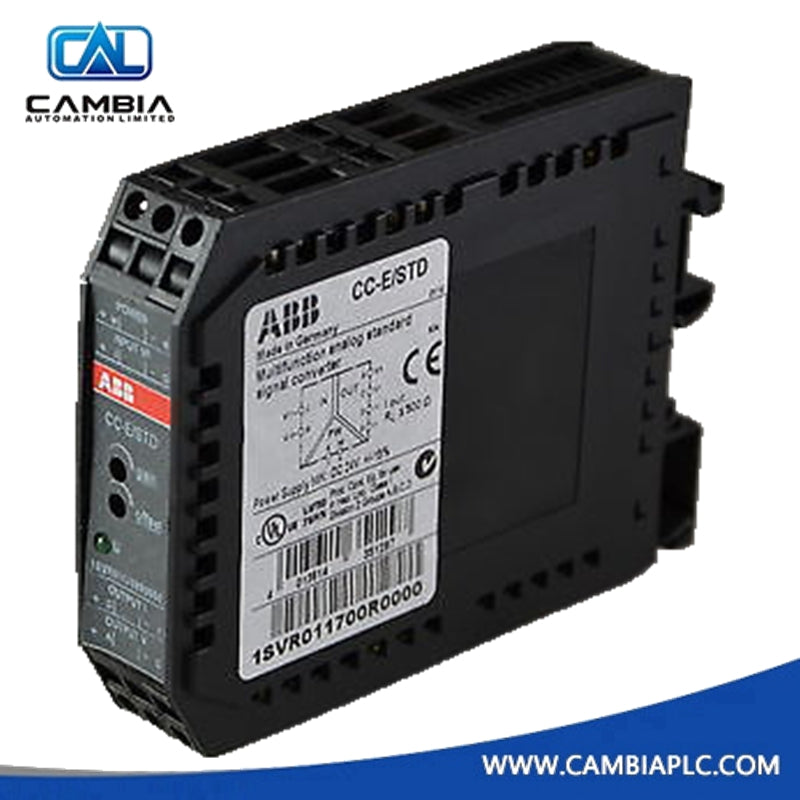

The ABB CC-E/STD (1SVR011700R0000) Analog Signal Converter delivers stable and accurate signal conditioning for modern industrial automation systems. It supports universal analog signal ranges while providing robust 3-way electrical isolation, which protects equipment from ground loop interference and ensures consistently precise signal transmission. Moreover, the compact housing and DIN-rail design allow easy installation, making the device ideal for both new system builds and retrofit applications.

2. Functional Highlights & Key Benefits

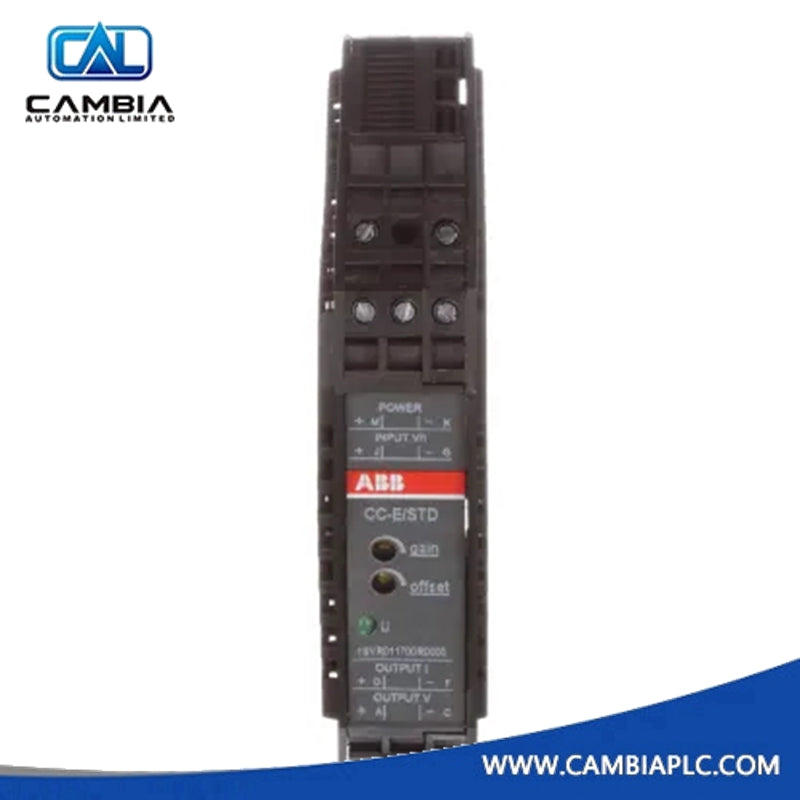

This converter offers multiple configurable input and output ranges, enabling seamless compatibility between field devices and control equipment. In addition, the unit features DIP-switch configuration and front-panel potentiometers, allowing technicians to adjust signal gain and offset with exceptional ease. A green LED provides clear indication of supply voltage presence, ensuring fast visual diagnostics during commissioning or maintenance. Therefore, engineers can rely on the CC-E/STD for dependable performance in demanding industrial environments.

3. Technical Data / Specifications

General Information

• Manufacturer: ABB

• Product Type: Analog Signal Converter

• Model: CC-E/STD

• Part Number: 1SVR011700R0000

• Origin: USA

• Weight: 0.088 kg

Electrical Characteristics

• Rated Control Supply Voltage: 24 V DC

• Power Loss: Approx. 2 W

• Electrical Isolation: 3-way isolation

• Supply Status Indicator: Green LED

Input Signal Ranges

• 0–5 V

• 0–10 V

• 0–20 mA

• 4–20 mA

Output Signal Ranges

• 0–5 V

• 0–10 V

• 0–20 mA

• 4–20 mA

Mechanical & Installation Data

• Housing: Industrial-grade enclosure

• Mounting: DIN rail

• Dimensions: 22.5 mm (W) × 107 mm (D) × 75 mm (H)

Compliance & Standards

• CAN/CSA C22.2 No.14

• CAN/CSA C22.2 No.213

• EN 50178

• IEC/EN 63000

• IEC/EN 61000-6-2

• IEC/EN 61000-6-4

• UL 1604

• UL 508

4. Typical Applications & System Integration

The CC-E/STD is widely used in process automation, energy management, and industrial machinery requiring consistent analog signal handling. For instance, engineers deploy it when adapting sensors to PLC inputs or stabilizing long-distance current loop communication. Moreover, its flexible configuration makes it suitable for OEM equipment, panel builders, and facility retrofits where mixed analog standards must be unified.

5. Support & Maintenance

Technicians benefit from straightforward front-panel access, allowing rapid calibration when on-site tuning becomes necessary. In addition, ABB maintains extensive documentation and global support, ensuring long-term serviceability and dependable product lifecycle management.

FAQ

Q1: What isolation method does the CC-E/STD provide?
It uses 3-way isolation to separate input, output, and power supply circuits effectively.

Q2: How are the signal ranges configured?
Users can select the range via lateral DIP switches and adjust fine settings using front potentiometers.

Q3: Can this converter be used with both voltage and current signals?
Yes, it supports several voltage and current input and output configurations.

Q4: Is the converter suitable for harsh industrial environments?
Yes, it meets numerous industrial EMC and safety standards, ensuring reliable operation.
