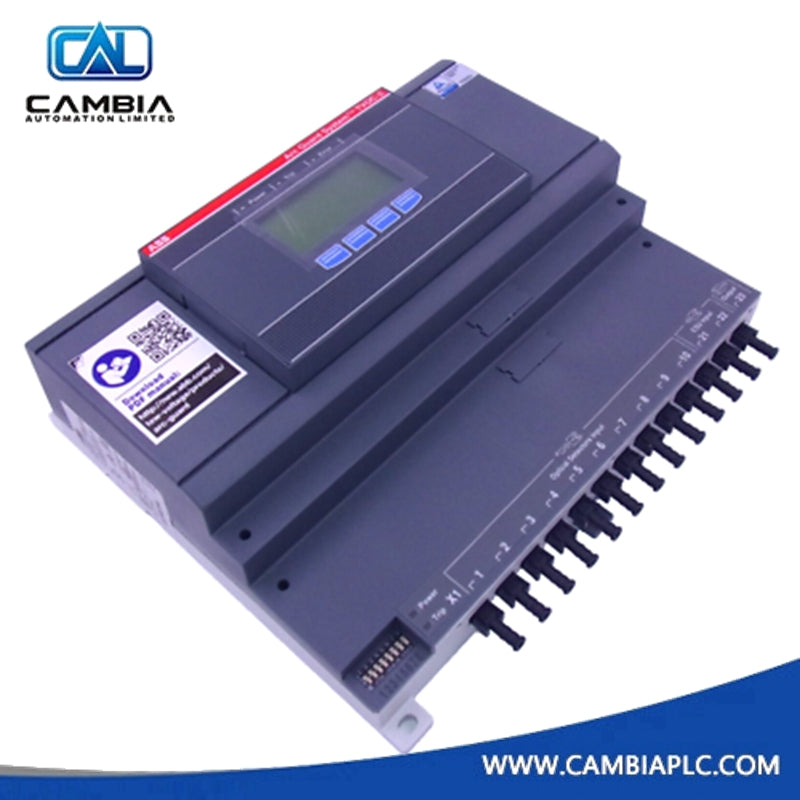

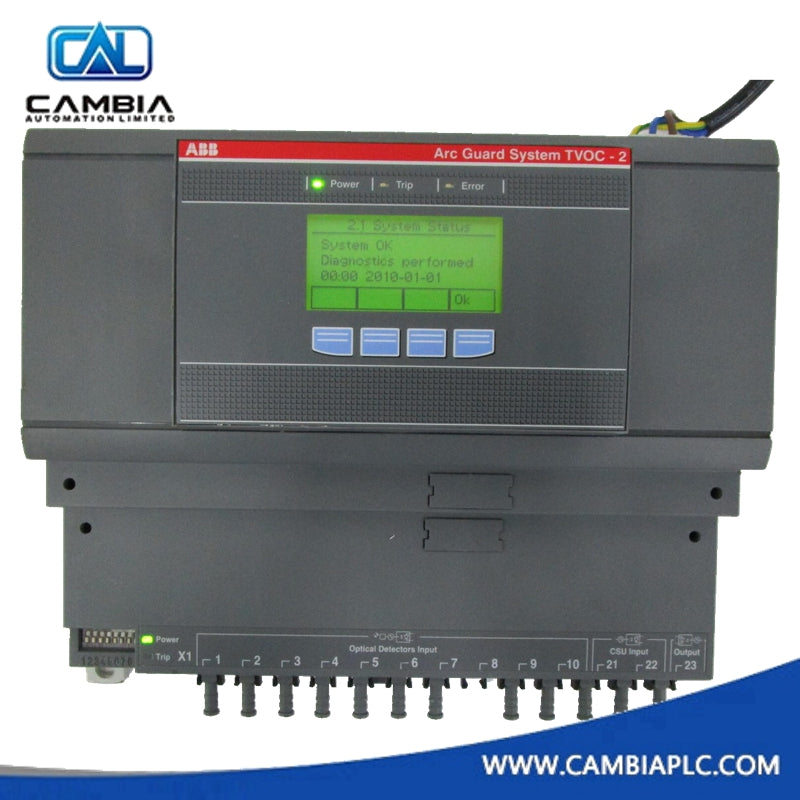

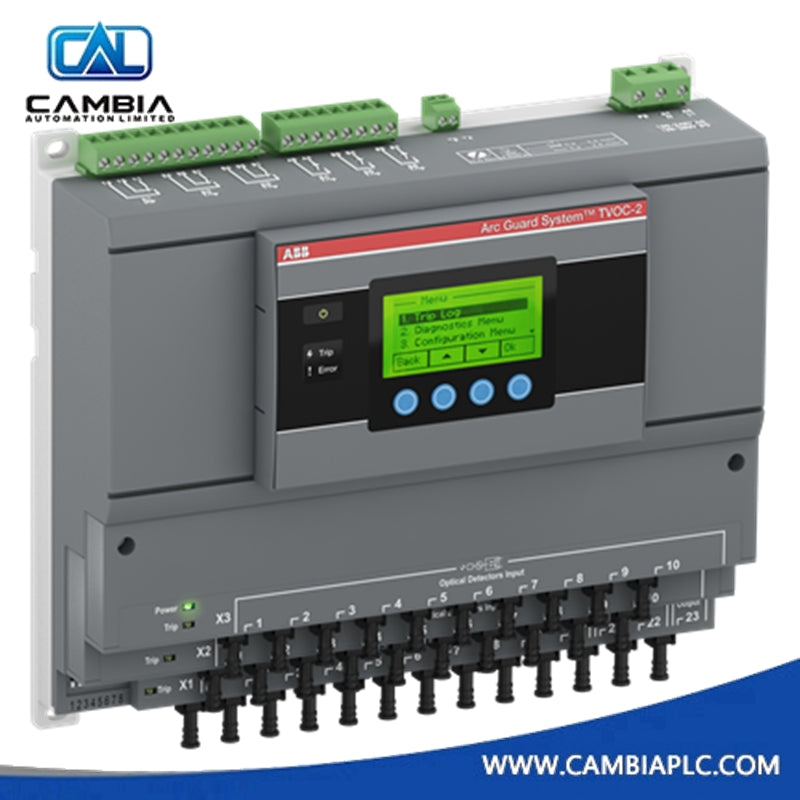

ABB 1SFA664001R1001 Arc Monitor
In stock, ready to ship
Manufacturer: ABB
Product No.: 1SFA664001R1001
Product Type: Arc Monitor
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Extended Product Type: TVOC-2-240
Product ID: 1SFA664001R1001
EAN: 7320500382172
Catalog Description:
TVOC-2-240 Arc Monitor
Long Description:
The TVOC-2 Arc Guard System is an arc protection relay designed to mitigate arc faults and protect both personnel and equipment. The arc monitor serves as the main unit of the system, detecting arc light and sending an electrical signal via fast IGBT contacts within 1 ms to a nearby breaker. This action interrupts power and extinguishes the arc.
The arc monitor supports 10 detector inputs and can trip up to three breakers with zone selectivity. Up to 2 extension units increase the number of light detectors to 30. The system includes an HMI that can be mounted outside the switchgear door. Detectors are available in various lengths to suit full switchgear designs.
Supply Voltage: 100…250 V DC or 100…240 V AC, 50/60 Hz.
Accessories: Current sensing units, optical cables, cable straps, and other components.
Environmental Conditions
-
Ambient Air Temperature (Operation): -25 … +55 °C
-
Ambient Air Temperature (Storage): -25 … +55 °C
Dimensions
-
Product Net Width: 210 mm
-
Product Net Height: 230 mm
-
Product Net Depth / Length: 80 mm
-
Product Net Weight: 1.2 kg
External Classifications and Standards
-
ETIM 9: EC002911 - Arc detection and mitigation system
-
ETIM 10: EC002911 - Arc detection and mitigation system
-
IDEA Granular Category Code (IGCC): 3594 >> Interface module
-
Object Classification Code: B
-
UNSPSC: 32151802
-
WEEE Category: 5. Small Equipment (No external dimension exceeds 50 cm)
