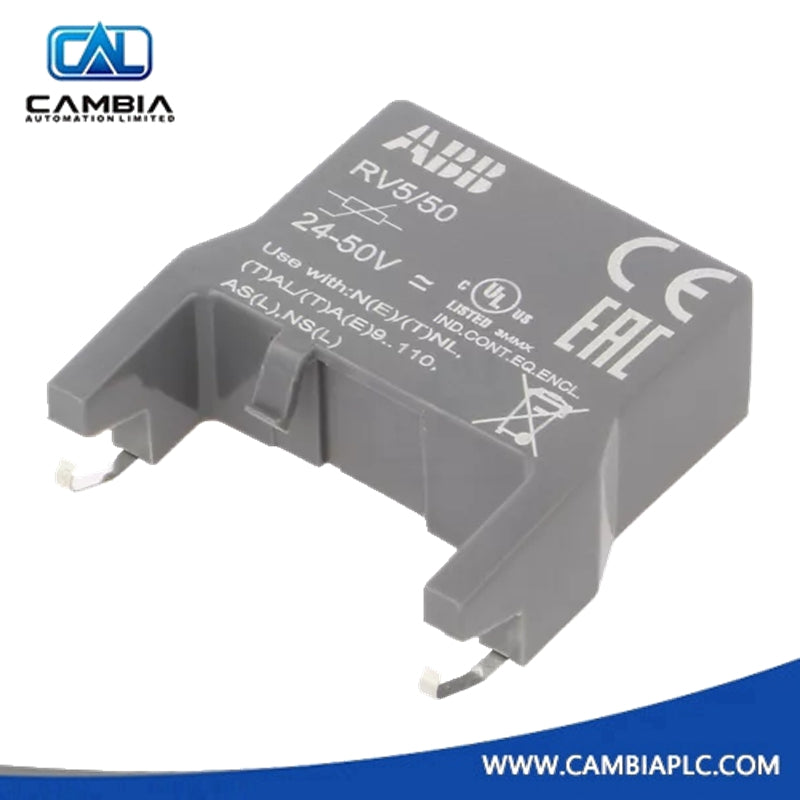

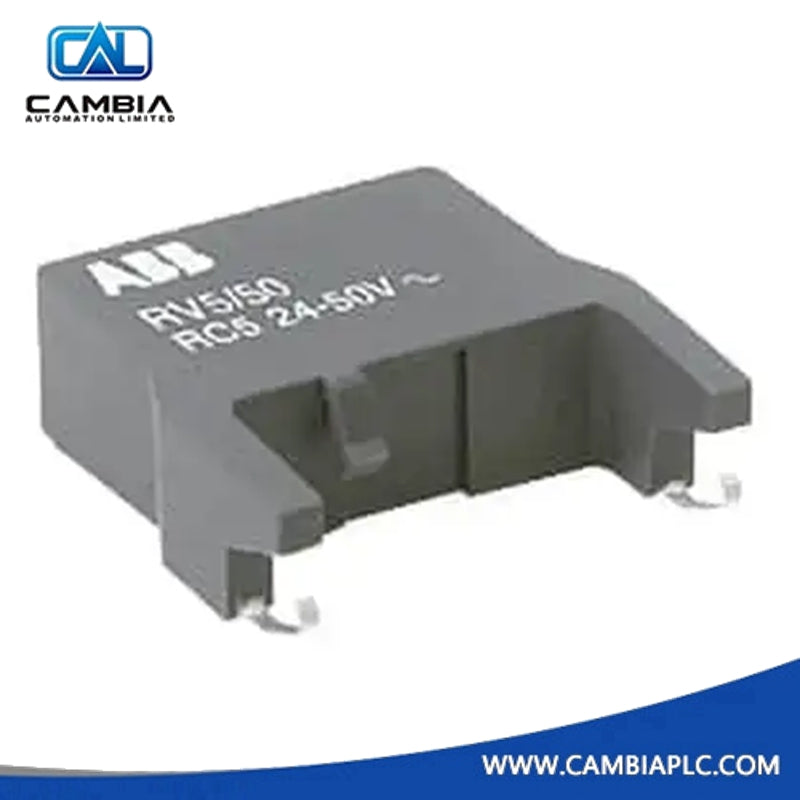

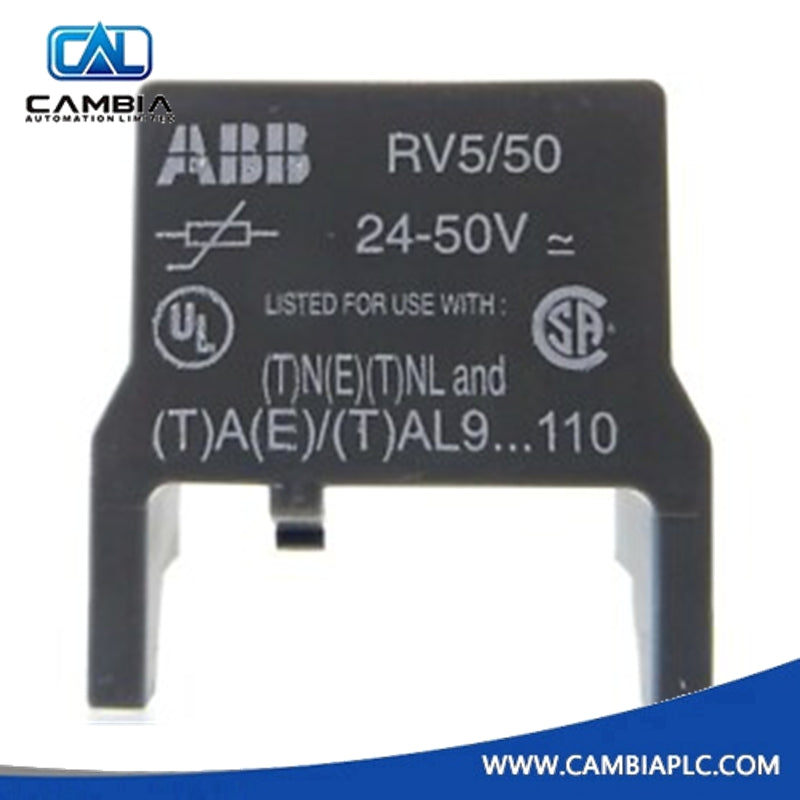

ABB 1SBN050010R1000 Varistor Surge Suppressor

Extended Product Type: RV5/50
Product ID: 1SBN050010R1000
EAN: 3471522121325

Catalog Description:
RV5/50 Surge Suppressor

Long Description:
The RV5/50 is a varistor surge suppressor designed to reduce maximum overvoltage peaks and to limit—or even eliminate—high pre-damping voltage frequencies. It is intended for use with:

• AC-operated conventional contactors for rated control circuit voltages between 24 … 50 V AC, 50/60 Hz

• DC-operated conventional contactors for rated control circuit voltages between 24 … 50 V DC

Inductive circuit operation generates overvoltages, especially when the contactor coil opens. The electromagnetic energy stored during coil energization is released on opening as high-amplitude surges, which can reach several kilovolts. These surges may cause issues such as interference with electronic devices, insulation breakdown, or even damage to sensitive components.

Note:
A varistor is a resistor whose resistance drops significantly when a specific voltage threshold is exceeded.

Advantages:

• The surge suppressor can be clipped onto the top or side of the contactor or relay base without altering the device's overall dimensions.

• High energy absorption and effective damping

• Unpolarized design

Drawback:

• Voltage clipping begins at the varistor’s operating voltage, allowing the voltage front to rise up to that point.

Dimensions

• Product Net Width: 30.25 mm

• Product Net Depth / Length: 32.4 mm

• Product Net Height: 10.5 mm

• Product Net Weight: 0.015 kg

Container Information

Package Level 1:

• Type: Blister, 2 pieces

• Width: 65 mm

• Depth / Length: 96 mm

• Height: 12 mm

• Gross Weight: 0.03 kg

• EAN: 3471522121325
