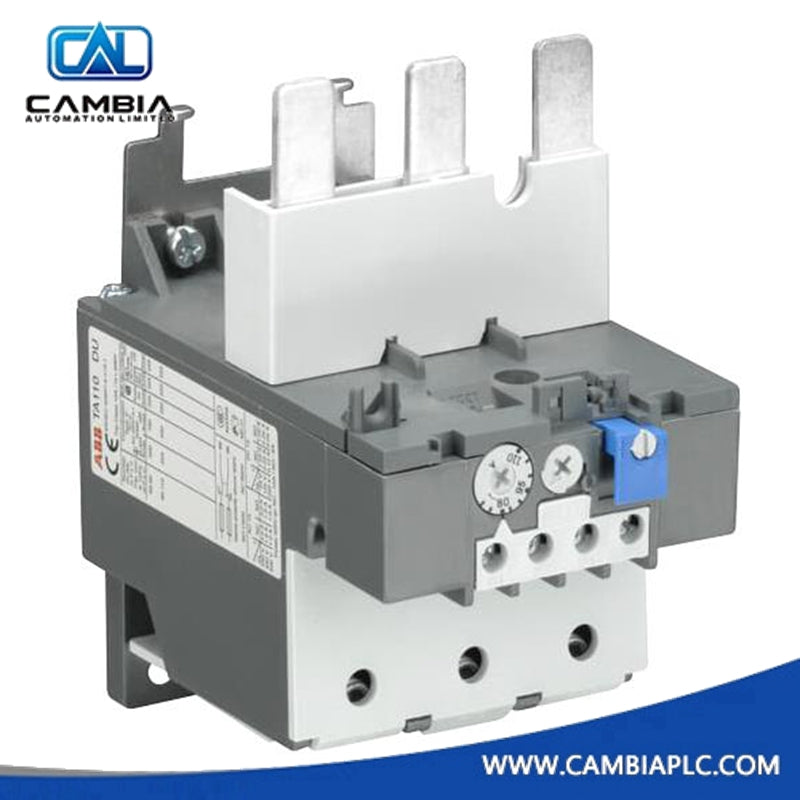

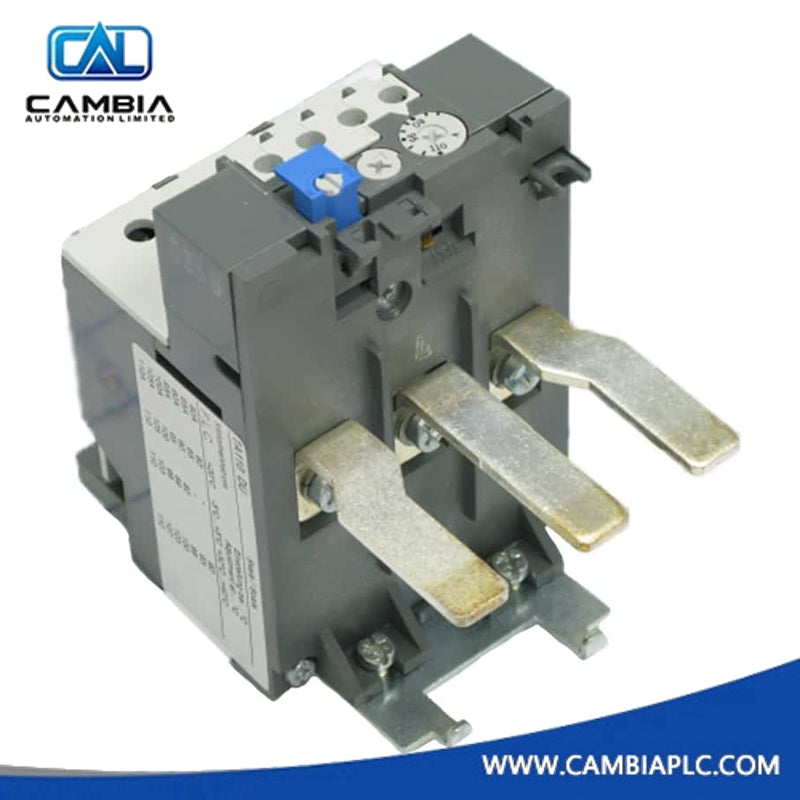

ABB 1SAZ411201R1002 80-110A Thermal Overload Relay
In stock, ready to ship
Manufacturer: ABB
Product No.: 1SAZ411201R1002 80-110A
Product Type: Thermal Overload Relay
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB TA200DU-110 relay protects motors in demanding industrial systems and therefore ensures reliable operation in continuous duty. It manages overload and phase-loss conditions with a class 10A trip curve, and it improves system safety through a clear trip indicator. It belongs to the ABB TA series and works seamlessly with ABB block contactors.
Performance & Features
The ABB TA200DU-110 relay offers fast current detection and therefore responds quickly during overload events. It includes temperature compensation and maintains stable performance across wide thermal ranges. It supports automatic or manual reset, and it provides both a STOP button and a Test function to streamline maintenance tasks.
Technical Specifications
Electrical & Functional Parameters
-
Trip class: 10A
-
Current range: 80–110 A
-
Contacts: 1 NC trip contact, 1 NO signal contact
-
Reset mode: Automatic or manual
-
Mechanism: Trip-free internal design
-
Interface: Integrated STOP and Test control buttons
-
Mounting: Direct mounting on ABB block contactors
Dimensions & Weight
| Parameter | Value |
|---|---|
| Width | 104 mm |
| Height | 151 mm |
| Depth / Length | 126 mm |
| Net Weight | 0.76 kg |
Application Benefits
The ABB TA200DU-110 relay improves motor uptime because it reacts quickly to abnormal loading. It reduces wiring complexity through direct mechanical coupling with ABB contactors, and it supports compact panel layouts with its balanced form factor. It also provides clear front-panel status indication, which simplifies troubleshooting.
