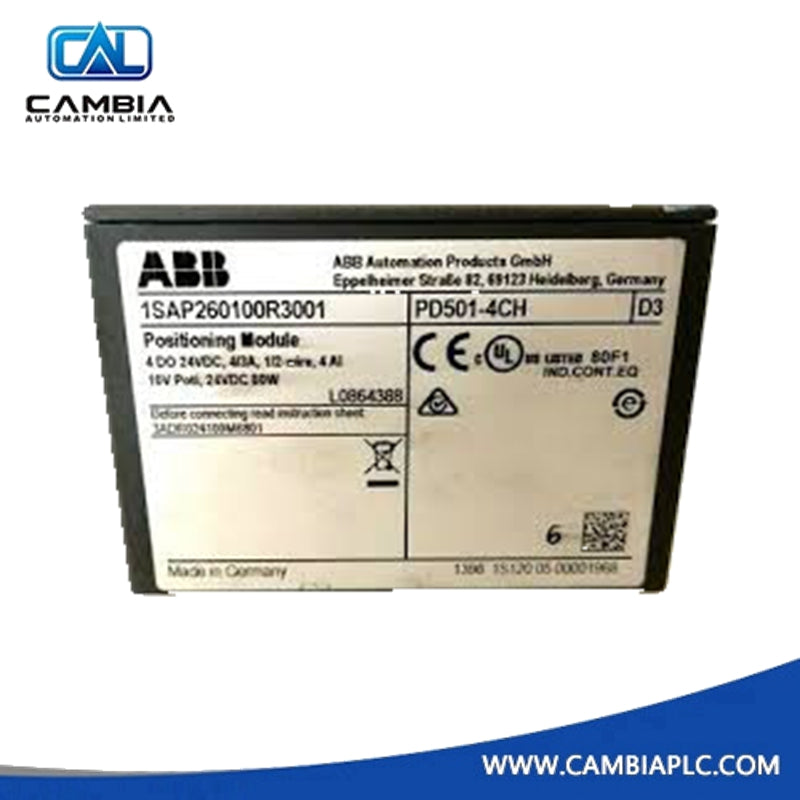

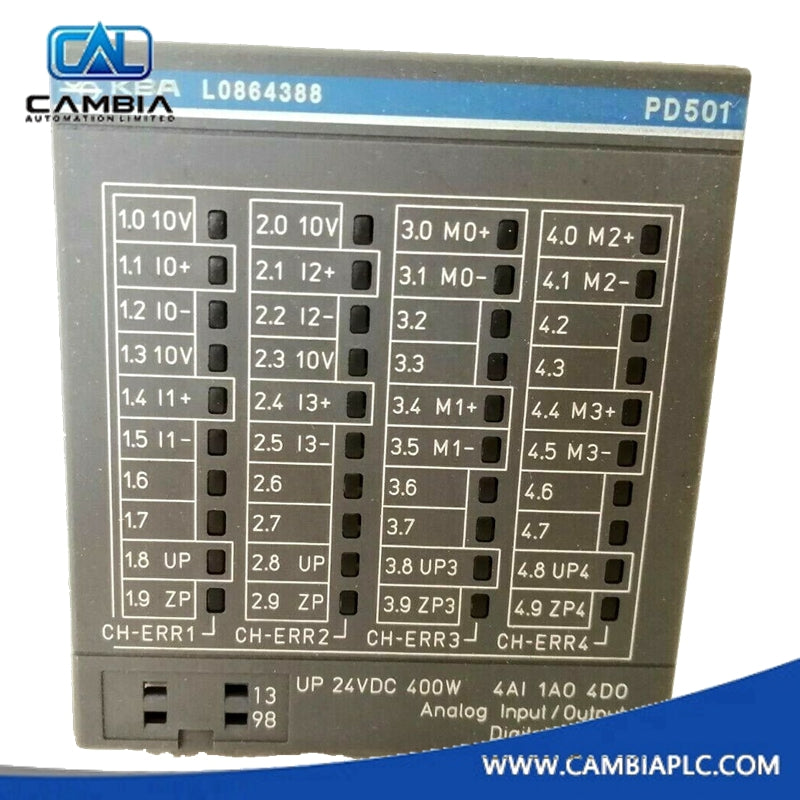

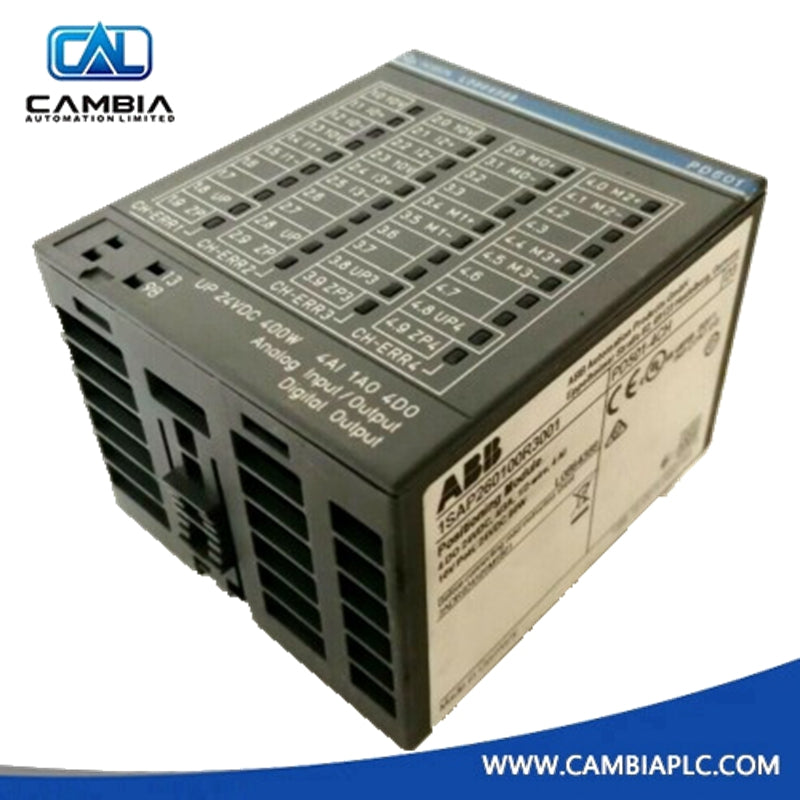

ABB 1SAP260100R3001 PD501-4CH Positioning Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 1SAP260100R3001 PD501-4CH
Product Type: Positioning Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Part Number
1SAP260100R3001 (PD501-4CH)
Manufacturer
ABB
Product Type
Positioning Module
Country of Origin
Sweden
General Information
-
Extended Product Type: PD501-4CH
-
Product ID: 1SAP260100R3001
-
ABB Type Designation: PD501-4CH
-
EAN: 4016779653855
-
Catalog Description:
PD501-4CH: S500 positioning module, 4 channels, KBA -
Long Description:
PD501-4CH: S500 positioning module with 4 channels, KBA
Dimensions
-
Product Net Weight: 0.148 kg
-
Product Net Depth / Length: 62 mm
-
Product Net Height: 76 mm
-
Product Net Width: 67.5 mm
-
Gross Weight: 0.172 kg
Technical Specifications
-
Analog Inputs: 4 channels, 0 … 10 V for potentiometer, 12-bit + sign
-
Analog Outputs: 1 channel, 10 V for potentiometer
-
Output Voltage (Uout): 24 V DC
-
Output Current: 2 A
-
Degree of Protection: IP20
-
Supply Voltage: 24 V DC
Ambient Air Temperature
-
Operation: 0 … +60 °C
-
Storage: -40 … +70 °C
Additional Information
-
Product Main Type: PD501
-
Product Name: Distributed Automation I/Os
Environmental Information
-
SCIP: bb1d6314-085b-403a-be2e-2453ae3e0f77 (Germany, DE)
-
WEEE B2C / B2B: Business to Business
-
WEEE Category: 5 — Small Equipment (No External Dimension More Than 50 cm)
