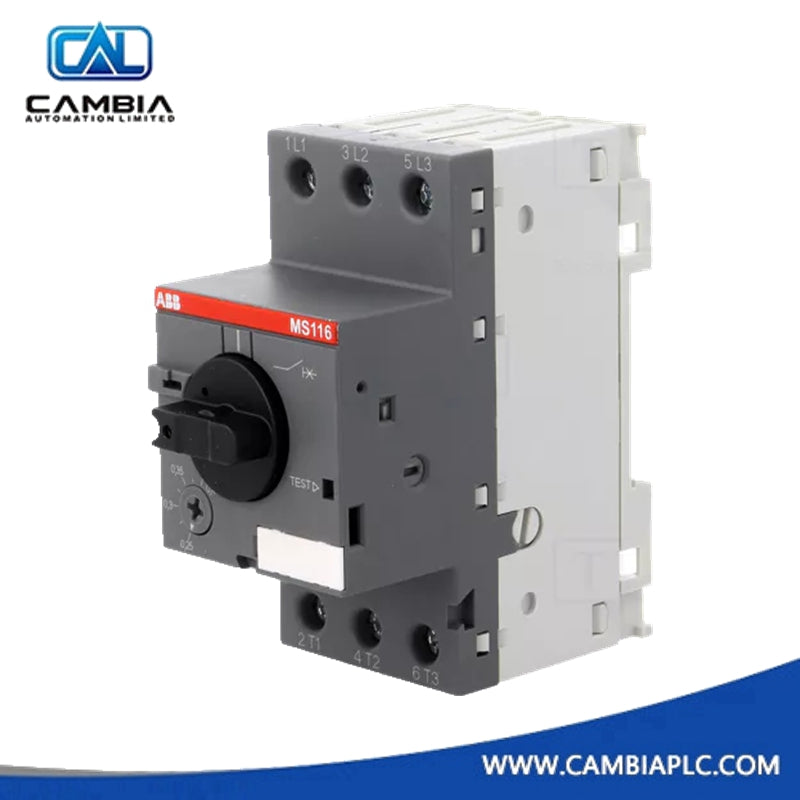

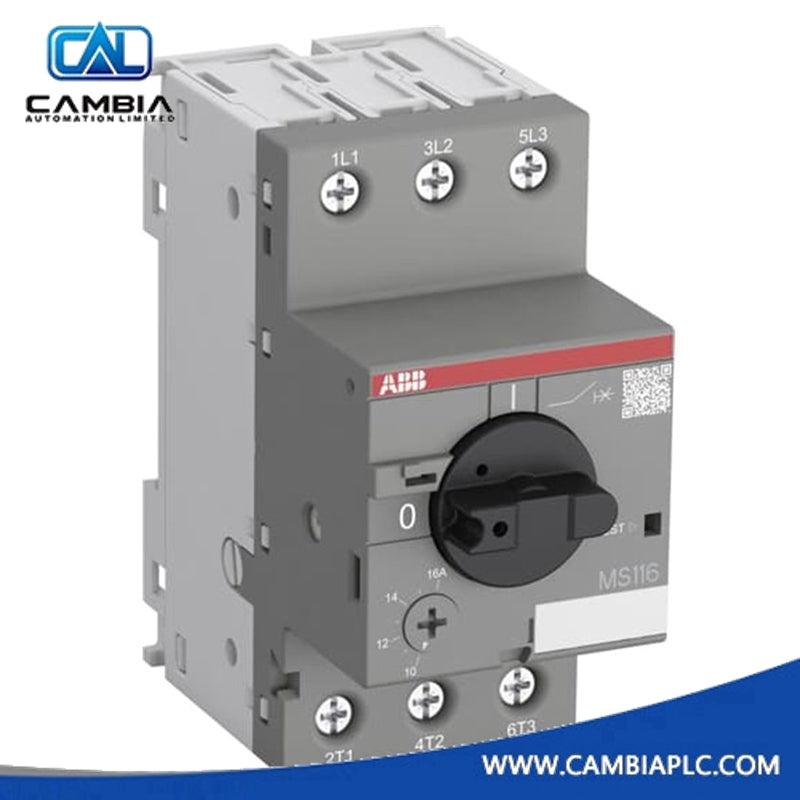

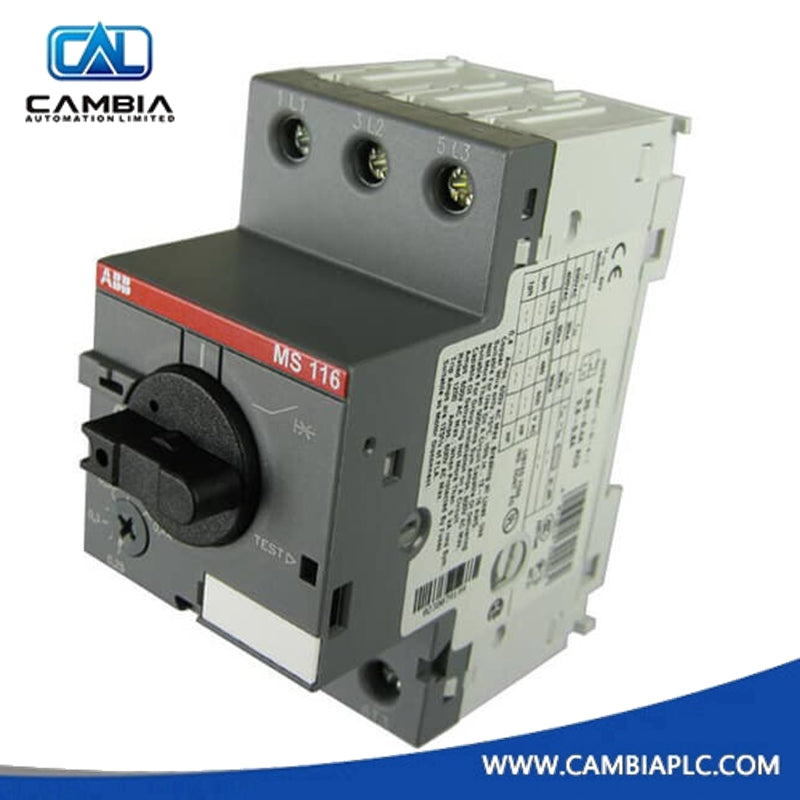

ABB 1SAM250000R1009 Manual Motor Starter
In stock, ready to ship
Manufacturer: ABB
Product No.: 1SAM250000R1009
Product Type: Manual Motor Starter
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
-
Product Net Width: 45 mm
-
Product Net Height: 90 mm
-
Product Net Depth / Length: 85.6 mm
-
Product Net Weight: 0.265 kg
General Information
-
Extended Product Type: MS116-6.3
-
Product ID: 1SAM250000R1009
-
EAN: 4013614320323
-
Catalog Description: MS116-6.3 Manual Motor Starter 4.0 … 6.3 A
-
Long Description:
The MS116-6.3 manual motor starter (also referred to as a motor protection circuit breaker or manual motor protector) is a compact 45 mm-wide device designed with a rated operational current of Ie = 6.3 A.
It is used for manually switching motors on and off and provides reliable protection—without requiring a fuse—against short-circuits, overload, and phase failures.
The device features a rated service short-circuit breaking capacity (Ics) of 50 kA at 400 VAC and a trip class of 10A.
Additional features include a built-in disconnect function, temperature compensation, a trip-free mechanism, and a rotary handle with a clear switch position indication.
Suitable for both three-phase and single-phase motor applications, the MS116-6.3 can be complemented with a range of accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase busbars, power in-feed blocks, and locking devices to prevent unauthorized adjustments.
