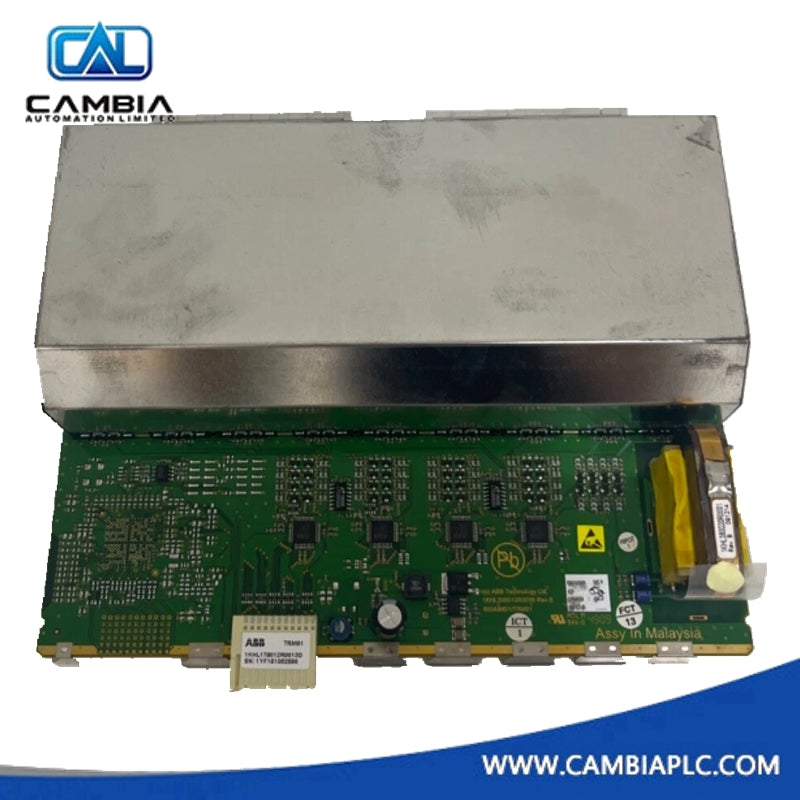

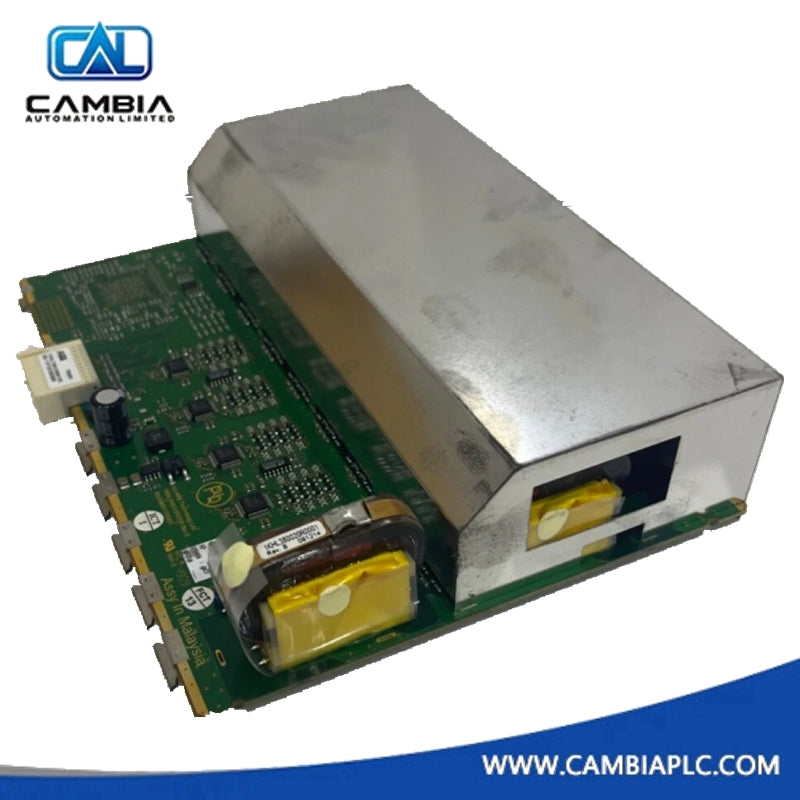

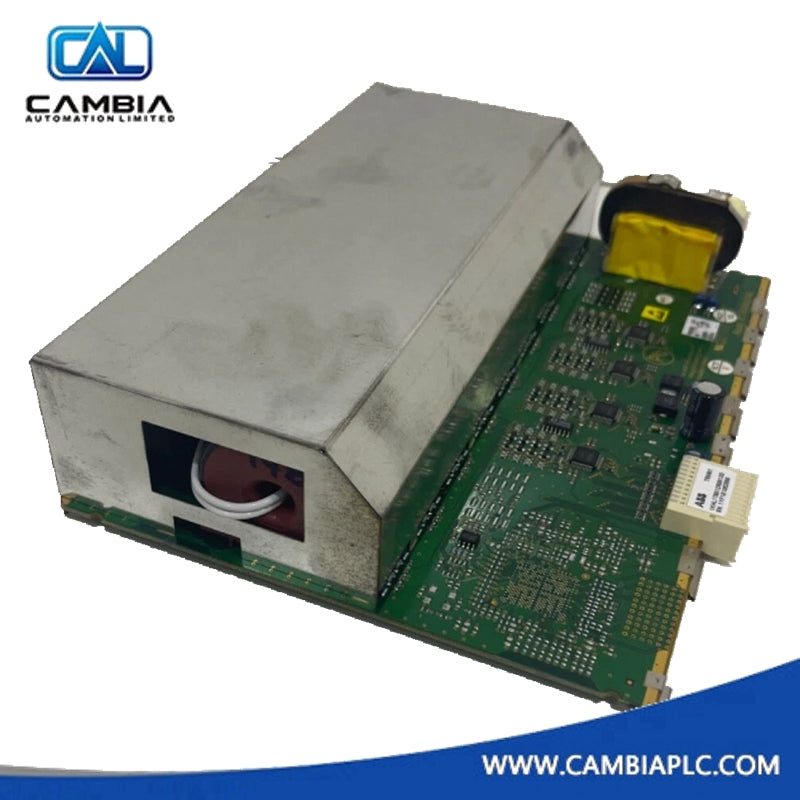

ABB 1KHL178012R0001M Display Unit
In stock, ready to ship
Manufacturer: ABB
Product No.: 1KHL178012R0001M
Product Type: Display Unit
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 1KHL178012R0001M is a compact and durable display unit engineered for ABB’s advanced protection relay systems, including the REC650 and REB650 series.
It provides a clear and responsive graphical interface, allowing operators to monitor system performance, view event data, and adjust protection settings directly from the front panel.
This device enhances operational reliability by streamlining relay configuration and improving accessibility in demanding industrial environments.
Key Features
-
Designed for seamless integration with ABB Relion® protection relays.
-
4.3-inch color display provides intuitive visualization of relay status and measurements.
-
24 V DC power input ensures stable and efficient operation.
-
Compact, lightweight form factor for easy panel installation.
-
Robust construction rated for extended temperature and humidity ranges.
-
Supports field configuration and firmware updates via standard ABB interfaces.
Technical Specifications
Model Number: 1KHL178012R0001M
Type: Display Unit
Compatible Series: REC650, REB650, and other ABB protection relays
Power Supply: 24 V DC (nominal)
Display Size: 4.3 inches
Operating Temperature: –20 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity Range: 5% to 95%, non-condensing
Dimensions: 100 mm × 100 mm × 50 mm
Weight: 0.5 kg
Applications
The ABB 1KHL178012R0001M is ideal for:
-
Front-panel monitoring and configuration of ABB protection relays.
-
Integration into REC650 or REB650-based substation automation systems.
-
Industrial control panels requiring reliable local display and relay supervision.
-
Smart grid and distribution automation systems where fast data access is essential.
