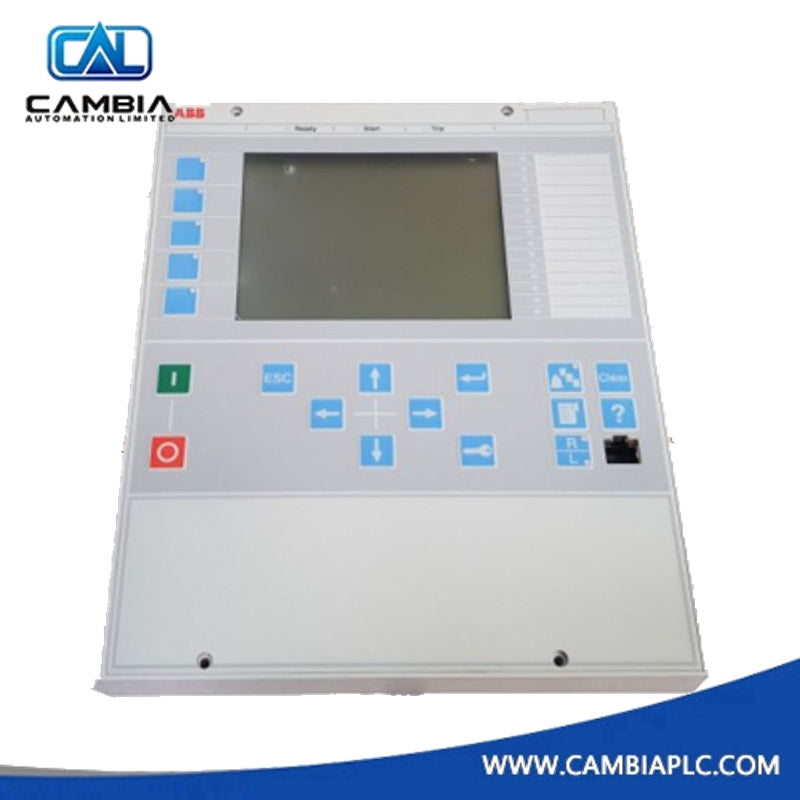

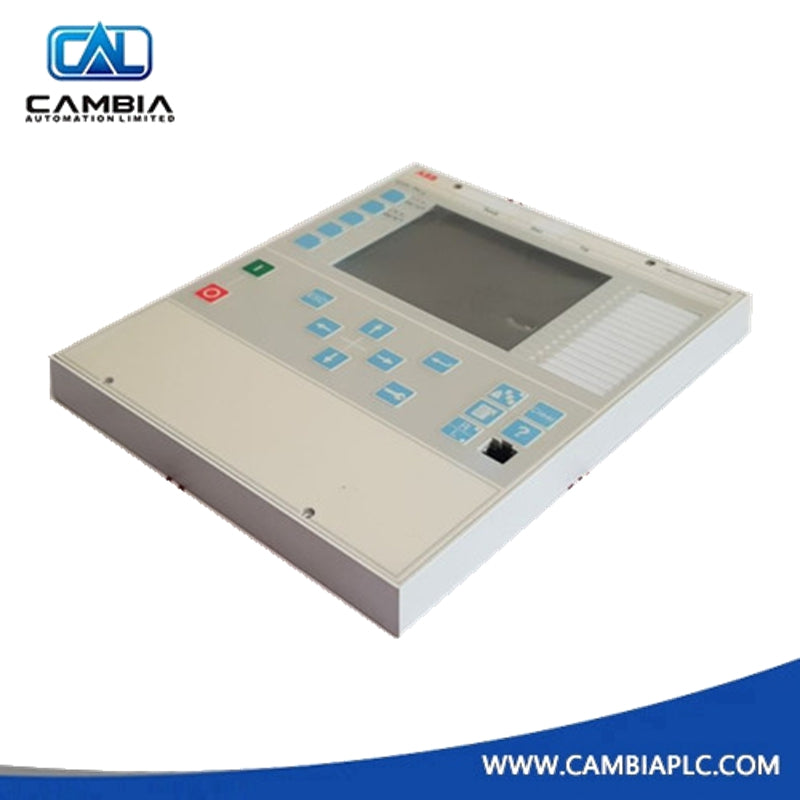

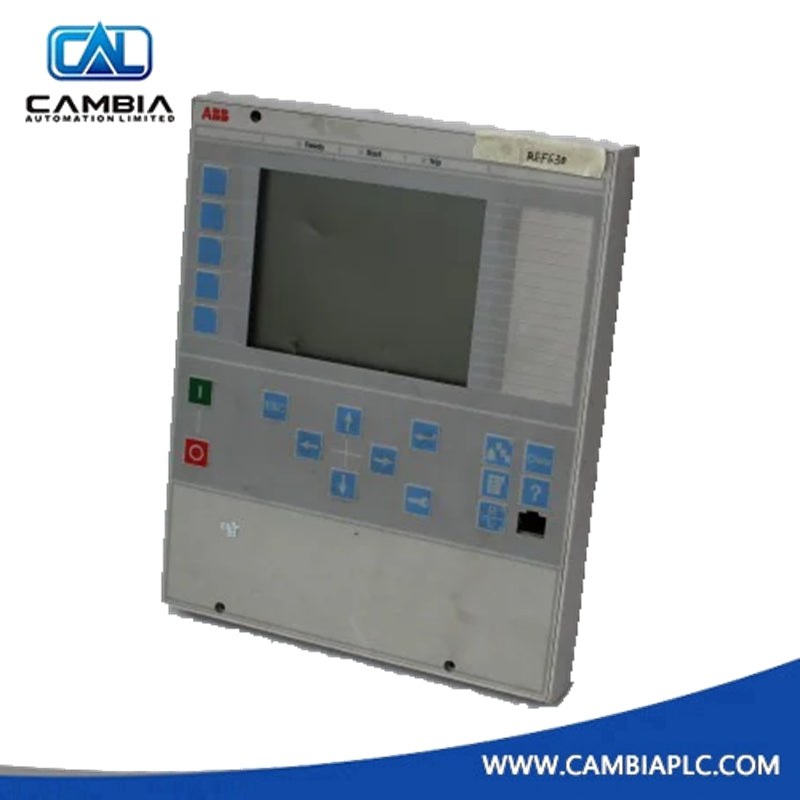

ABB 1KHL160006R0001C Line Distance Protection Unit
In stock, ready to ship
Manufacturer: ABB
Product No.: 1KHL160006R0001C
Product Type: Line Distance Protection Unit
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 1KHL160006R0001C, from the REL650 series, is a sophisticated line distance protection unit designed for overhead and cable transmission lines. It integrates high-speed distance zones, directional protection, and smart communication features. Because of its design by ABB’s Relion® platform, you obtain reliable protection, measurement and control in one package.
Technical Specifications
Below are key technical parameters for the unit:
| Parameter | Specification |
|---|---|
| Model | 1KHL160006R0001C |
| Series | REL650 (Relion® 650 series) |
| Protection Functions | Up to six distance zones, directional phase/earth fault, power-swing blocking |
| Communication Interfaces | IEC 61850, DNP3, IEC 60870-5-103 (various protocols) |
| Application Voltage Levels | Typical for 110-220 kV transmission line use |
| Dimensions & Weight | Refer to manufacturer manual (unit pack approx weight ~1.2 kg) |
| Human-Machine Interface | Local HMI with display, configurable LEDs and keypad for status and setting changes |
Key Features
-
The unit enables multi-zone distance protection with fast fault detection.
-
It supports standard communication protocols such as IEC 61850 for grid integration.
-
Its compact footprint and weight ensure easier installation in control panels.
-
The built-in HMI simplifies configuration and monitoring tasks for operators.
-
Designed by ABB under the Relion® family, it meets high reliability and technical quality standards.
