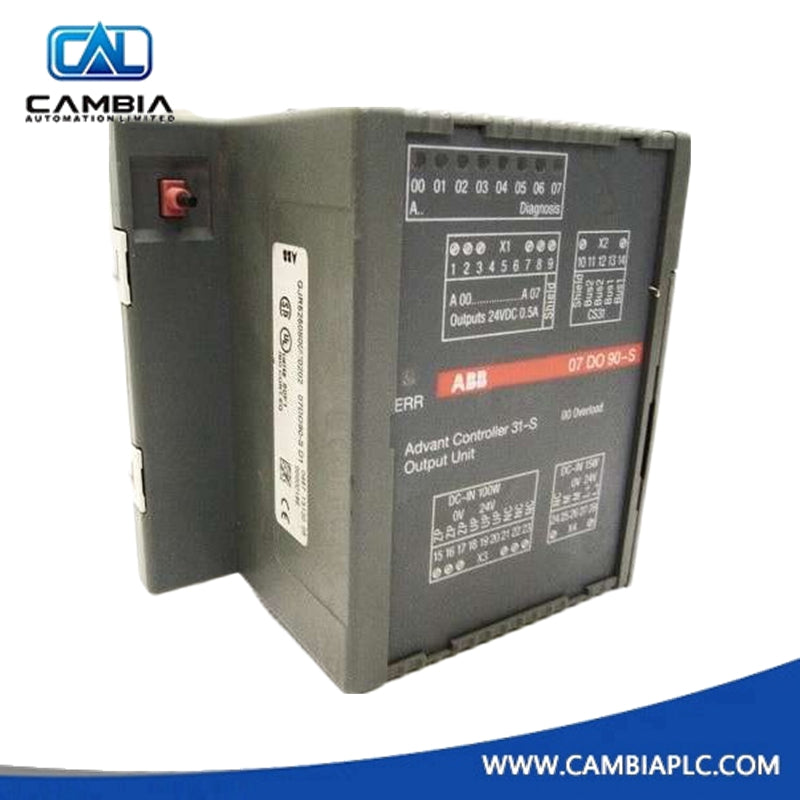

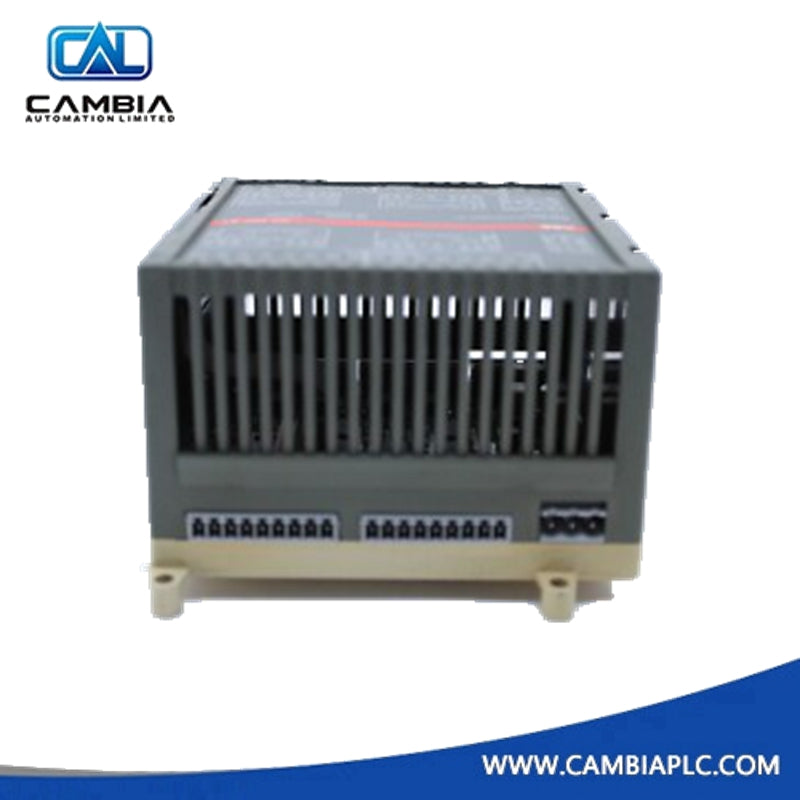

ABB 07DO90-S Digital Output Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 07DO90-S
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 07DO90-S is a high-performance digital output module designed for safety applications in industrial automation systems. With 8 digital outputs rated for 24VDC and 0.5A, this module provides precise and reliable control in distributed automation I/O systems. It operates through a CS31 safety-bus slave interface and is ideal for integration into systems that require safety features, offering superior performance and security for critical operations.
Key Features:
-
8 Digital Outputs (DO): Provides 24VDC with 0.5A output for precise control of connected devices.
-
Safety Interface: Uses CS31 safety-bus slave for secure communication and reliable performance.
-
Robust Design: Built to withstand harsh industrial conditions, including temperature variations and electromagnetic interference.
-
Versatile Integration: Compatible with ABB’s distributed automation systems for easy and quick installation.
-
Compact & Lightweight: Weighs only 700g, making it easy to install on standard DIN rails without taking up excessive space.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | 07DO90-S |
| Manufacturer | ABB |
| Product Type | Digital Output Module |
| Fieldbus Interface Type | CS31 Safety-Bus Slave |
| I/O Option | 8 Digital Outputs (DO) |
| Supply Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A |
| Degree of Protection | IP20 |
| Operating Temperature | 0 … +55 °C |
| Storage Temperature | -25 … +75 °C |
| Maximum Operating Altitude | 2000 m |
| Cable Cross-Section | 0.08 … 1.5 mm² |
| Mounting Type | DIN Rail (TH35-15 & TH35-7.5) |
| Terminal Type | Screw Terminals, Pluggable |
| Product Depth | 85 mm |
| Product Net Width | 120 mm |
| Product Net Height | 140 mm |
| Weight | 0.7 kg |
Environmental and Compliance:
-
RoHS Compliance: 1SAA960005-4401
-
WEEE Category: 5 (Small Equipment)
-
eClass Classification: 27-24-22-02
