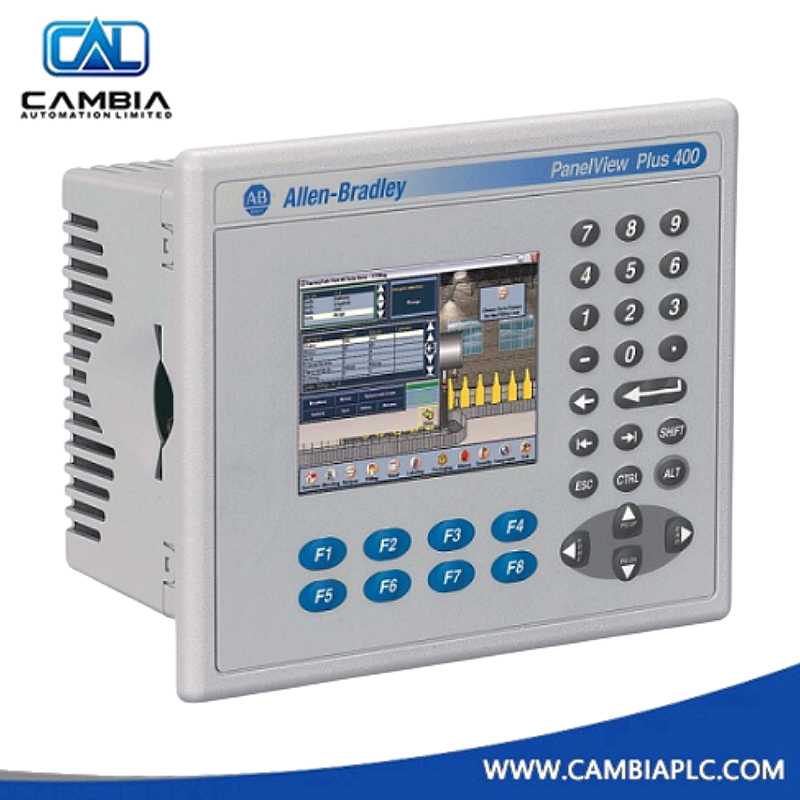

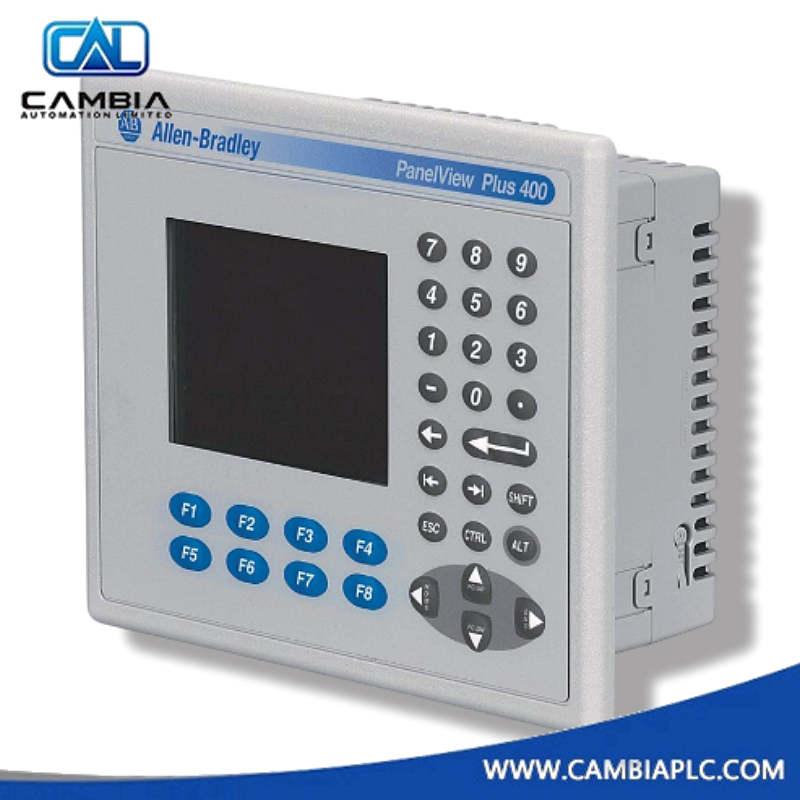

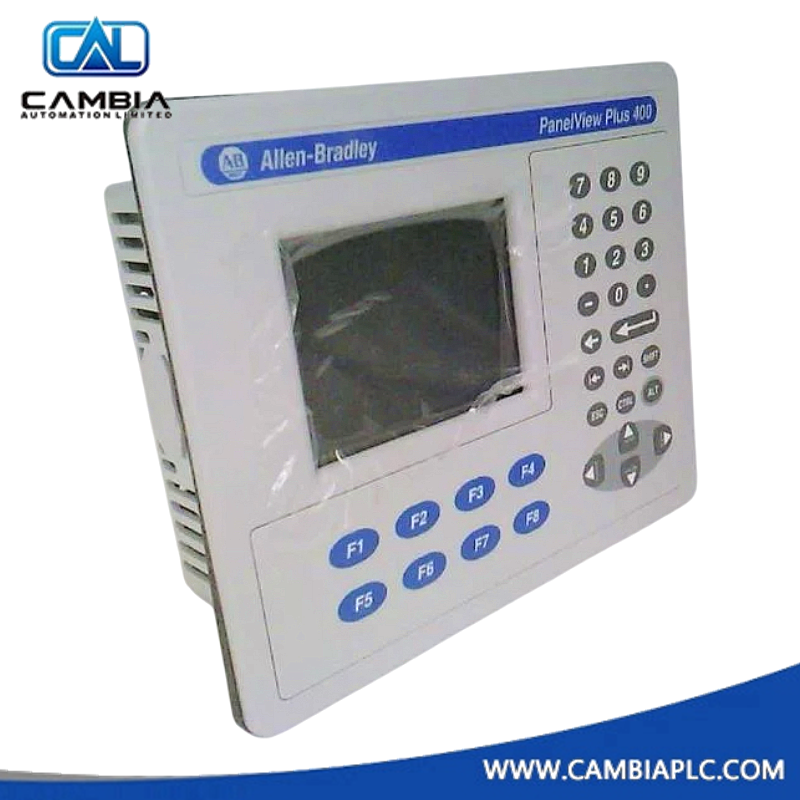

AB Allen-Bradley 2711P-K4M20D8 Panelview Plus 6 400 Operator Terminal
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 2711P-K4M20D8
Product Type: Operator Terminal
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The Rockwell Automation 2711P-K4M20D8 is a PanelView Plus 6 400 terminal featuring a 4-inch grayscale display with keypad input and DC power supply. It supports Ethernet and RS-232 communication, making it suitable for compact machine-level HMI applications. The unit runs on Windows CE 6.0 and is configured using FactoryTalk View ME software. Designed for industrial environments, it offers reliable visualization and control for small-scale automation systems.
Technical Specifications
- Manufacturer: Rockwell Automation
- Catalog Number: 2711P-K4M20D8
- Product Line: PanelView Plus 6 400
- Display Size: 4 inches
- Display Type: Grayscale TFT LCD
- Resolution: 320 × 240 pixels (QVGA)
- Input Method: Stainless-steel membrane keypad
- Keypad Features: Numeric, navigation, and function keys
- Operating System: Windows CE 6.0
- Software Compatibility: FactoryTalk View ME v6.10 or later
- Processor: 800 MHz CPU
- Memory: 512 MB RAM, 512 MB nonvolatile memory
- User Memory: 79 MB available
- Communication Ports: Ethernet (10/100 Mbps), RS-232, USB host/device
- Input Voltage Range: 18–30 VDC (24 VDC nominal)
- Power Consumption: 15 W max, 9 W typical
- Backlight: White LED, non-replaceable, 25,000 hr min @ 25 °C
- Battery: CR2032, field-replaceable (2711P-RY2032)
- SD Card Slot: Supports 1784-SDx and 1784-SDHCx cards
- Certifications: CE, UL, cUL, RoHS
Dimensions and Weight
- Module Width: 130 mm
- Module Height: 110 mm
- Module Depth: 50 mm
- Net Weight: 0.6 kg
- Mounting Type: Panel-mounted
- Cooling Method: Passive (natural convection)
Product Questions
-
Q: What software is used to configure the 2711P-K4M20D8?
A: FactoryTalk View Machine Edition (v6.10 or later) is required for application development and deployment. -
Q: What types of communication are supported?
A: The module supports Ethernet (Auto-MDI/MDI-X), RS-232, and USB host/device ports. -
Q: Is the keypad suitable for industrial use?
A: Yes. It features stainless-steel membrane keys rated for 1 million actuations with 340 g operating force. -
Q: Is the module hot-swappable?
A: No. Power must be removed before installation or removal.
