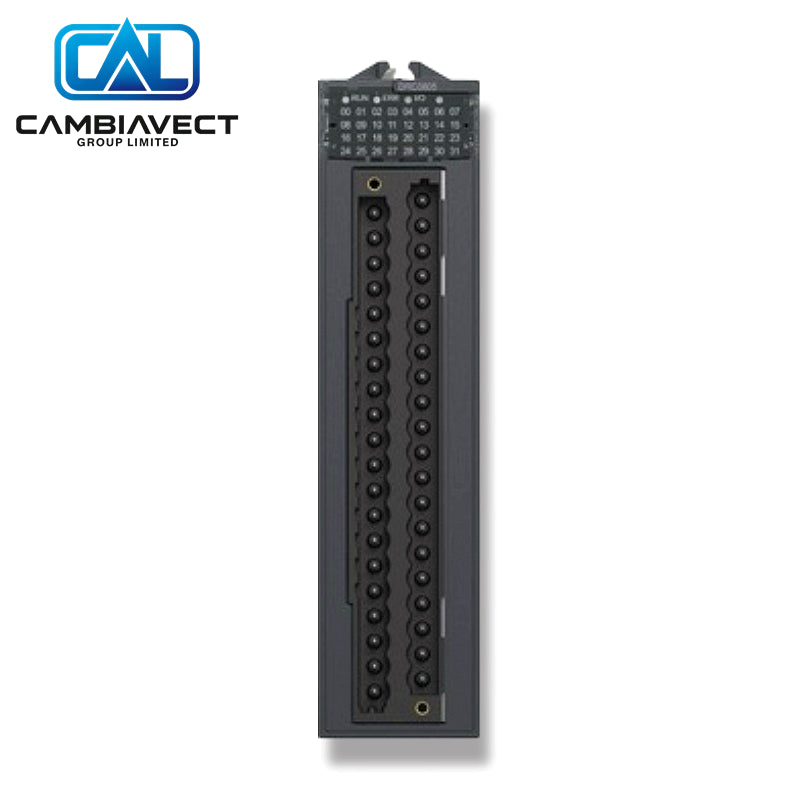

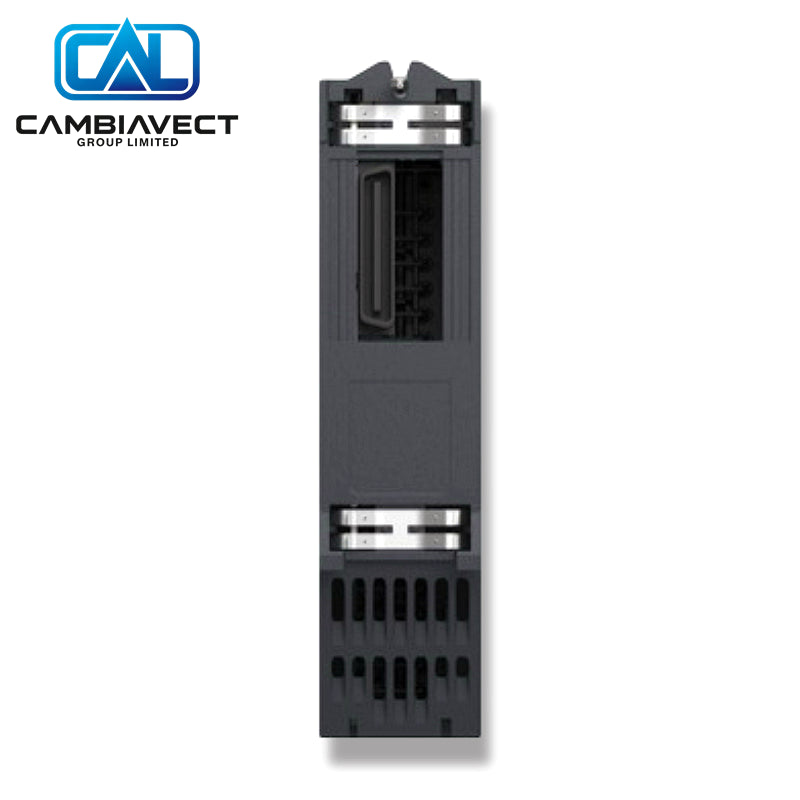

8pt Relay Output NO/NC BMXDRC0805 Schneider X80
Manufacturer: Schneider
Product No.: BMXDRC0805
Product Type: Discrete Output Module
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric BMXDRC0805 is an 8-channel relay discrete output module for Modicon X80. It provides selectable NO or NC contacts rated 24–240 V AC and 24–125 V DC for flexible switching of contactors, solenoids and mixed loads.
Key Specs
- Platform: Modicon X80
- Channels: 8 relay outputs (NO or NC)
- Voltage: 24–240 V AC; 24–125 V DC
- Logic: Positive or negative
- Connection: Removable terminal block
- Treatment: Standard / conformal coating versions available
- Compatibility: Modicon M340 / M580
Why Choose This
- Selectable NO/NC contacts for flexible interlocking
- Wide AC and DC voltage range
- Isolated relays for mixed load types
- Standard X80 form factor
Common Questions
- Points? 8 NO or NC relay outputs.
- Voltage? 24–240 V AC / 24–125 V DC.
- Platform? Modicon X80.
Mounting Steps
- Install the module in an X80 rack slot.
- Fit the terminal block and wire loads with external protection.
- Configure output channels and NO/NC logic in the software.
- Power up and verify channel status.
- Test load switching under operating conditions.
Buying Advice
- Confirm NO/NC requirement for each channel application.
- Observe maximum current and inductive load suppression.
- Useful spare for X80 selectable relay output positions.
