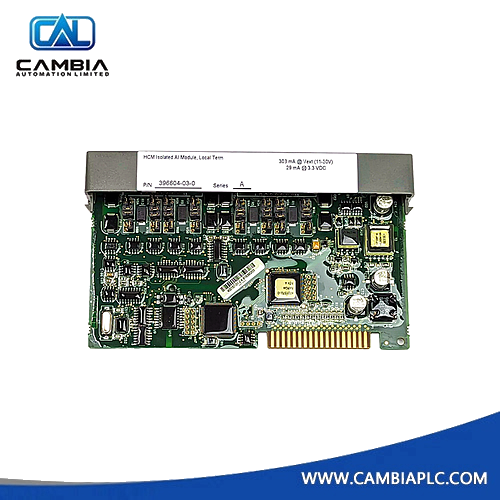

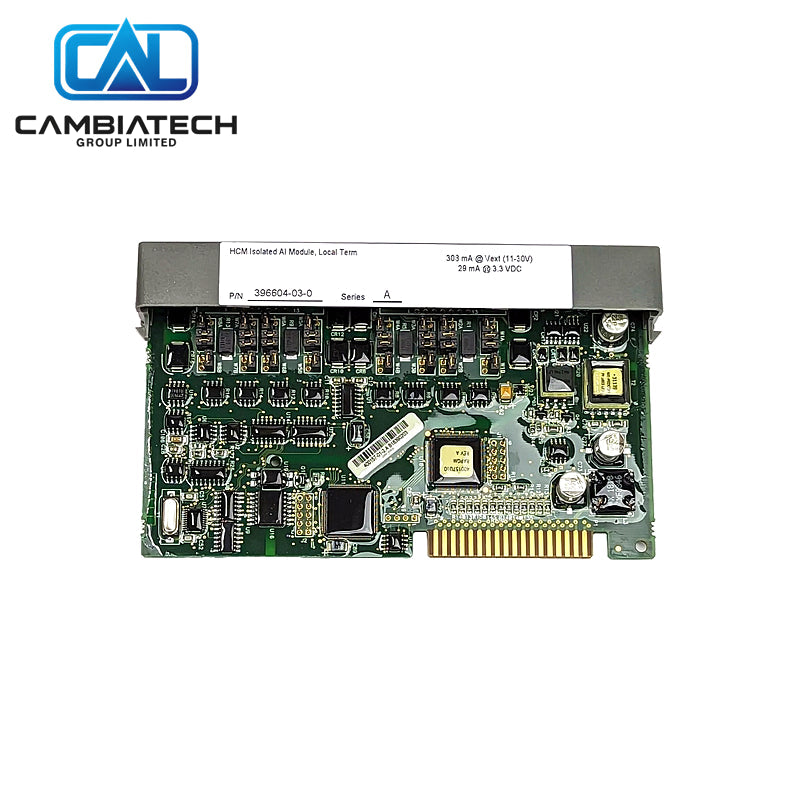

8ch Isolated Analog Input 396604-03-0 Emerson ControlWave Micro
In stock, ready to ship
Manufacturer: Emerson
Product No.: 396604-03-0
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson 396604-03-0 is an 8-channel isolated High Common Mode (HCM) Analog Input module for ControlWave Micro systems. It supports configurable 4–20 mA, 1–5 VDC or 0–10 VDC inputs with channel isolation for accurate process measurement.
Key Specs
- Channels: 8 isolated differential analog inputs
- Signal types: 4–20 mA, 1–5 VDC, 0–10 VDC (jumper configurable)
- Power consumption: Approx. 309 mA @ 24 VDC
- Operating temperature: −40 °C to +70 °C
- System: ControlWave Micro
- Isolation: High common mode isolation
Why Choose This
- High-density isolated analog input
- Flexible voltage/current configuration
- Suitable for noisy industrial environments
- Direct ControlWave Micro compatibility
Common Questions
- Channels? 8 isolated AI.
- Signals? 4–20 mA / voltage selectable.
- System? ControlWave Micro.
Mounting Steps
- Install the module in the ControlWave Micro chassis.
- Configure jumpers for the required signal type.
- Wire field analog signals to the terminals.
- Power up and configure scaling in the controller.
- Verify input readings and diagnostics.
Buying Advice
- Select for multi-channel isolated analog input needs.
- Confirm termination style (local/remote) if applicable.
- Useful spare for ControlWave analog input racks.
