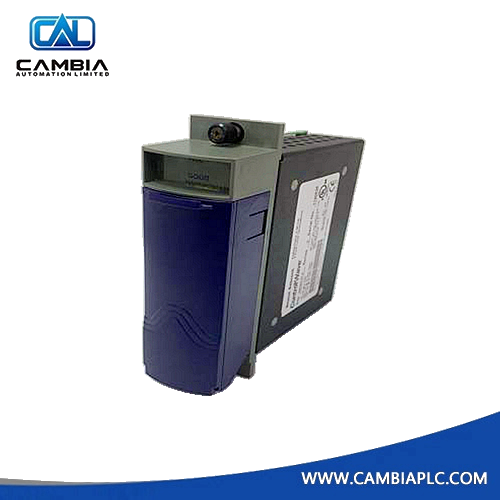

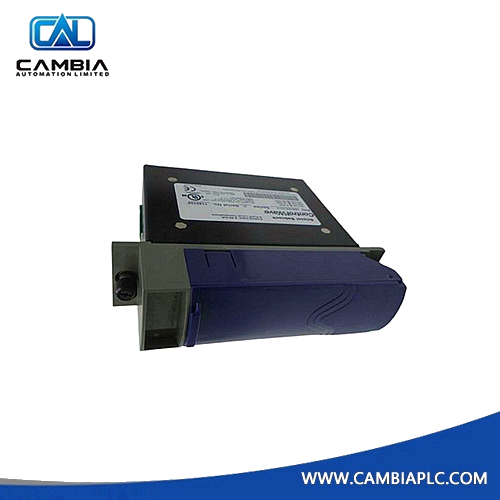

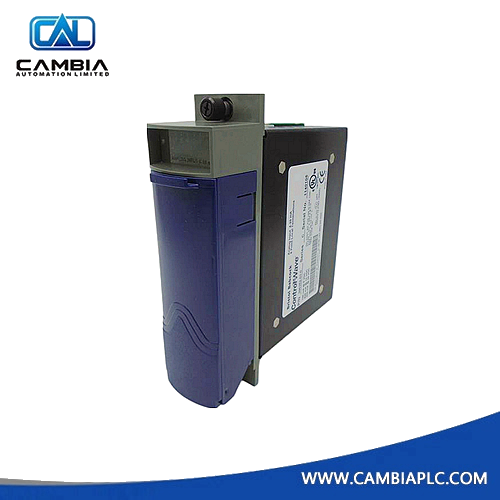

8ch Analog Output 4-20mA 396353-01-0 Emerson ControlWave
In stock, ready to ship
Manufacturer: Emerson
Product No.: 396353-01-0
Product Type: Analog Output Module
Product Origin: USA
Payment: T/T
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson 396353-01-0 is an 8-channel Analog Output module for ControlWave systems. It delivers 4–20 mA current loop signals for precise control of valves, actuators and other field devices.
Key Specs
- Channels: 8 analog outputs
- Signal: 4–20 mA current loop
- Supply options: 5 / 12 / 24 VDC class
- Current consumption: Approx. 70–400 mA depending on supply
- Termination: Local
- Operating temperature: −40 °C to +85 °C class
- System: ControlWave PAC / RTU
Why Choose This
- High-density 4–20 mA analog output
- Suitable for multi-loop control applications
- Compatible with ControlWave platforms
- Industrial temperature rating
Common Questions
- Channels? 8 AO 4–20 mA.
- Termination? Local.
- System? ControlWave.
Mounting Steps
- Install the module in the ControlWave chassis.
- Connect the appropriate DC supply.
- Wire the 4–20 mA field loads.
- Configure output scaling in the controller.
- Test each output under operating conditions.
Buying Advice
- Select for multi-channel analog output needs.
- Confirm supply voltage and termination style.
- Useful spare for ControlWave AO applications.
