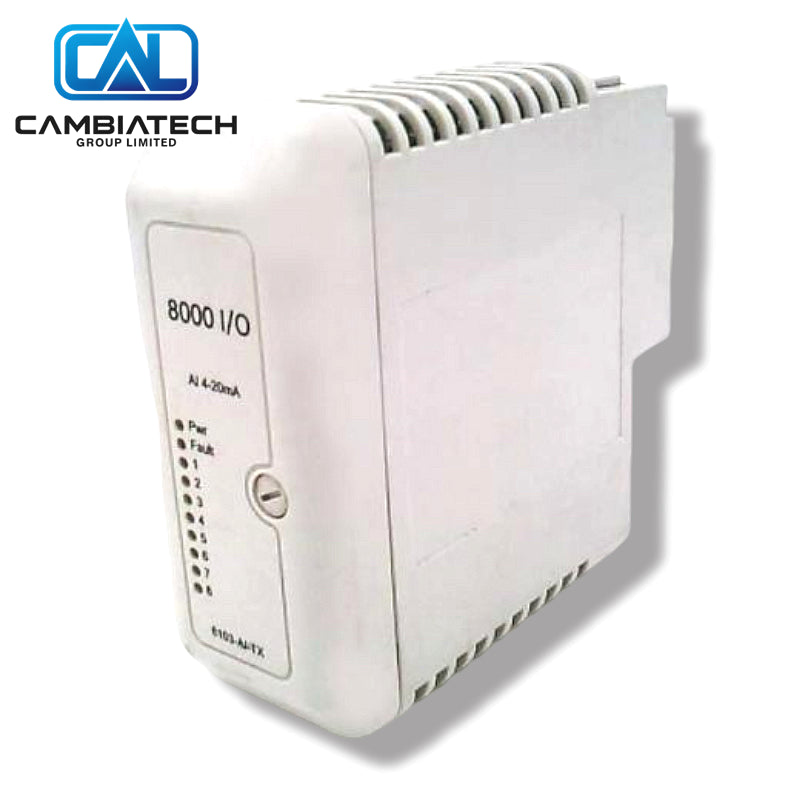

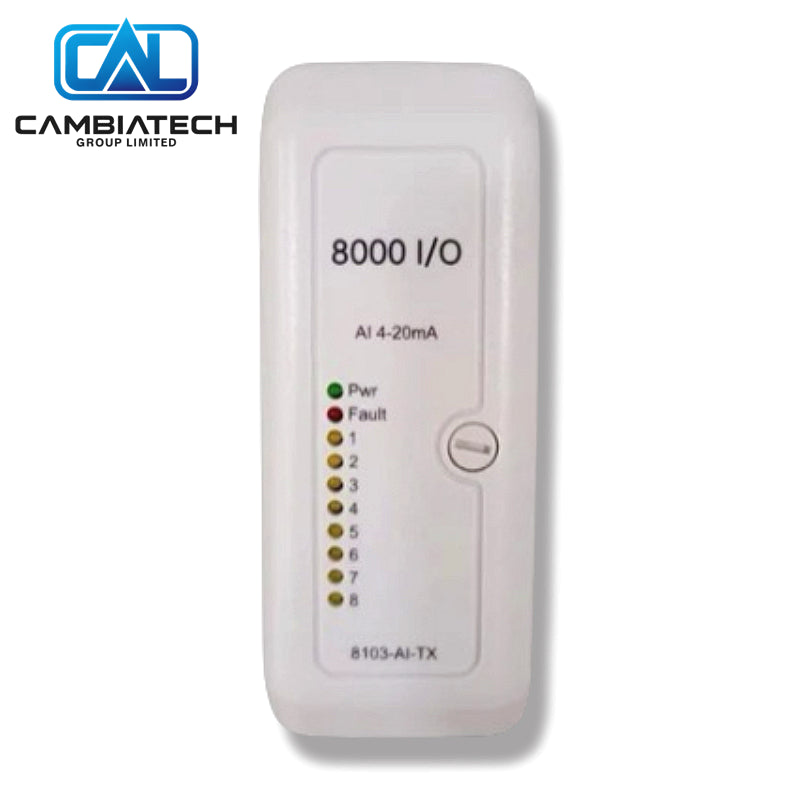

8ch Analog Input 4-20mA 8103-AI-TX-02 MTL PAC8000
In stock, ready to ship
Manufacturer: Emerson
Product No.: 8103-AI-TX-02
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
MTL 8103-AI-TX-02 is an 8-channel single-ended analog input module for 4–20 mA signals from 2-wire or 4-wire transmitters. It supports open/short-circuit detection and non-incendive field circuits for PAC8000 systems.
Key Specs
- Channels: 8 single-ended AI
- Signal range: 4–20 mA (1–23 mA full)
- Accuracy: ±0.1% of span class
- Resolution: 16-bit class
- Supports 2-wire and 4-wire transmitters
- Field power: Bussed 24 V DC required
- System: MTL PAC8000
Why Choose This
- Dedicated 4–20 mA transmitter input
- Open/short circuit detection
- Non-incendive field circuit capability
- High resolution for process measurement
Common Questions
- Channels? 8 AI 4–20 mA.
- Transmitters? 2-wire and 4-wire.
- System? PAC8000.
Mounting Steps
- Install the module on the PAC8000 carrier.
- Connect bussed 24 V DC field power.
- Wire the 4–20 mA transmitters.
- Configure scaling and diagnostics.
- Verify input readings and loop integrity.
Buying Advice
- Select when transmitter power and 4–20 mA input are required.
- Confirm field power availability on the carrier.
- Useful spare for PAC8000 analog input nodes.
