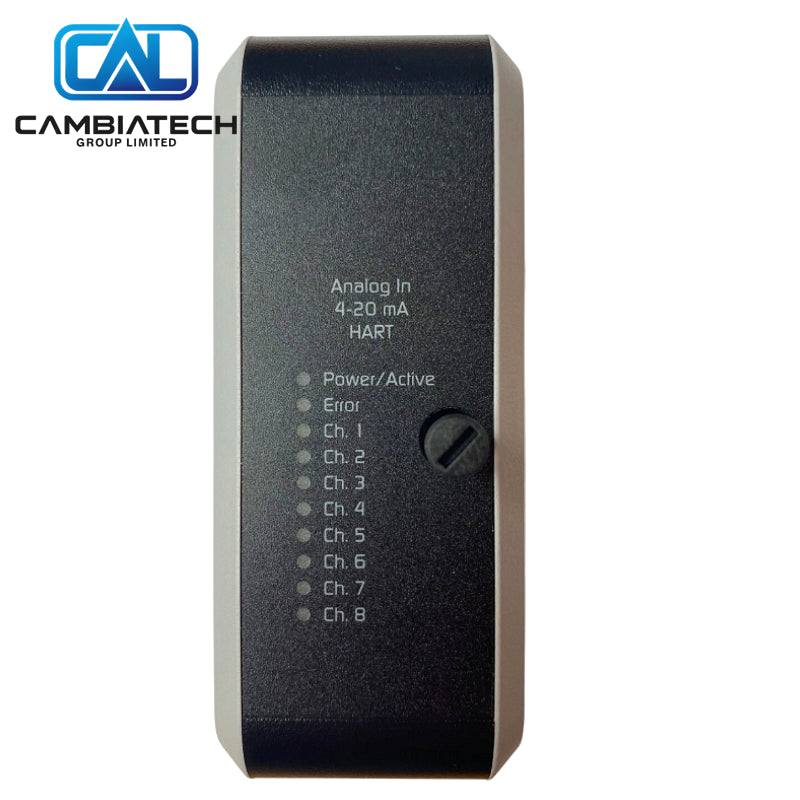

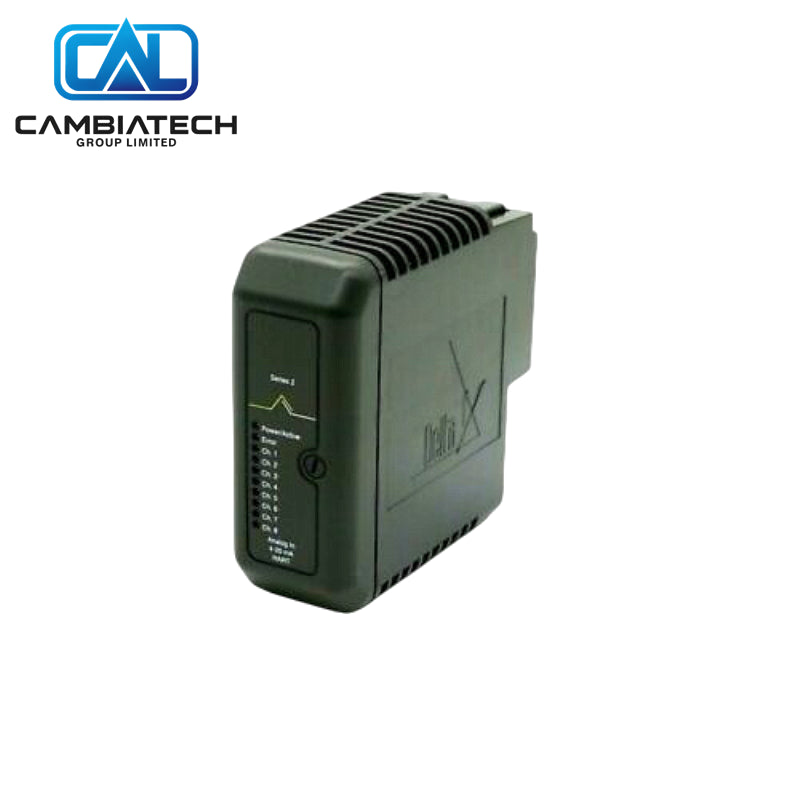

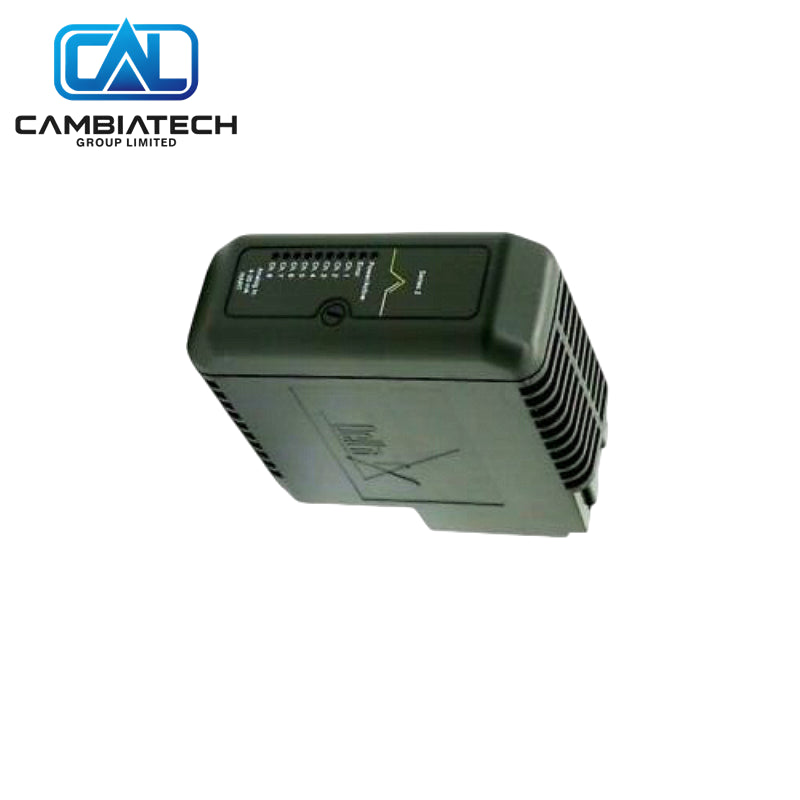

8ch AI 4-20mA HART KJ3222X1-BA3 Emerson DeltaV Series 2
In stock, ready to ship
Manufacturer: Emerson
Product No.: KJ3222X1-BA3
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson KJ3222X1-BA3 is an 8-channel Analog Input module for DeltaV Series 2 / M-series systems. It accepts 4–20 mA signals with HART communication for process measurement and device diagnostics.
Key Specs
- Channels: 8 analog inputs
- Signal: 4–20 mA with HART
- Local Bus Power: 12 VDC at 150 mA
- Bussed Field Power: 24 VDC at 300 mA
- Field Circuit: 24 VDC at 30 mA per channel
- Key position: A1
- Operating temperature: −40 °C to +70 °C
Why Choose This
- 8-channel high-density analog input
- Native HART support for smart transmitters
- Hazardous-area certified
- Series 2 enhanced performance
Common Questions
- Channels? 8 AI 4–20 mA.
- HART? Yes.
- Key? A1.
Mounting Steps
- Install the matching terminal block with correct key position.
- Insert the KJ3222X1-BA3 into the carrier slot.
- Wire the 4–20 mA field transmitters.
- Configure channels and HART parameters in DeltaV.
- Verify input readings and diagnostics.
Buying Advice
- Select for multi-channel 4–20 mA + HART analog input needs.
- Confirm Series 2 carrier and terminal block compatibility.
- Useful spare for DeltaV analog input racks.
