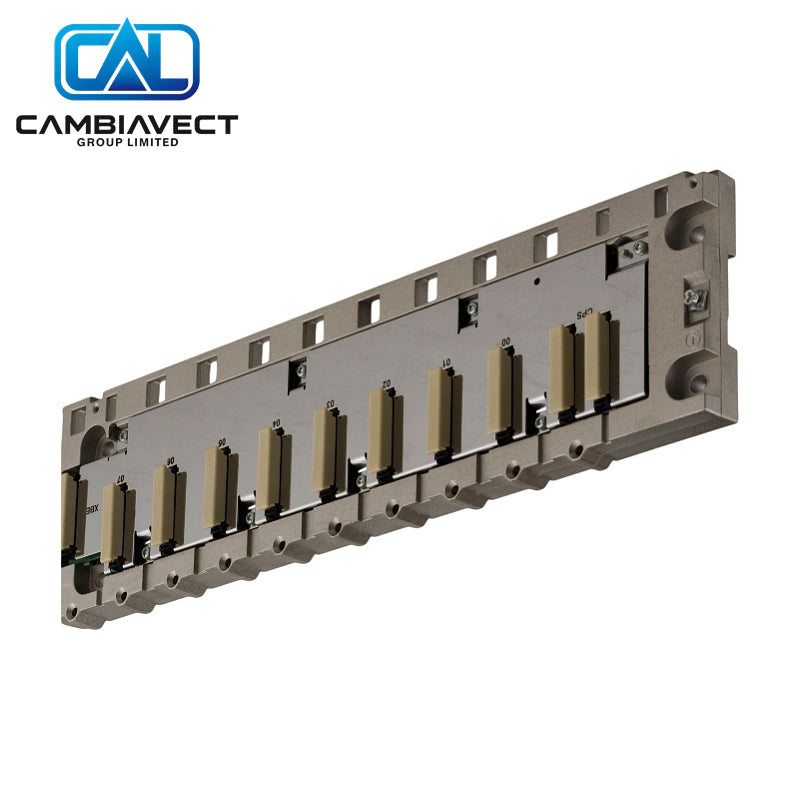

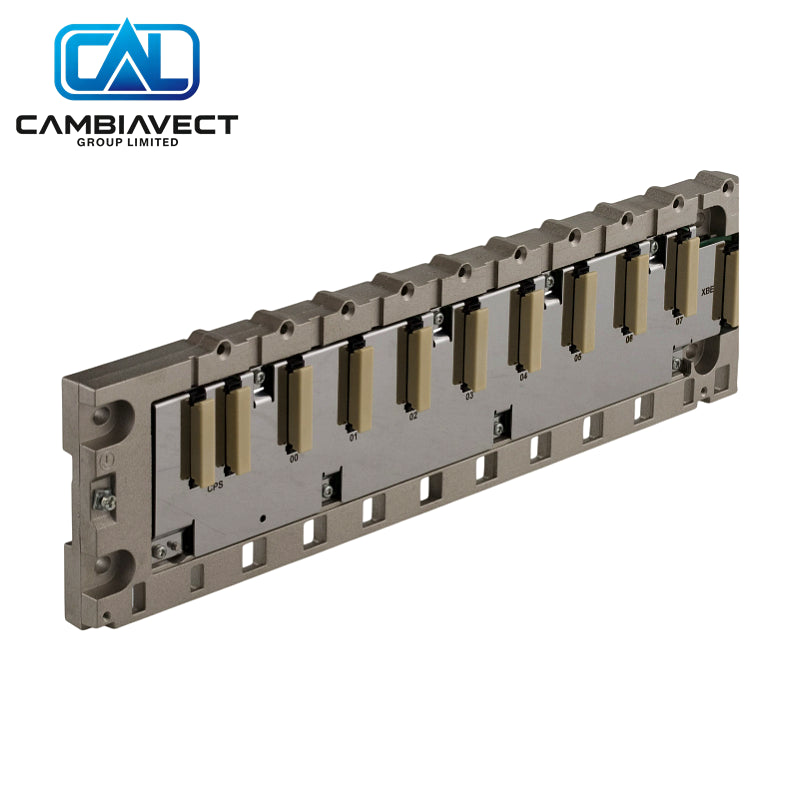

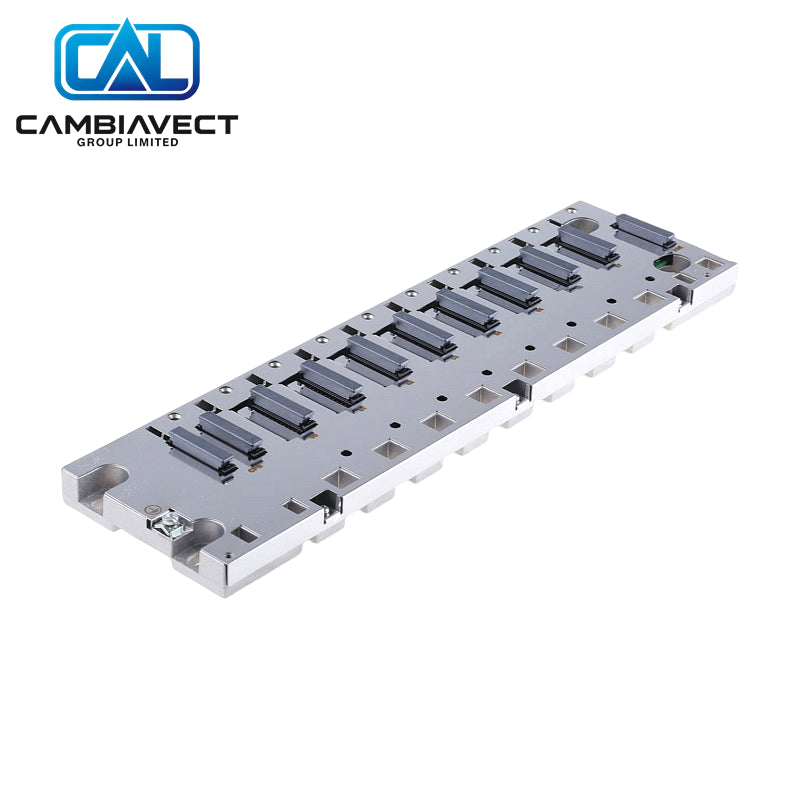

8-Slot Backplane BMXXBP0800H Schneider X80 Severe Env
Manufacturer: Schneider
Product No.: BMXXBP0800H
Product Type: Backplane Rack
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric BMXXBP0800H is an 8-slot backplane for Modicon X80, designed for severe environments with conformal coating. It provides the mechanical and electrical infrastructure for processors, power supplies and I/O modules in harsh industrial conditions.
Key Specs
- Platform: Modicon X80
- Slots: 8
- Environment: Severe (H version, conformal coating)
- Compatibility: M340 / M580 processors and X80 modules
- Mounting: Rack / panel
- Width: Approx. 372.8 mm class
Why Choose This
- 8-slot capacity for mid-size X80 stations
- Severe-environment construction for corrosive or high-humidity sites
- Standard X80 backplane interfaces
- Supports mixed processor, power and I/O modules
Common Questions
- Slots? 8.
- Environment? Severe (H version).
- Platform? Modicon X80.
Mounting Steps
- Mount the backplane in the enclosure according to spacing and grounding rules.
- Install power supply, processor and I/O modules in the required slots.
- Connect any expansion or grounding links as specified.
- Power up and verify module recognition.
- Configure the station in the engineering software.
Buying Advice
- Select H version for severe environments; standard version available for normal conditions.
- Confirm total module power against the chosen power supply.
- Critical spare for X80 8-slot severe-environment racks.
