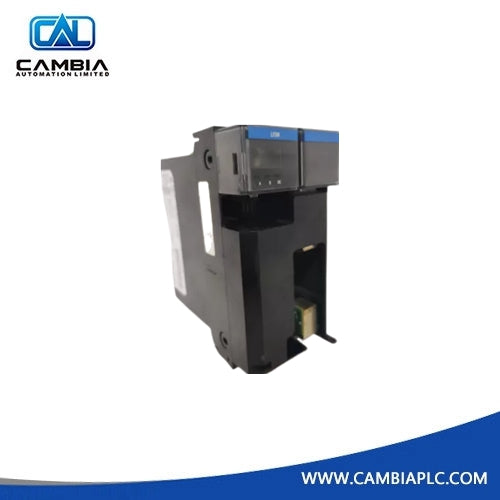

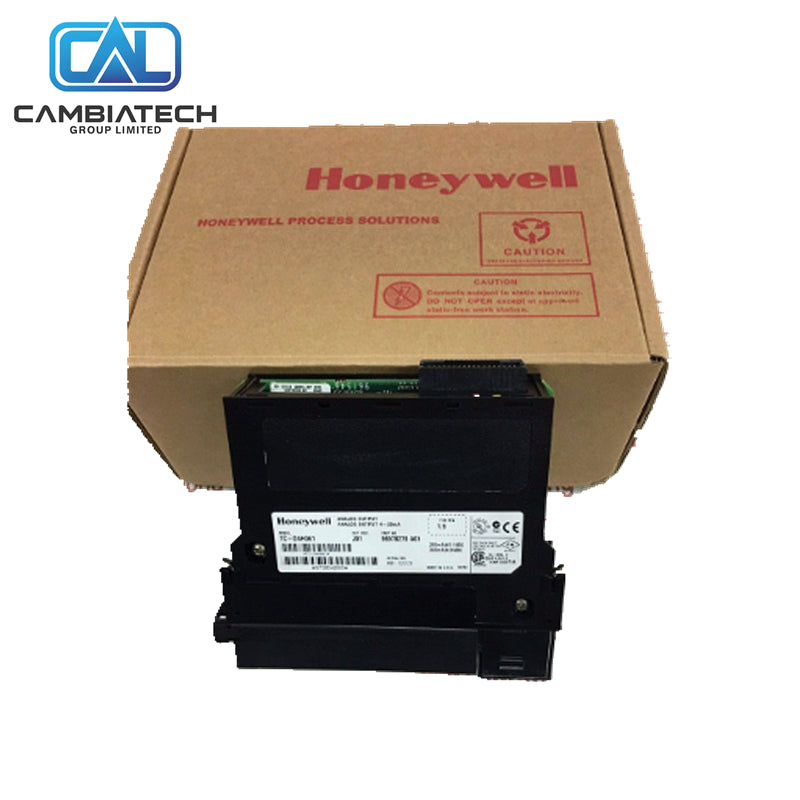

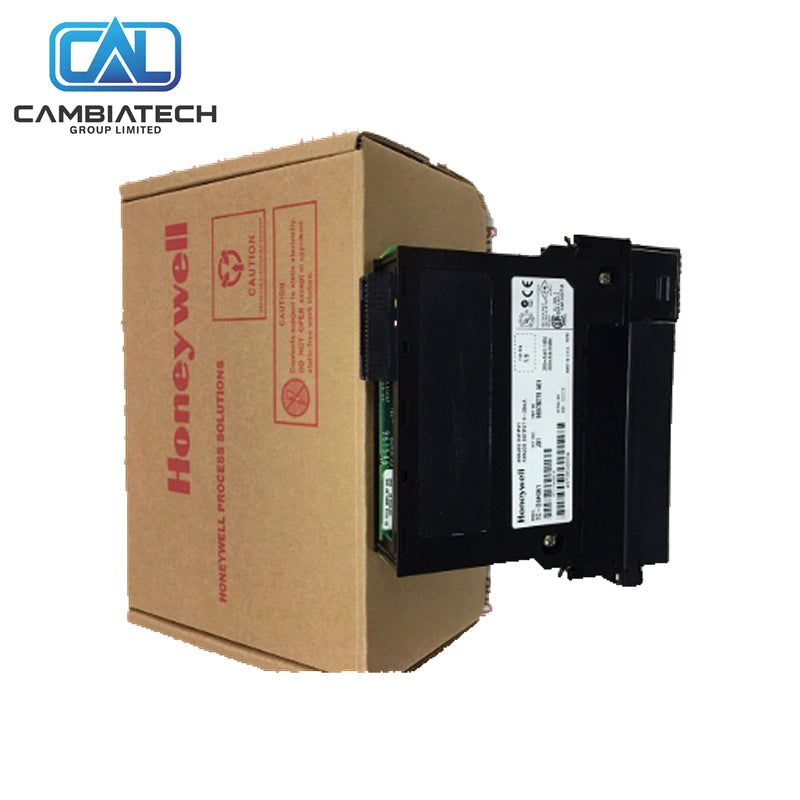

6pt Analog Output 4-20mA TK-OAH061 Honeywell
In stock, ready to ship
Manufacturer: Honeywell
Product No.: TK-OAH061
Product Type: Analog Output Module
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Honeywell TK-OAH061 is a 6-channel galvanically isolated analog output module for 4–20 mA (0–21 mA) current loops. It is the coated version of the TC-OAH061 for enhanced environmental protection in C200 systems.
Key Specs
- Channels: 6 galvanically isolated
- Output range: 0–21.0 mA (4–20 mA typical)
- Resolution: 13 bits across 21 mA
- Update rate: 25 ms for all channels
- Power dissipation: 6.7 W max
- Isolation: Channel-to-channel and user-to-system (tested 2546 VDC)
- Terminal block: TC-TBNH (20-position)
- Version: Coated
Why Choose This
- Galvanically isolated channels
- Precise 4–20 mA current output
- Coated for harsh environments
- Open/short circuit current limiting
Common Questions
- How many channels? 6 isolated outputs.
- Signal type? 4–20 mA current loop.
- Coated? Yes (TK version).
Mounting Steps
- Insert the module into the I/O chassis.
- Attach the TC-TBNH terminal block.
- Wire 4–20 mA field loops.
- Configure channels in the control system.
- Verify output current and isolation.
Buying Advice
- Select the coated version for corrosive or humid environments.
- Confirm load resistance is within drive capability.
- Use matching terminal block for reliable connections.
