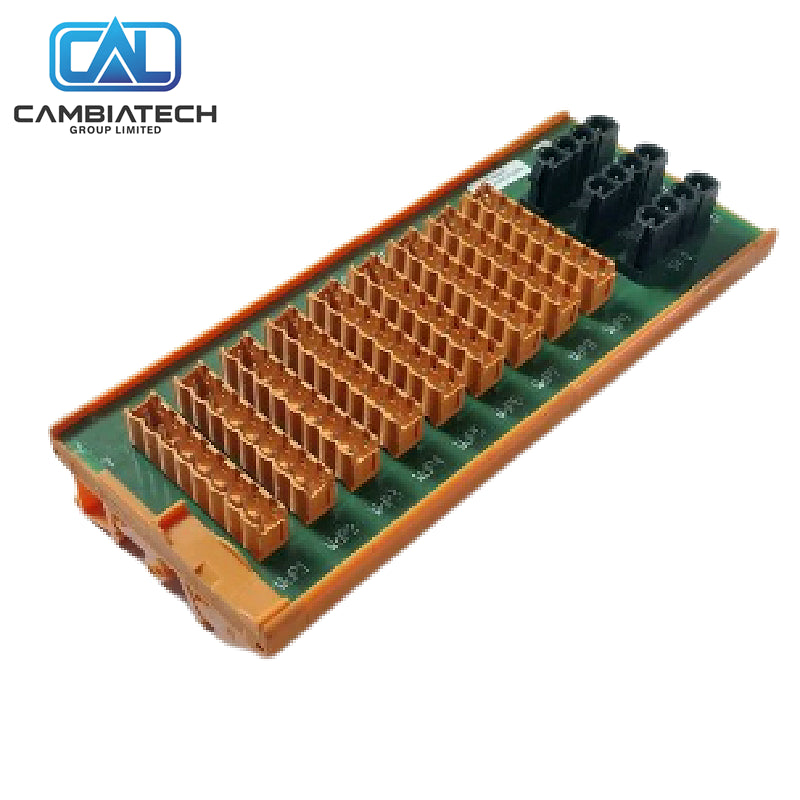

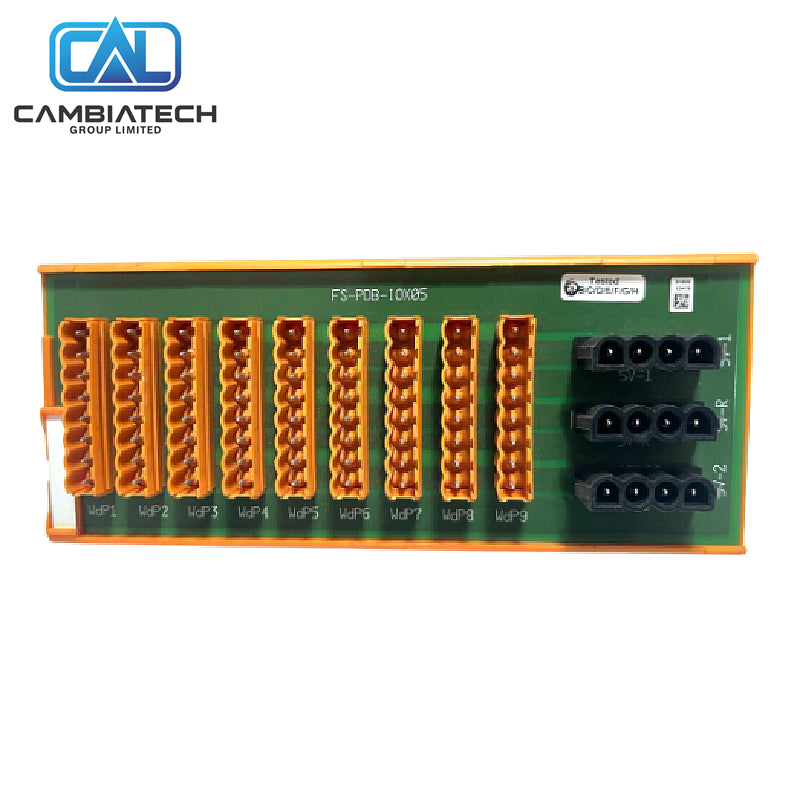

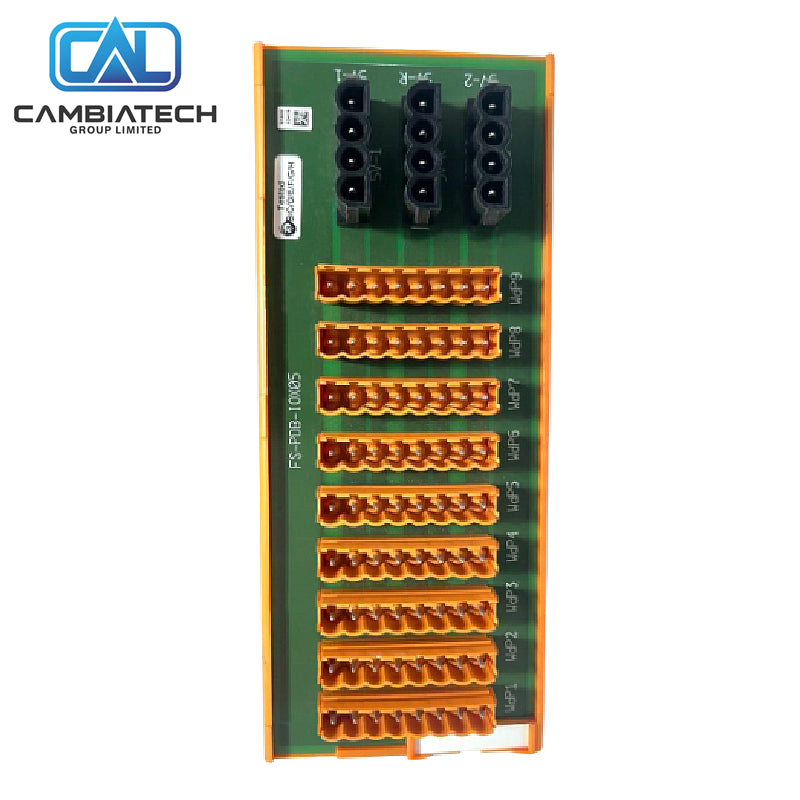

5V Watchdog Power Board FC-PDB-IOX05 Honeywell
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-PDB-IOX05
Product Type: Power Distribution Board
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Honeywell FC-PDB-IOX05 is a power distribution board for extension I/O cabinets. It distributes 5 VDC and watchdog signals from the controller cabinet to the I/O chassis.
Key Specs
- Function: 5 V and watchdog distribution to extension I/O
- Connectors: Multiple 4-pole and pin-header connectors
- System: Safety Manager extension I/O cabinets
- Dimensions: approx. 170 × 70 × 46 mm
- Approvals: CE, UL, TÜV, CSA
Why Choose This
- Enables reliable power and watchdog extension
- Supports multi-chassis Safety Manager architectures
- Simple cable connection from controller cabinet
- Industrial-grade construction
Common Questions
- What does it distribute? 5 VDC and watchdog signals.
- Where is it used? Extension I/O cabinets.
- Compatible cables? PDC-IOX05 series power cables.
Mounting Steps
- Install the board in the extension I/O cabinet.
- Connect power distribution cables from the controller cabinet (5V-1 / 5V-2).
- Link watchdog and 5 V outputs to the I/O chassis.
- Secure all connectors.
- Power up and verify 5 V and watchdog presence.
Buying Advice
- Required for Safety Manager systems with remote/extension I/O cabinets.
- Confirm cable compatibility (PDC-IOX05).
- Keep as spare for multi-cabinet installations.
