Bently Nevada

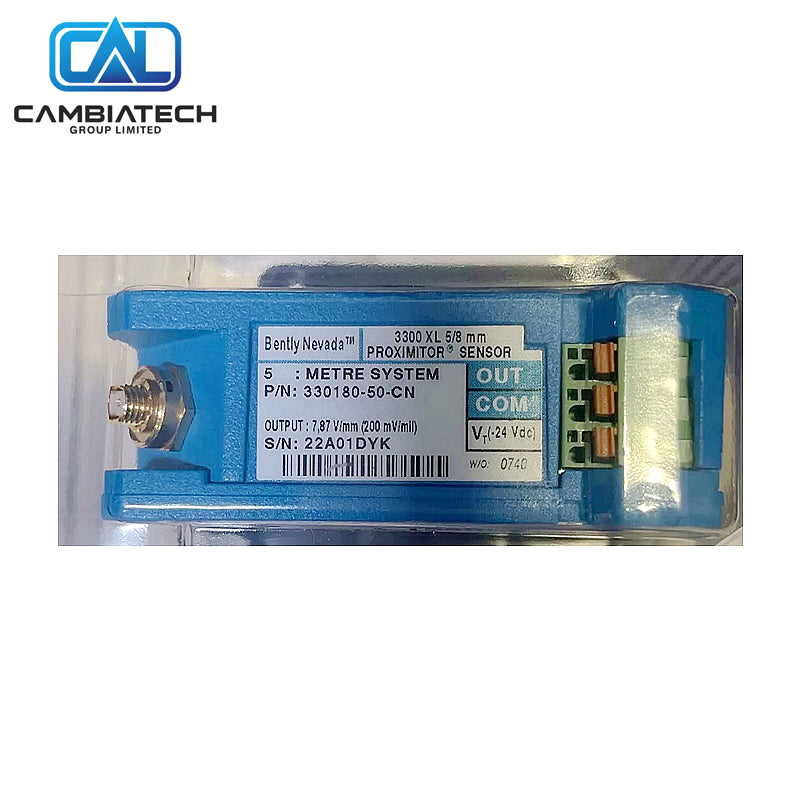

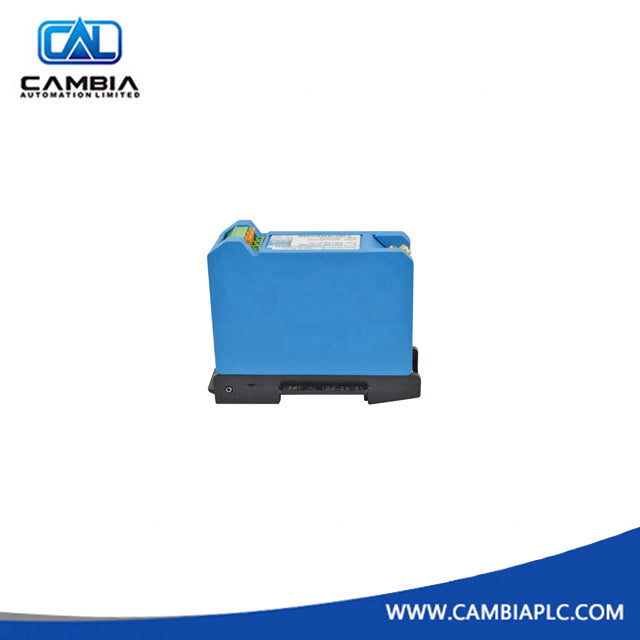

5m System Proximitor 330180-50-CN Bently Nevada
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330180-50-CN
Product Type: Proximitor Sensor
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Bently Nevada 330180-50-CN is a 3300 XL Proximitor Sensor for the 3300 XL 8 mm Proximity Transducer System. It converts impedance changes from the probe into a linear DC voltage output proportional to the distance between the probe tip and the observed conductive surface, enabling non-contact vibration and position measurements on fluid-film bearing machines.
Key Specs
- System length: 5.0 m (16.4 ft) total system length
- Mounting option: Panel mount
- Agency approval: CN = China-compliant version
- Operating temperature: -52 to +100 °C
- Storage temperature: -52 to +105 °C
- Power requirements: -17.5 to -26 V DC (non-incendive circuit)
- Current consumption: Max 12 mA
- Output resistance: 50 Ω
- Material: A308 aluminum
- Weight: 0.44 kg
Why Choose This
- Full interoperability with 3300 XL 8 mm probes and extension cables without bench calibration
- ClickLoc connectors for secure, tool-free installation
- Electrical isolation via mounting base eliminates the need for separate isolator plates
- RFI/EMI immunity meets CE mark standards without shielded conduit
- Fully compliant with API 670 (4th Edition) for vibration monitoring
Common Questions
- What does the CN suffix indicate? CN designates the China-compliant agency approval configuration for use in Chinese industrial installations.
- What probe types are compatible? It accepts 3300 XL 8 mm or 3300-series 5 mm proximity probes with matching extension cables.
- Does it require field calibration? No, the system is factory calibrated and fully interchangeable without bench calibration of individual components.
Mounting Steps
- Mount the Proximitor Sensor on the panel using the integrated mounting base.
- Connect the extension cable from the probe to the Proximitor input connector.
- Wire the output terminals to the monitoring system using shielded twisted-pair cable.
- Apply -24 V DC power supply to the sensor.
- Verify the output voltage corresponds to the probe gap using a voltmeter or the monitoring system display.
Buying Advice
- Select the 330180-50-CN for standard 5-meter system installations requiring China agency approvals.
- For DIN rail mounting, choose the 330180-51-CN variant instead.
- Ensure the total system length (probe + extension cable) matches the 5.0 m specification.
