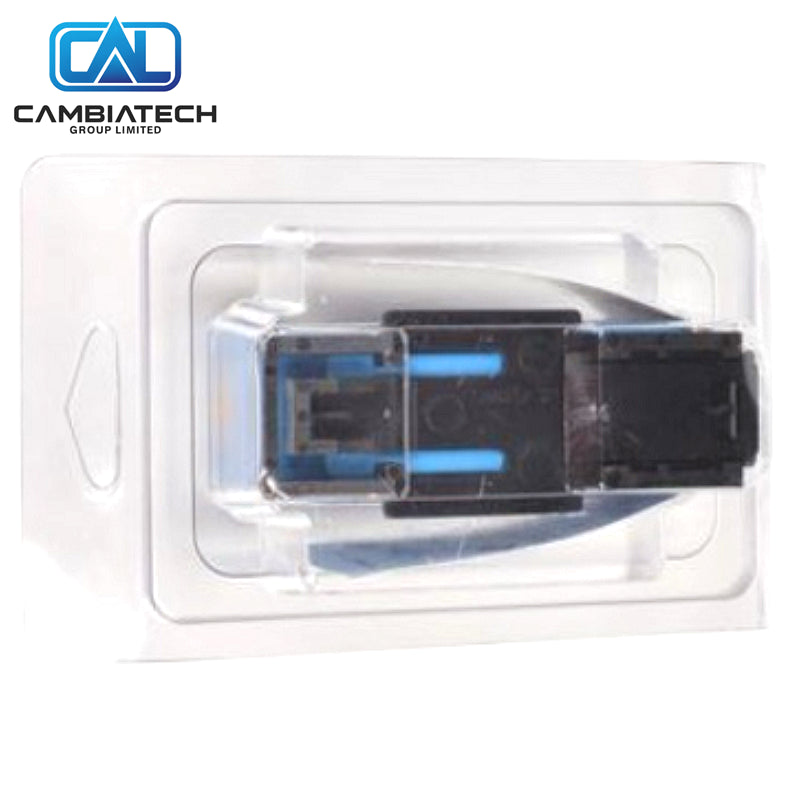

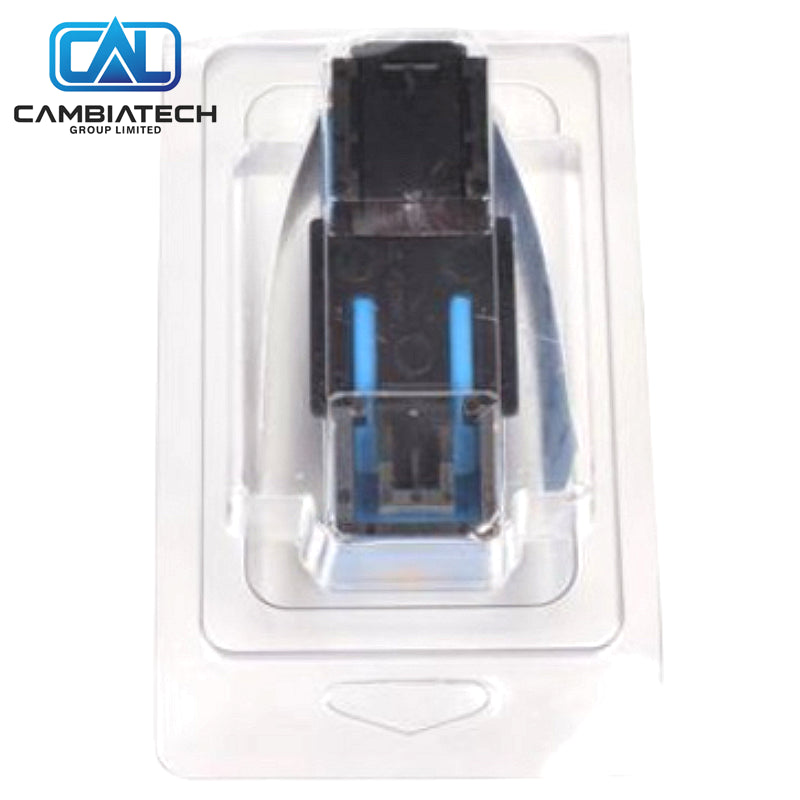

50mm Proximitor DIN Mount 330878-91-00 Bently Nevada
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330878-91-00
Product Type: Proximitor Sensor
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

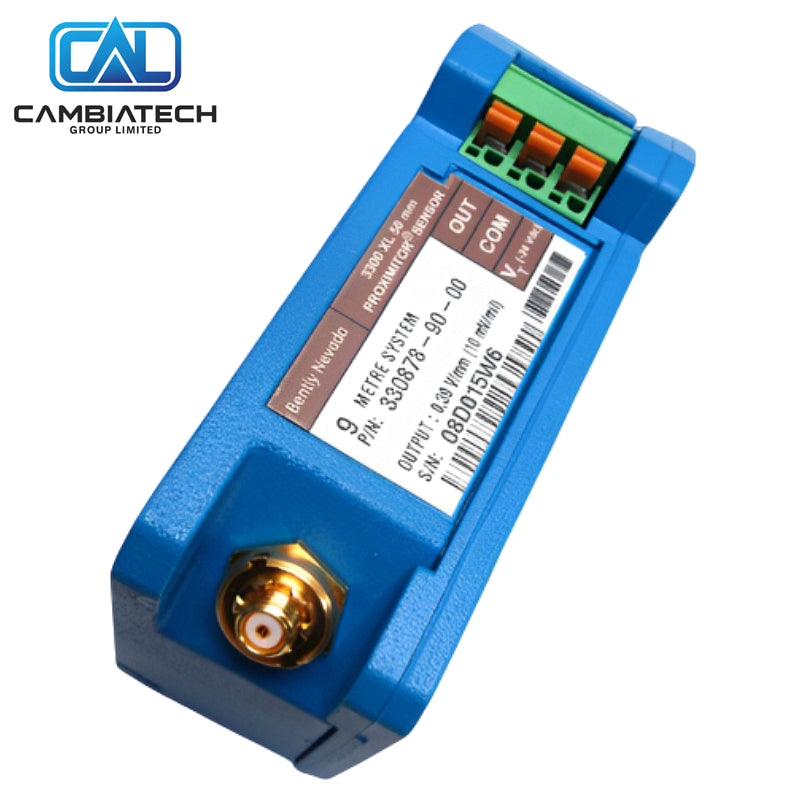

The Bently Nevada 330878-91-00 is a 3300 XL 50 mm Proximitor Sensor for the 3300 XL 50 mm Proximity Transducer System. It provides a 394 mV/mm (10 mV/mil) output over a 25.4 mm (1000 mil) linear range in a DIN rail mount configuration, designed for heavy machinery displacement monitoring without agency certification requirements.
Key Specs
- System length: 9.0 m (29.5 ft) total system length
- Mounting option: DIN mount
- Agency approval: 00 = No agency approvals
- Output sensitivity: 394 mV/mm (10 mV/mil) nominal
- Linear measurement range: 25.4 mm (1000 mil)
- Operating temperature: -51 to +100 °C
- Material: A380 aluminum
- Weight: 0.246 kg
- Dimensions: 81.3 × 50 × 63.5 mm
Why Choose This
- Maximum 25.4 mm linear range for extreme displacement applications
- DIN rail mounting for compact, high-density installations
- Cost-effective option when agency approvals are not required
- Direct compatibility with 3500 monitoring systems
- Robust construction withstands heavy equipment vibration and shock
Common Questions
- What is the difference between 330878-91-00 and 330878-91-05? The -91-00 has no agency approvals; the -91-05 includes multiple international approvals for hazardous locations.
- Is it suitable for turbine differential expansion? Yes, the 50 mm system is specifically designed for steam turbine differential expansion and axial position monitoring.
- What power supply is required? Standard -17.5 to -26 V DC supply at 12 mA maximum, typically -24 V DC.
Mounting Steps
- Clip the Proximitor Sensor onto the DIN rail in the control cabinet.
- Connect the 50 mm probe extension cable to the input connector.
- Wire the voltage output to the monitoring system input.
- Apply -24 V DC power supply.
- Verify system operation by checking the gap voltage at the monitoring display.
Buying Advice
- Select the 330878-91-00 for general-purpose 50 mm applications without hazardous area certification needs.
- For installations requiring agency approvals, choose the 330878-91-05.
- Confirm the probe, extension cable, and Proximitor are all 3300 XL 50 mm series for guaranteed system performance.
