Honeywell

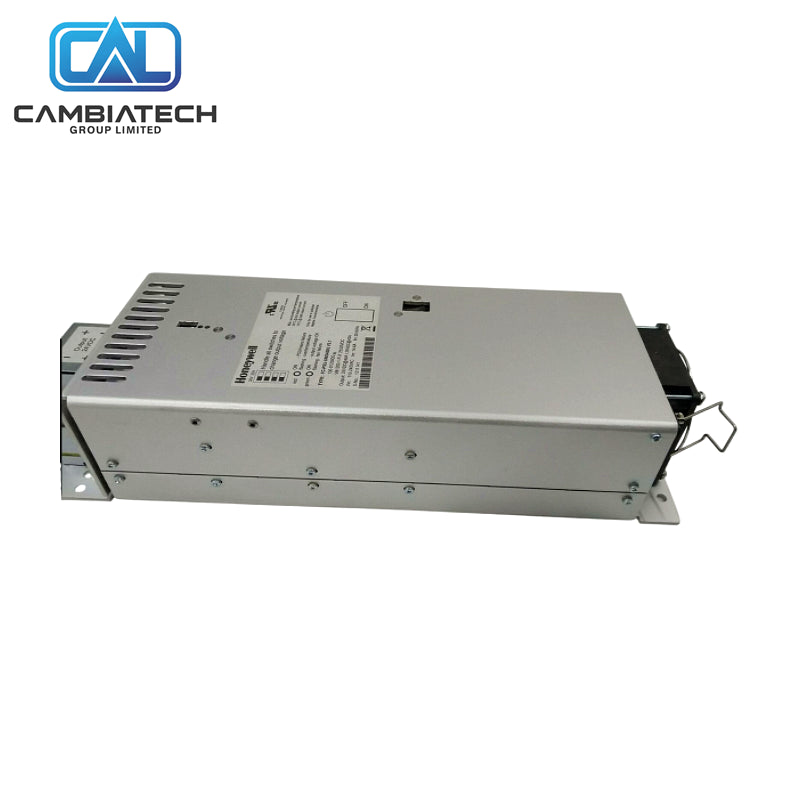

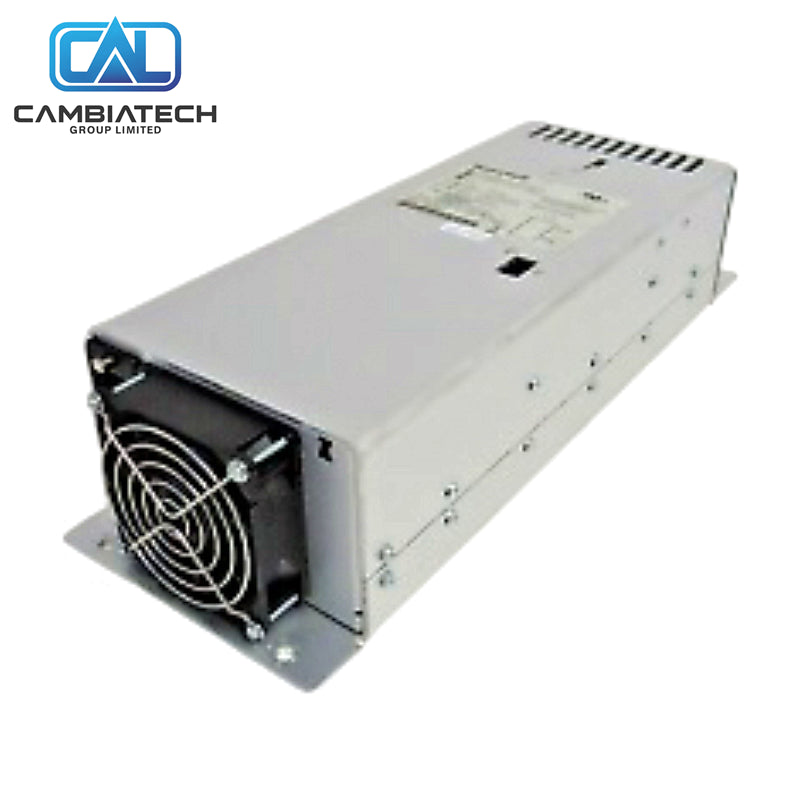

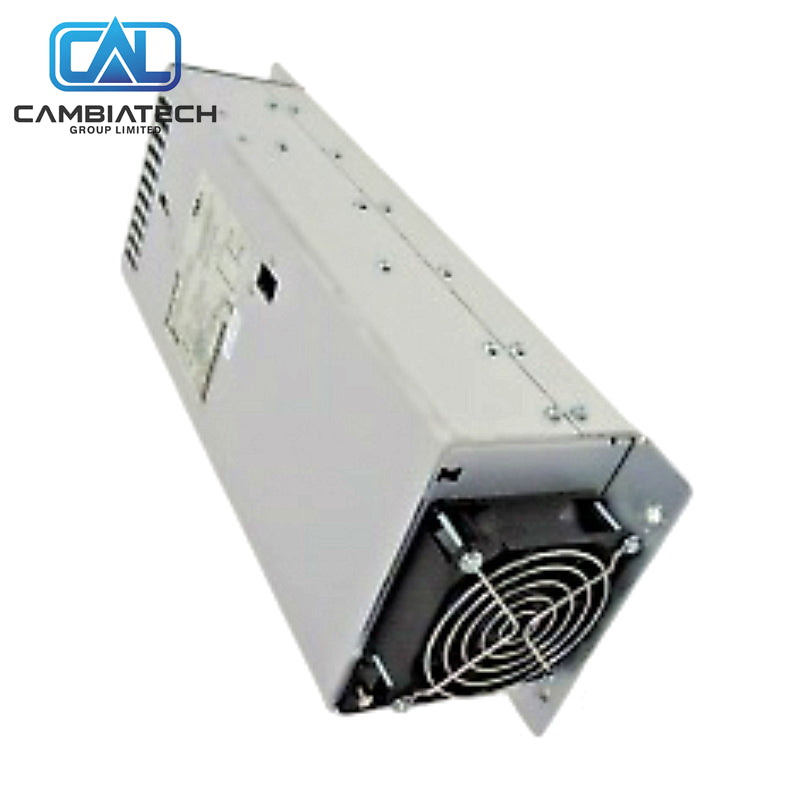

50A Class Universal PSU Honeywell FC-PSU-UNL2450U
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-PSU-UNL2450U
Product Type: Universal Power Supply
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Honeywell FC-PSU-UNL2450U (also referenced as FC-PSUNI2450U) is a high-capacity universal power supply delivering 25 VDC or 28 VDC at up to approximately 48 A. It is designed for demanding Safety Manager and industrial control loads.
Core Specs
- Input: 110–240 VAC (93–253 VAC operating limits), 47–63 Hz
- Output: 25 VDC @ 48 A or 28 VDC @ 43 A
- Efficiency: >87% at 230 VAC
- Hold-up time: 100 ms at full load
- Operating temperature: –5 °C to +70 °C
- Ripple & noise: <40 mVpp
Highlights
- Dual over-voltage protection
- High current capacity for large I/O systems
- Wide universal input range
- Suitable for continuous industrial operation
FAQ
- Maximum output current? Up to 48 A at 25 VDC.
- Input range? 110–240 VAC nominal.
- Hold-up time? 100 ms at full load.
Installation Guide
- Mount the power supply in the designated location.
- Connect AC input with proper fusing and grounding.
- Wire the DC output to the system power bus.
- Set output voltage if adjustable (25 V or 28 V).
- Verify voltage, current capability and status.
Selection Tips
- Choose for high-power Safety Manager or large I/O cabinets.
- Account for derating above 50 °C.
- Use parallel configurations when higher current is needed.
