40-Way Cord Set BMXFCC503 Schneider 5m HE10
Manufacturer: Schneider
Product No.: BMXFCC503
Product Type: Preformed Cord Set
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

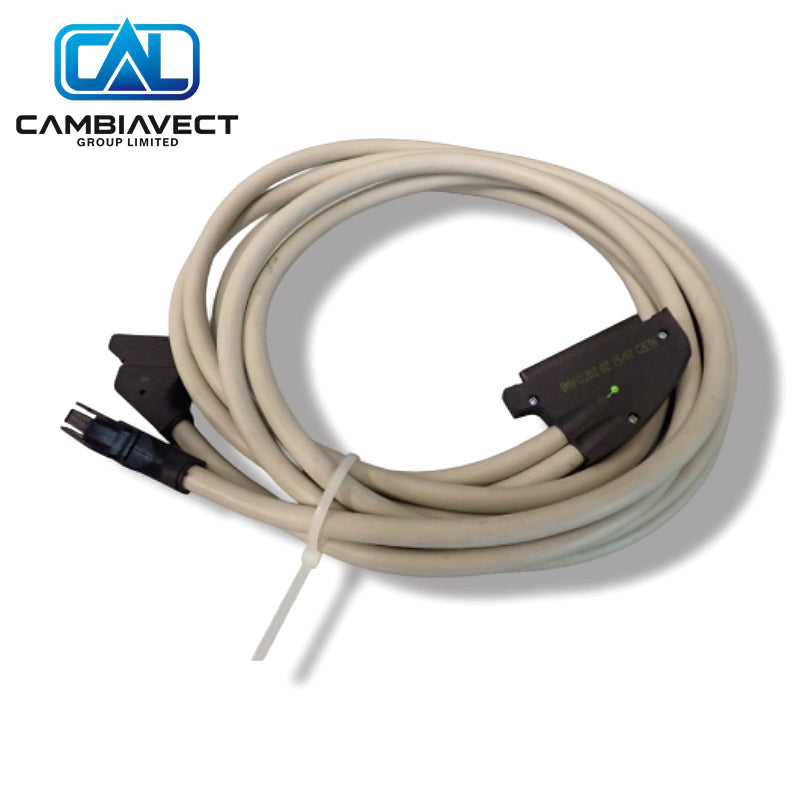

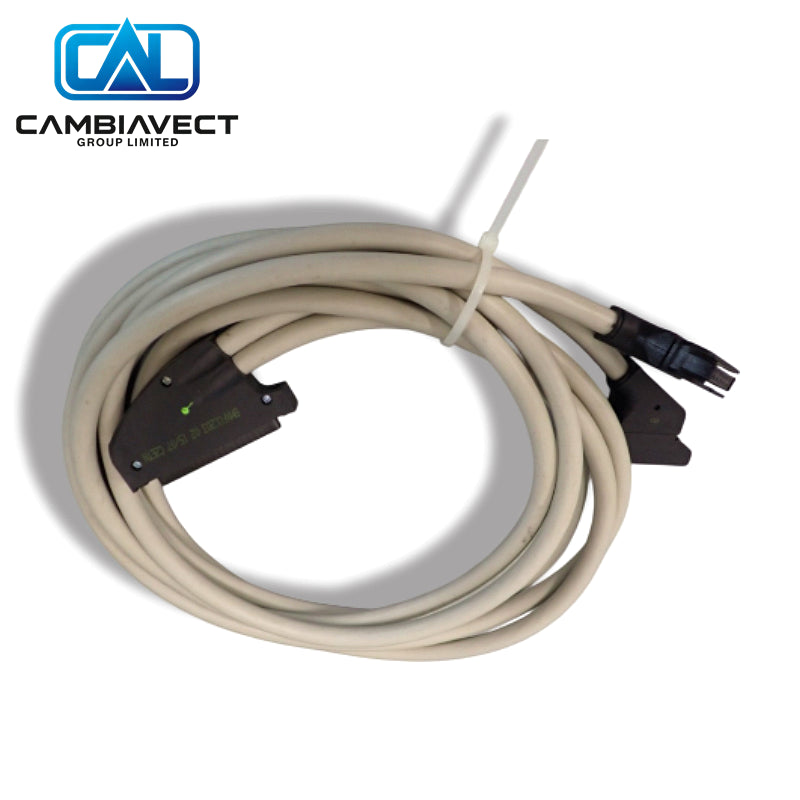

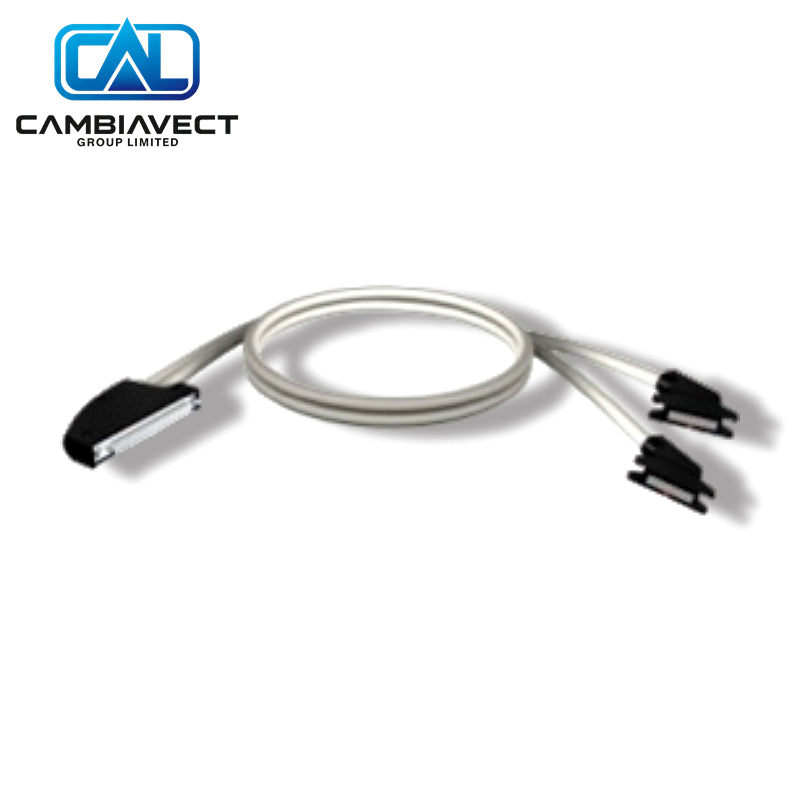

Schneider Electric BMXFCC503 is a 5 m preformed cord set for Modicon X80 / M340 I/O modules. It provides a 40-pin connector to dual HE-10 connectors for connection to ABE7 Telefast or similar remote terminal interfaces.
Key Specs
- Type: Pre-assembled cord set
- Length: 5 m
- Connectors: 1× 40-pin + 2× HE-10
- Wire: Approx. 0.324 mm² / 22 AWG
- Compatibility: 32- and 64-channel I/O modules with ABE7 Telefast
- Platform: Modicon X80 / M340
Why Choose This
- Prefabricated cable reduces wiring time and errors
- Direct interface to Telefast terminal blocks
- Suitable for high-density discrete I/O modules
- Standard length for typical cabinet-to-field runs
Common Questions
- Length? 5 m.
- Connectors? 40-pin to dual HE-10.
- Use? X80 high-density I/O to Telefast.
Mounting Steps
- Plug the 40-pin connector onto the I/O module.
- Connect the HE-10 ends to the Telefast or remote terminal blocks.
- Route and secure the cable with proper strain relief.
- Verify pin assignment against the module documentation.
- Power up and test channel continuity.
Buying Advice
- Confirm module channel count (32/64) and Telefast compatibility.
- Select 5 m length for the required cabinet distance.
- Useful accessory for X80 high-density discrete I/O installations.
