3BHT300057R1 | ABB DP640 Rotational Speed Meter Module
In stock, ready to ship
Manufacturer: ABB
Product No.: DP640
Product Type: Rotational Speed
Product Origin: Japan
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

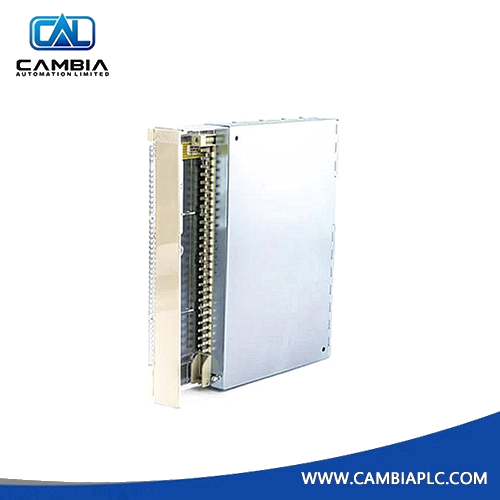

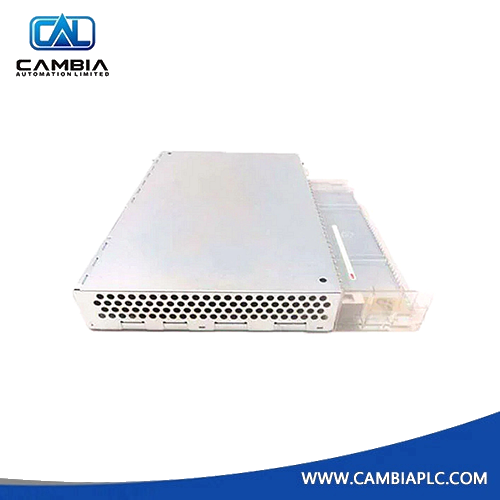

ABB DP640
Rotational Speed Measurement Module for Advant Controller
Product Description
The DP640 is a high-precision rotational speed measurement module designed for integration with ABB’s Advant Controller 110–160 series. Belonging to the S600 I/O family, it is used to monitor the speed and direction of rotating equipment, featuring built-in overspeed protection logic and opto-isolated signal interfaces.
- Model: DP640
- ABB Part Number: 3BHT300057R1
- Product Type: Rotational Speed Meter Module
- Series: S600 I/O
Technical Specifications
| Attribute | Specification |
|---|---|
| Input Type | S600 I/O speed meter input |
| Max Input Frequency | 50 kHz |
| Input Current Range | ±13 mA |
| Input Voltage Range | 24 VDC or 5 VDC |
| Direction Detection | Via second speed meter input |
| Overspeed Trip Logic | Solid-state output (24 VDC) and dry contact (60 VDC) |
| Isolation | Opto-isolated inputs and outputs |
| Number of Input Channels | 2 (Digital Input) |
| Dimensions (W × H × D) | 40 × 273 × 252 mm |
| Weight | 1.33 kg |
| Mounting | Horizontal (Bailey card family) |
| Operating Temperature | –25°C to +70°C |
| RoHS Compliance | Exempt (per EU Directive 2011/65/EU) |
| WEEE Category | Category 5 (Small Equipment) |
Features
- Measures rotational speed with high accuracy across a wide frequency range
- Detects direction of rotation using dual input channels
- Integrated overspeed protection logic with dual output signaling
- Opto-isolated inputs and outputs for enhanced signal integrity
- Compatible with ABB Advant Master Process Control System
- Robust design for harsh industrial environments
