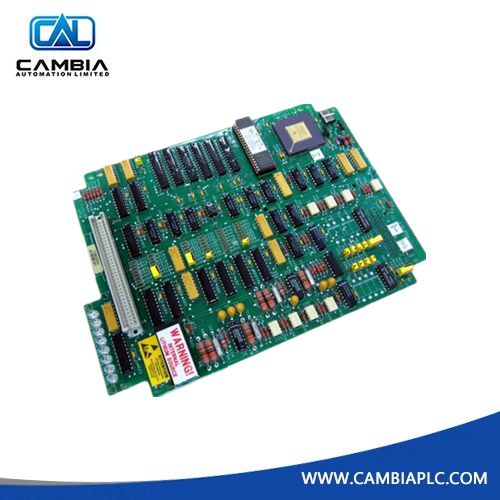

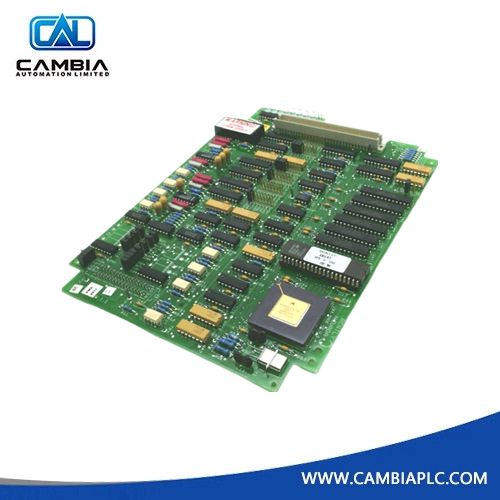

3500/93 System Display Motherboard 87870-01 Bently Nevada
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 87870-01
Product Type: Display Motherboard
Product Origin: USA
Payment: T/T
Weight: 420g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description:
The 87870-01 is a high-precision circuit board assembly designed as the motherboard for the Bently Nevada 3500/93 System Display. Serving as the primary communication and power distribution hub, this component enables the real-time visualization of critical machinery parameters, such as vibration levels, thrust positions, and alarm statuses, directly at the rack location. It ensures seamless integration with the 3500/93 display module, providing a reliable link between the internal system backplane and user-facing display electronics.
Built for longevity in harsh industrial environments, the 87870-01 features gold-plated connectors to prevent oxidation, high-grade capacitors for stable power filtering, and robust EMI/RFI shielding. Its design is optimized to integrate directly into the 3500/93 faceplate assembly, ensuring clear and accurate display of machinery data even in challenging conditions.
Technical Specifications:
| Specification | Details |
|---|---|
| Part Number | 87870-01 |
| System Compatibility | Bently Nevada 3500 Series Machinery Protection System |
| Module Type | 3500/93 Display Interface Motherboard |
| Function | Backplane interface for LCD display |
| Mounting Location | Designed for 3500/93 Display Module assembly |
| Isolation | Integrated circuitry to prevent electrical noise |
| Communication | High-speed data link to the 3500 system bus |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Weight | 0.42 kg |
Hardware Features:
-
Specialized mounting standoffs ensure proper alignment with the rack faceplate.
-
Diagnostic test points for easy voltage and signal integrity checks.
-
Multilayer PCB design for excellent EMI/RFI shielding, ensuring clear display in high-interference environments.
Frequently Asked Questions:
Q: Does the 87870-01 require a separate power supply?
A: No, the 87870-01 draws its operational power directly from the 3500 system backplane once the display module is installed.
Q: Can this board be used for the 3500/94 VGA module?
A: No, the 87870-01 is specifically designed for the 3500/93 Faceplate Display. The 3500/94 uses a different communication architecture and motherboard assembly.
