Bently Nevada

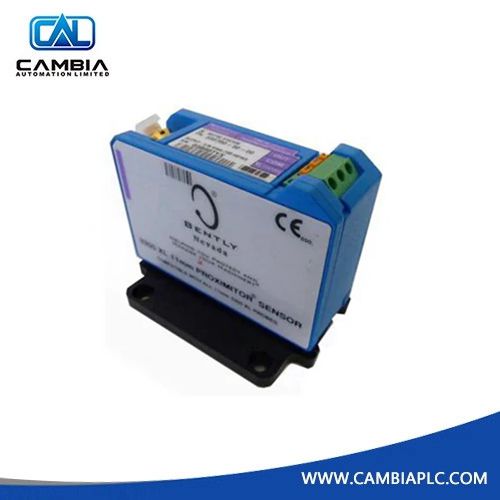

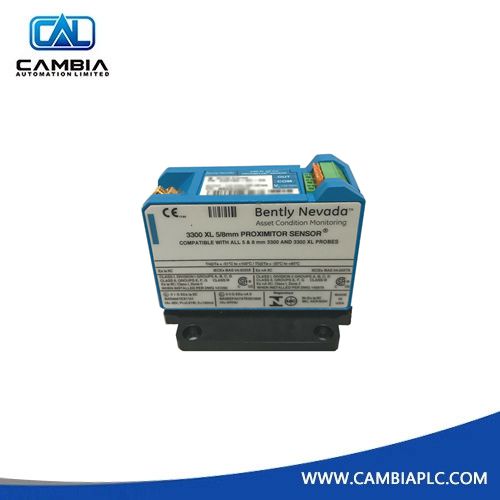

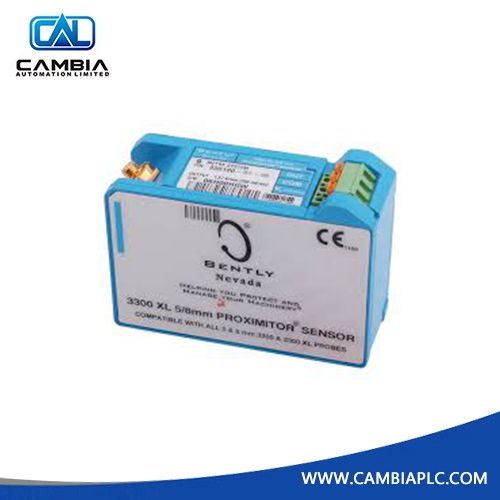

330180-90-CN Bently Nevada Proximity Sensor
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330180-90-CN
Product Type: Proximity Sensor
Product Origin: USA
Payment: T/T
Weight: 246g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The 330180-90-CN is a core component of the 3300 XL 8mm Proximity Transducer System. It converts eddy current signals from a proximity probe into a linear voltage signal proportional to the gap between the probe tip and the target (e.g., a rotating shaft).
The 3300 XL series provides enhanced RFI/EMI immunity and improved thermal stability over previous generations. The -CN designation indicates country-specific agency approvals (NEPSI/China), making this sensor essential for regulated industrial environments in China.
Detailed Specifications
| Feature | Specification |
|---|---|
| Product No. | 330180-90-CN |
| Product Type | 3300 XL Proximitor Sensor |
| Operating Temperature | -51 °C to +100 °C |
| Physical Weight | 0.246 kg |
Key Features and Benefits
-
Backward Compatibility: Fully interchangeable with older 3300 series 5mm and 8mm components, enabling upgrades without re-drilling panels.
-
Advanced RFI/EMI Immunity: Meets CE mark standards without specialized shielded conduit, reducing installation complexity.
-
Electrical Isolation: Integrated mounting base provides isolation from the panel, eliminating the need for separate isolator plates.
-
Interchangeability: No bench calibration required when swapping probes, cables, or sensors within the 3300 XL 8mm system.
-
Secure Connectors: ClickLoc™ gold-plated connectors lock with a tactile "click," preventing loosening from vibration.
Technical FAQ
Q1: What does the "90" in the part number signify?
A: The "90" indicates the total electrical length of the system (probe + extension cable). This sensor is calibrated for a 9.0 m system. Using a shorter cable will produce inaccurate readings.
Q2: Is the 330180-90-CN suitable for hazardous areas?
A: Yes. The -CN option certifies it for use in hazardous locations under Chinese NEPSI regulations. It is functionally identical to the standard version but carries the required legal markings for compliance.
