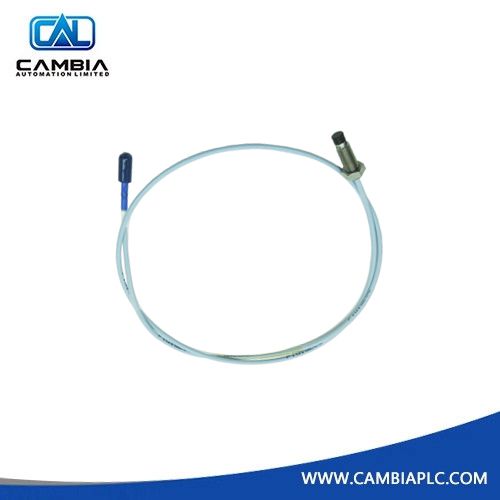

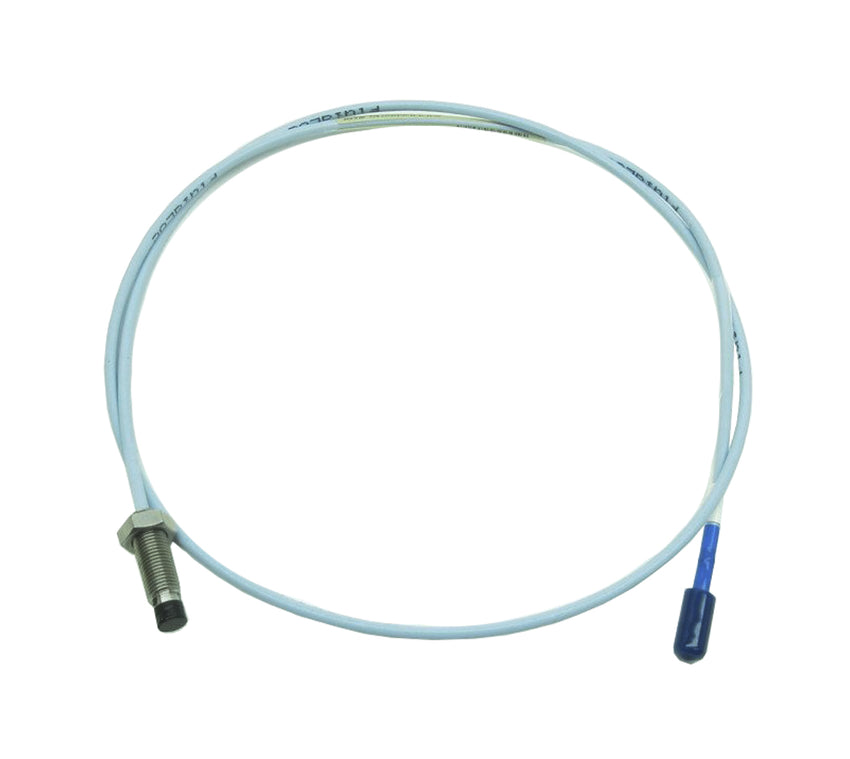

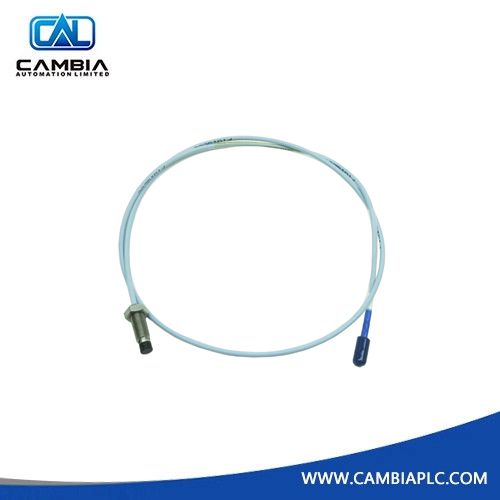

330101-00-18-10-02-00 Bently Nevada 3300 XL Proximity Probe
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330101-00-18-10-02-00
Product Type: 3300 XL 8 mm Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The 330101-00-18-10-02-00 is a high-precision eddy current transducer from the Bently Nevada 3300 XL series, engineered for non-contact vibration and displacement monitoring of rotating machinery. Its 8 mm probe tip provides a linear voltage output when paired with a compatible 3300 XL Proximitor, enabling accurate measurement of shaft vibration, axial position, and rotational speed.
This configuration features a 1.8-inch fully threaded 3/8-24 case, ideal for robust through-hole mounting, and includes a 1 m integrated coaxial cable terminated with a ClickLoc miniature connector. The ClickLoc design provides vibration-resistant locking and a sealed interface to prevent fluid ingress, ensuring reliable operation in harsh industrial environments. Manufactured in the USA, the probe meets stringent quality standards and can be supplied with a Certificate of Origin (COO) upon request.
Technical Specifications
| Feature | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Unthreaded Length | 0 in (Fully threaded) |
| Overall Case Length | 1.8 in (≈46 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector | ClickLoc miniature coaxial |
| Cable Type | Standard 75 Ω coaxial |
| Linear Range | 2.0 mm (80 mils), starting at 0.25 mm (10 mils) from tip |
| Scale Factor | 7.87 V/mm (200 mV/mil) with 3300 XL Proximitor |
| Target Material | AISI 4140 steel (standard calibration) |
| Operating Temperature | -51 °C to +177 °C |
| Shipping Weight | 0.7 kg |
Application Scenarios
-
Radial vibration monitoring of fluid-film bearings
-
Axial (thrust) position sensing on turbines, compressors, and industrial motors
-
Speed / tachometer measurement in high-speed rotating machinery
-
Commonly used in power generation, oil & gas, and industrial processing environments
FAQ
What makes the 3300 XL series superior to previous probes?
-
Enhanced thermal stability and linearity over a wider operating range.
-
Fully backward compatible with older 3300 systems.
-
Improved resistance to oil, moisture, and contaminants at the connector interface.
Can the 1 m cable be shortened?
-
No. The probe and cable are tuned to precise electrical characteristics (inductance and capacitance). Altering the cable length will change the calibration and scale factor. To use a different length, order the specific system total length (e.g., 5 m or 9 m).
