3300 XL 11mm Proximitor 330780-51-05 Bently Nevada
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330780-51-05
Product Type: Proximitor Sensor
Product Origin: USA
Payment: T/T
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

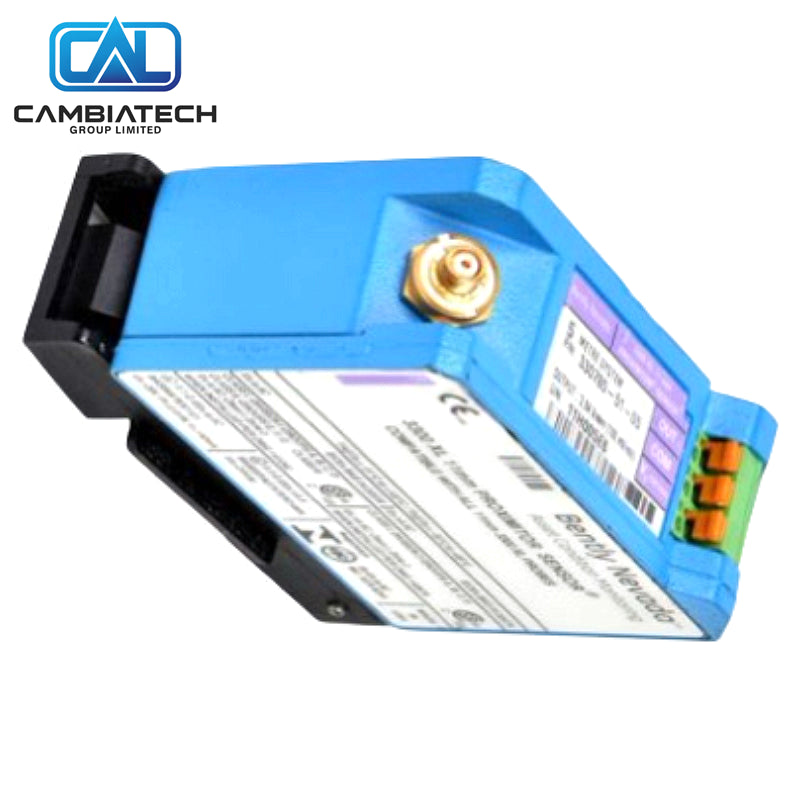

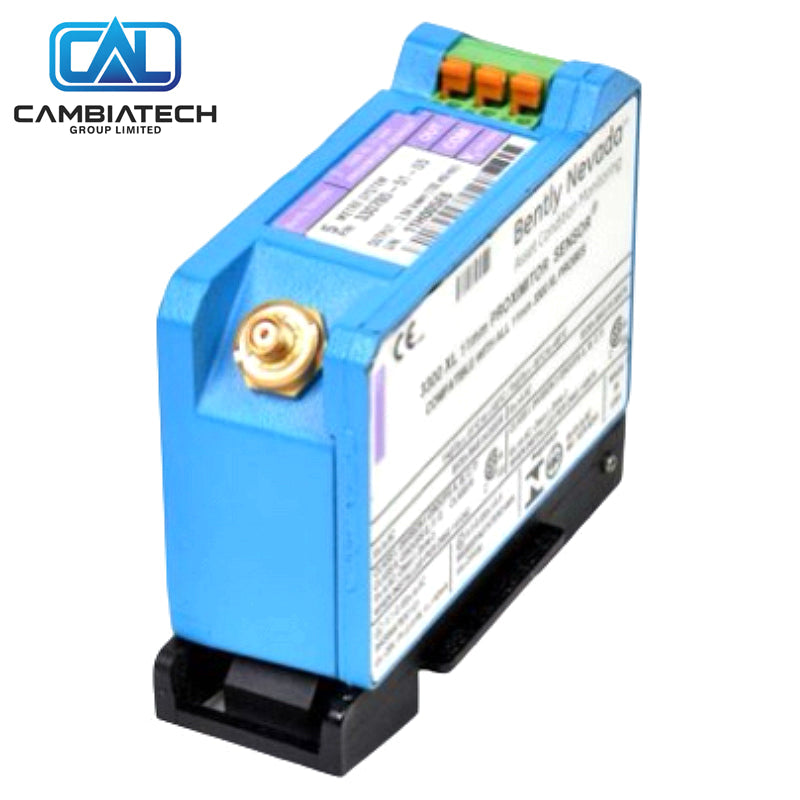

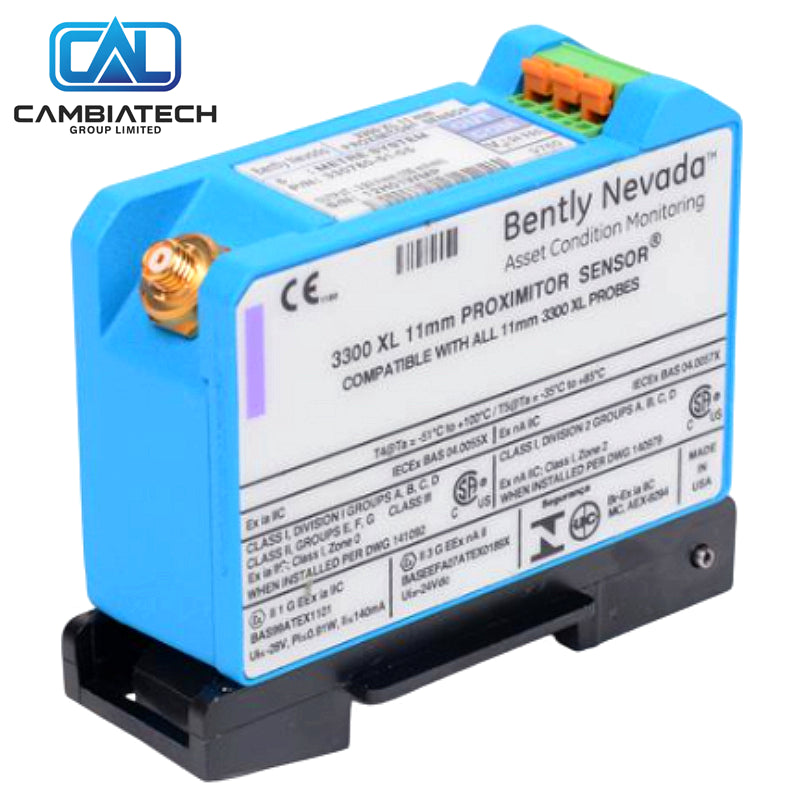

The Bently Nevada 330780-51-05 is a 3300 XL 11 mm Proximitor Sensor. It conditions the signal from a matching 11 mm proximity probe and extension cable for vibration and position monitoring on rotating machinery.
Key Specs
- Series: 3300 XL 11 mm
- System length: 5.0 m (16.4 ft)
- Mounting: DIN rail
- Agency approvals: Multiple (05)
- Output sensitivity: 3.94 V/mm (100 mV/mil) typical
- Operating temperature: -52 °C to +100 °C
Why Choose This
- Part of the proven 3300 XL proximity transducer family
- DIN-rail mounting for high-density installations
- Wide temperature range for industrial environments
- Compatible with 3500 monitoring systems
Common Questions
- Probe size? 11 mm.
- System length? 5.0 meters.
- Mounting? DIN rail.
Mounting Steps
- Mount the Proximitor on a DIN rail.
- Connect the matching 11 mm probe and extension cable.
- Apply power (-17.5 to -26 VDC typical).
- Verify gap voltage and linear range.
- Connect the output to the monitoring system.
Buying Advice
- Match system length to probe + extension cable total.
- Confirm agency approval requirements.
- Use with genuine 3300 XL 11 mm probes for accuracy.
