Honeywell
2MLP-ACF2 | Honeywell | AC Power Supply Module
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 2MLP-ACF2
Product Type: Power Supply
Product Origin: France
Payment: T/T
Weight: 380g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

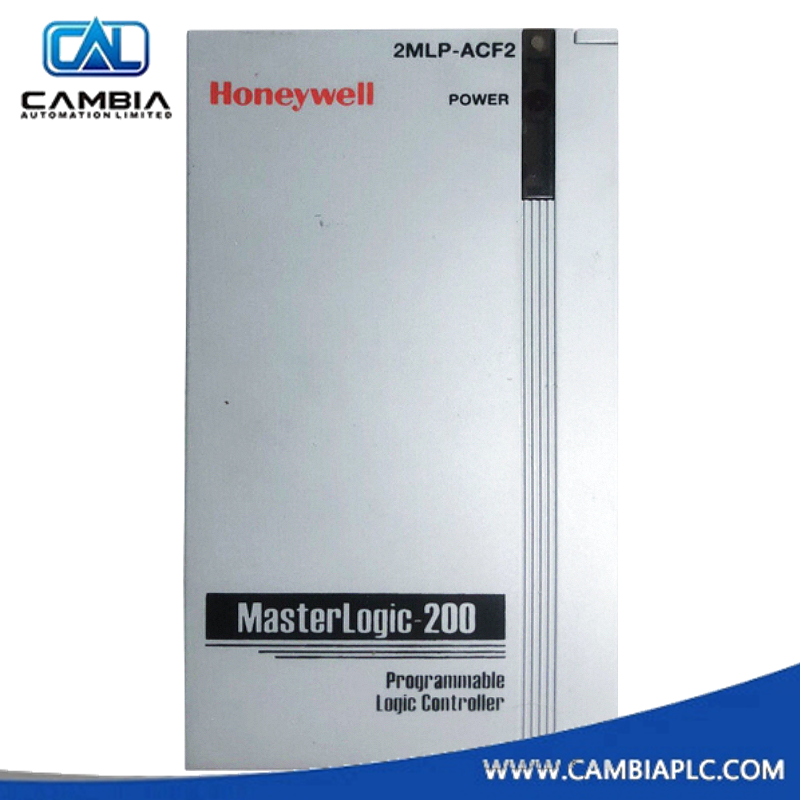

Honeywell 2MLP-ACF2
AC Power Supply Module for MasterLogic-200 PLC
Product Description
The Honeywell 2MLP-ACF2 is a free-voltage AC power supply module designed for the MasterLogic-200 PLC system. It delivers stable DC output for CPUs and I/O modules, supporting high-reliability operation in industrial automation environments. With wide input voltage tolerance and built-in protection features, it ensures consistent performance across global installations.
- Manufacturer: Honeywell
- Catalog Number: 2MLP-ACF2
- Type: AC Power Supply Module
- Series: MasterLogic-200
- Certifications: UL, CE
Technical Specifications
| Attribute | Specification |
|---|---|
| Input Voltage Range | AC 85V – 264V (Rated: 100V–240V) |
| Input Frequency | 47–63 Hz |
| Output Voltage | DC 5V ±2% |
| Output Current | 6.0 A |
| Efficiency | ≥60% |
| Inrush Current | ≤80 A peak |
| Overcurrent Protection | ≥6.6 A |
| Overvoltage Protection | 5.5V – 6.5V |
| Relay Output | 24 VDC @ 0.5 A (RUN contact) |
| Relay Minimum Load | 5 VDC @ 1 mA |
| Response Time | ≤10 ms ON / ≤12 ms OFF |
| LED Indicator | ON when output voltage is normal |
| Cable Specification | 0.75 – 2 mm² |
| Terminal Type | RAV1.25-3.5, RAV2-3.5 |
| Dimensions (W × H × D) | 5.5 × 9.5 × 9.0 cm |
| Weight | 0.38 kg |
| Mounting | DIN rail or panel |
Features
- Wide-range AC input for global compatibility
- Stable 5V DC output for powering control modules
- Built-in protection against overcurrent and overvoltage
- Relay output for system status signaling
- LED voltage indicator for quick diagnostics
- Compact design for space-constrained panels
- Compatible with MasterLogic-200 PLC architecture
- Ideal for industrial automation, DCS, and control systems
